SKU: HIK-PCI-B14Z2HS
MPN: PCI-B14Z2HS
UPC: 842571143027

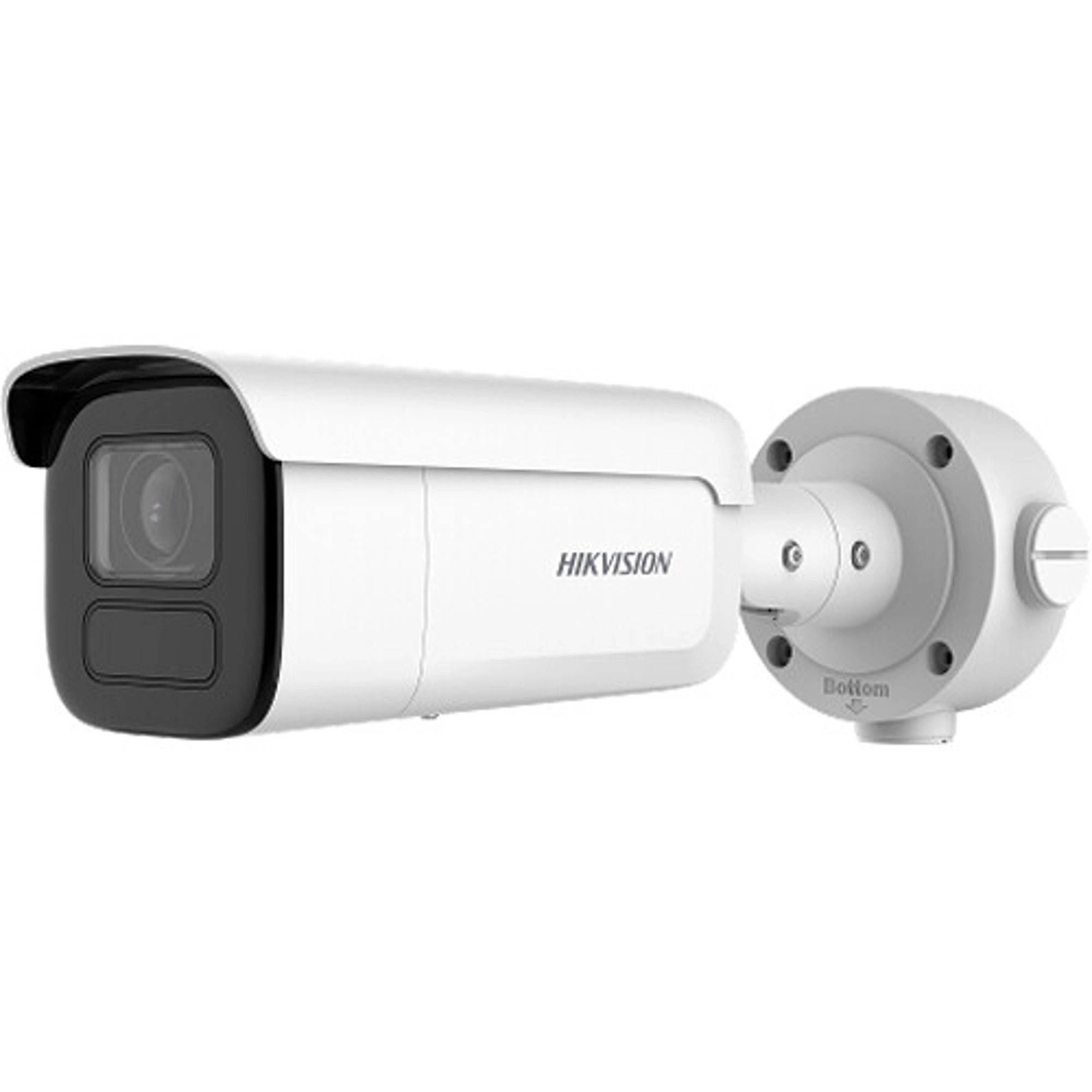

AcuSense Outdoor Varifocal Bullet, 4MP, H265+, 2.8-12mm, F1.6, Day/Night, False alarm reduction by target classification, 140dB WDR, EXIR 2.0 (60m), IP67,IK10, PoE/12VDC, Built In Micro SD Card Slot up to 256GB, Anti-Corrosion-NEMA 4X
Send to a friend!
| Image Sensor | 1/1.8″-Type CMOS |
| Focal Length | 2.8 to 12mm |
| Field of View | Horizontal: 107 to 40°Vertical: 56 to 22°Diagonal: 130 to 46° |
| Pan/Tilt | No |
| Power I/O | 1x Barrel1x DC1x RJ45 |
| Number of Lenses | 1 |
| Image Sensor | 1/1.8″-Type CMOS |
| Sensor Resolution | Effective: 4 Megapixel |
| IR Cut Filter | Yes Mechanical |
| Day/Night | Yes |
| Minimum Illumination | 0.0014 Lux (Color)0 Lux (Black and White) |
| Focal Length | 2.8 to 12mm |
| Optical Zoom Ratio | 4.3x |
| Field of View | Horizontal: 107 to 40°Vertical: 56 to 22°Diagonal: 130 to 46° |
| Maximum Aperture | f/1.4 |
| Automatic Gain Control | Yes |
| Max IP Streaming | via RJ452688 x 1520 up to 30.00 fps |
| Multi-View Streaming | Yes, 4 Streams |
| Pan/Tilt | No |
| Supported Control Protocols | Pelco-DPelco-PRS-485HIKVISION-C |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, ISAPI, SDK, ISUP |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Other I/O | 1x RJ451x DE-9/DB-9 (RS-485, Serial) |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| External Storage Options | NAS |
| Analytics | Motion Detection, People Detection, Vehicle Detection, Camera Sabotage/Tampering, Virtual-Line Crossing Detection, Intrusion Detection, Entering/Exiting, Scene Change Detection, Abandoned Object, Object Removal, Audio Detection, Face Detection |
| Built-In Installation Aids | Pixel Counter |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Alarm I/O | 3 / 3 |
| Power I/O | 1x Barrel1x DC1x RJ45 |
| Power Consumption | Power Supply: 13 WPoE: 15 W |
| Material of Construction | Aluminum |
| Environmental Resistance | No |
| Impact Resistance | Impact-Resistant (IK10) |
| Operating Conditions | -40 to 140°F / -40 to 60°Cup to 95% Humidity |
| Startup Temperature | -40 to 140°F / -40 to 60°C |
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Supported Languages | Brazilian PortugueseBulgarianCroatianCzechDanishDutchEnglishEstonianFinnishFrenchGermanGreekHungarianItalianJapaneseKoreanLatvianLithuanianNorwegianPolishPortugueseRomanianRussianSerbianSlovakSlovenianSpanishSwedishThaiTraditional ChineseTurkishUkrainianVietnamese |
| OS Compatibility | Android/iOS |
| Mobile App Compatible | Yes: Android & iOS |
| Dimensions (W x H x D) | 4.1 x 12.9″ / 105 x 328mm |
| Weight | 2.9lb / 1330g (Body Only) |
| Package Weight | 4.625 lb |
| Box Dimensions (LxWxH) | 15.4 x 8.5 x 7.1″ |
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. The camera’s aluminum enclosure is IP67, NEMA 4X, and IK10 rated for safe outdoor use in areas at risk of vandalism.
Hikvision
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. The camera’s aluminum enclosure is IP67, NEMA 4X, and IK10 rated for safe outdoor use in areas at risk of vandalism.
