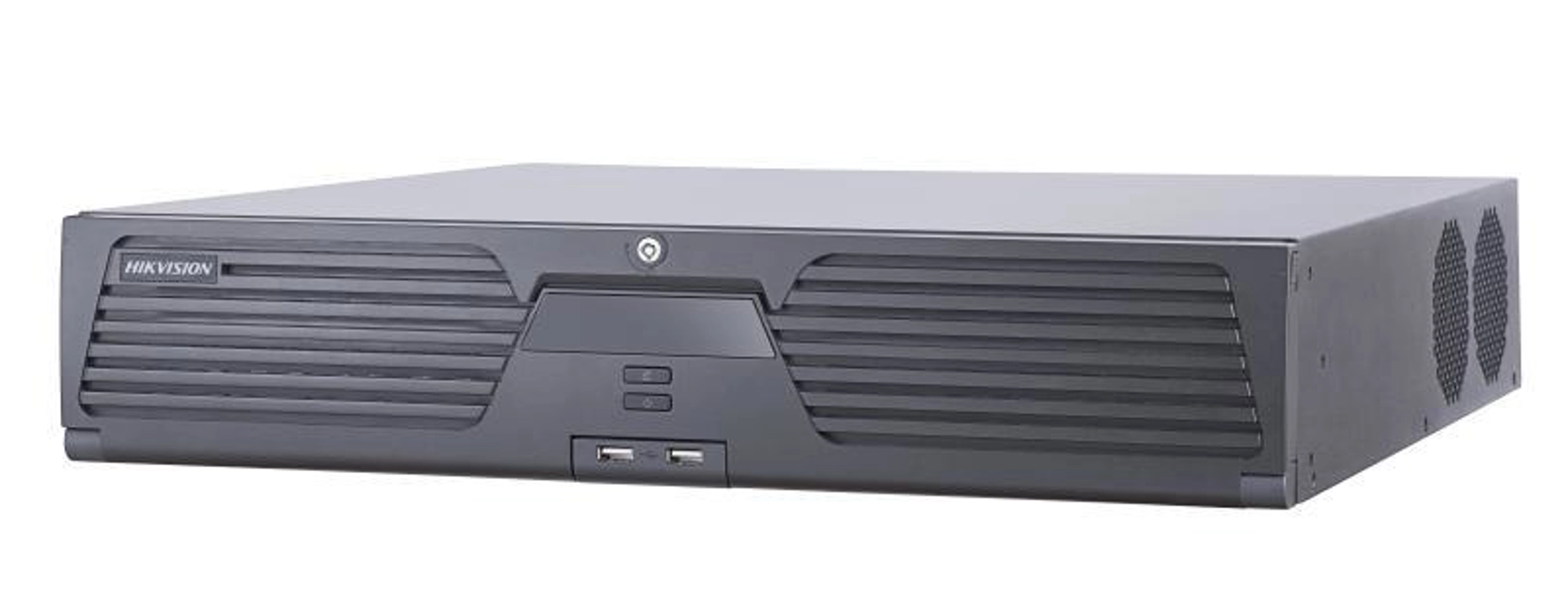

Hikvision iDS-9632NXI-I8/X(B)

Facial Recognition Facial Detection and Analytics 8-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) ;Search by picture is supported Face Picture Library 32 libraries100, 000 pictures Face Picture Comparison 16-ch face pictures comparison alarm, Alarm linkage actions: recording, audio warning, notify surveillance center, send email Perimeter Protection Human/Vehicle Analysis Up to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Video and Audio IP Video Input 32-ch HDMI 1 Output VGA1: 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz HDMI1: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz HDMI 2 Output 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz Incoming Bandwidth 320 Mbps/256 Mbps;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF Incoming Bandwidth (RAID Mode) 200 Mbps/200 Mbps Audio Output 2-ch, RCA (Linear, 1 KO) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k O) Decoding Decoding Format H.265/H.265+/H.264/H.264+/MPEG4 Decoding Capability 16-ch @ 1080p Synchronous playback 16-ch Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF Network Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface SATA 8 SATA interfaces eSATA 1 eSATA interface Capacity Up to 10 TB capacity for each HDD Serial Interface RS-232; RS-485; Keyboard USB Interface Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 Alarm In/Out 16/4 (16/8 is optional) General Power Supply = 200 W;100 to 240 VAC, 50 to 60 Hz Consumption = 70 W Working Temperature -10 to +55° C (+14 to +131° F) Working Humidity 10 to 90% Dimension (W D H) 445 465 88 mm (17.5″ 18.3″ 3.5″) Weight = 10 kg (22 lb)

Profession and Reliability H.265+ compression effectively reduces the storage space by up to 75% Dual-stream recording saves bandwidth Adopt stream over TLS encryption technology which provides more secure stream transmission service Support double verification for playback and downloading ANR (Automatic Network Replenishment) technology ensures network camera video storage reliability HD Video Output Provide independent HDMI and VGA outputs HDMI video output at up to 8K resolution or dual 4K resolution Storage and Playback Up to 8 SATA interfaces for HDD connection Up to 16-ch synchronous playback Smart & POS Function Support multiple VCA (Video Content Analytics) events Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR (Automatic Number-Plate Recognition), and people counting POS information overlay on live view and playback, and POS triggered recording and alarm

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16- ch@4 MP/32-ch@1080p decoding capacity H.265+/H.265/H.264+/H.264 video formats Up to 32-ch IP cameras can be connected Intelligent analytics based on deep learning algorithm Up to 24-ch perimeter protection Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture Up to 12-ch video structuralization

H.265+/H.265/H.264+/H.264 video formats Up to 32 channel IP cameras can be connected 8 HDD can be used for continuous video recording Intelligent analytics based on deep learning algorithm Up to 16-ch perimeter protection Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture Up to 4-ch video structuralization Up to 16-ch 1080p decoding capability
