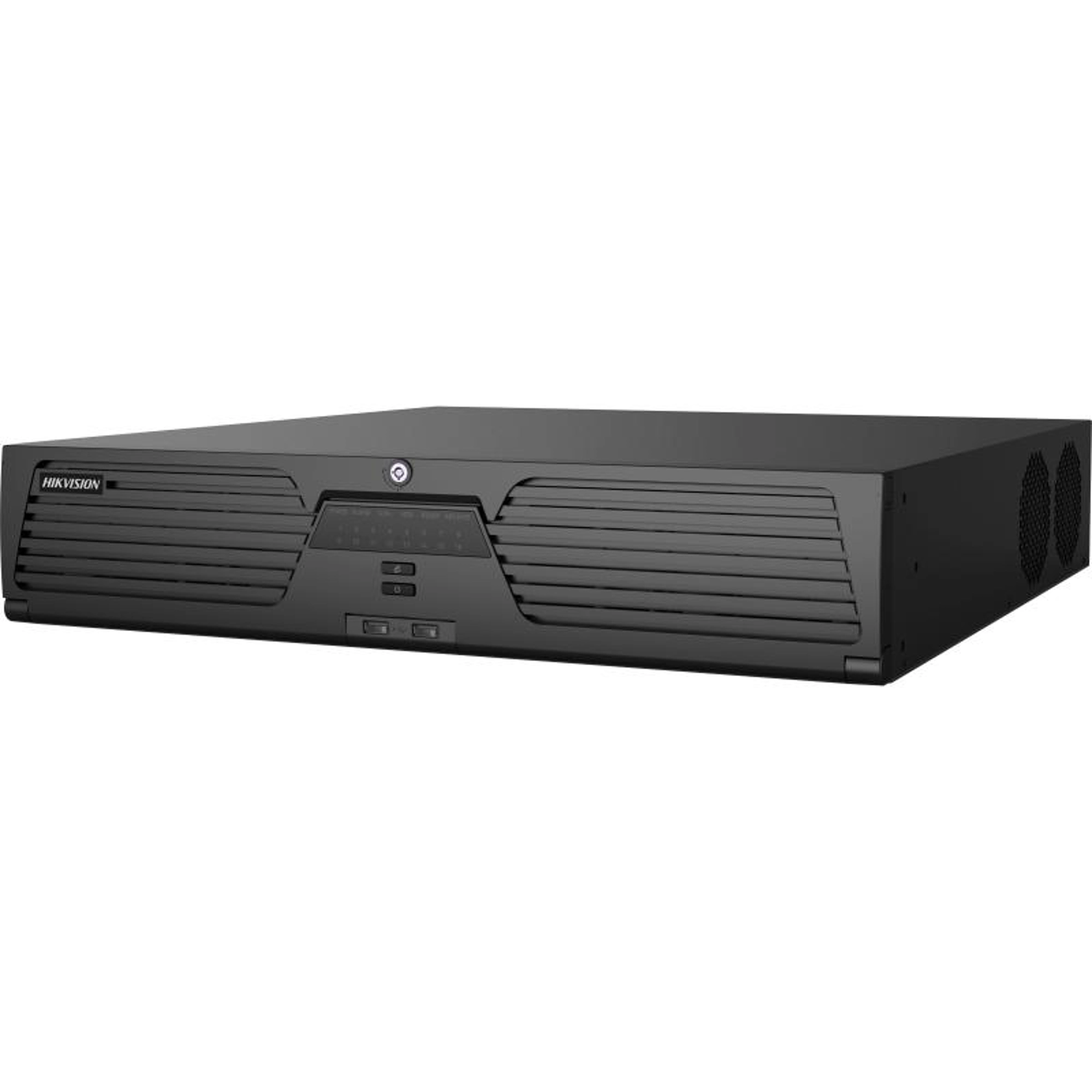

Hikvision iDS-9632NXI-I8/4F

Facial Recognition Facial Detection and Analytics Face picture comparison, human face capture, face picture search Face Picture Library Up to 32 face picture libraries, with up to 100,000 face pictures in total (each picture = 4 MB, total capacity = 20 GB) Facial Detection and Analytics Performance 8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265) Face Picture Comparison 16-ch face picture comparison alarm Perimeter Protection Human/Vehicle Analysis Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Video Structuralization Structured Analysis Up to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis Face Picture Library Up to 32 face picture libraries, with up to 100,000 face pictures in total Face Picture Comparison 8-ch face picture comparison alarm Video and Audio IP Video Input 32-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Incoming Bandwidth 320 Mbps Outgoing Bandwidth 256 Mbps Incoming Bandwidth (RAID Mode) 200 Mbps Outgoing Bandwidth (RAID mode) 200 Mbps HDMI 1 Output 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz HDMI 2 Output 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA 1 Output 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA 2 Output 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz Video Output Mode HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output CVBS Output N/A Audio Output 2-ch, RCA (Linear, 1 KO) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k O) Decoding Decoding Format H.265/H.265+/H.264/H.264+/MPEG4 Decoding Capability 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps) Synchronous playback 16-ch Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Stream Type Video, Video & Audio Dual-stream Support Audio Compression G.711ulaw/G.711alaw/G.722/G.726/MP2L2 Network Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Remote Connection 128 Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface SATA 8 SATA interfaces eSATA 1 eSATA interface Capacity Up to 10 TB capacity for each HDD Serial Interface RS-232; RS-485; Keyboard USB Interface Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0 Alarm In/Out 16/8 General Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption = 70 W Working Temperature -10 to +55° C (+14 to +131° F) Working Humidity 10 to 90% Dimension (W D H) 445 465 92 mm (17.5″ 18.3″ 3.6″) Weight = 10 kg (22 lb) Certification Obtained Certification CE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA FCC Part 15 Subpart B, ANSI C63.4 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4EN 55035:2017

H.265+/H.265/H.264+/H.264 video formats Intelligent analytics based on deep learning algorithm Up to 16-ch perimeter protection Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture Up to 8-ch video structuralization Up to 8-ch throwing objects from building Up to 16/32/64-ch IP cameras can be connected Up to 16-ch 1080p decoding capability

Professional and Reliability H.265+ compression effectively reduces the storage space by up to 75% Dual-stream recording saves bandwidth Adopt stream over TLS encryption technology which provides more secure stream transmission service Support double verification for playback and downloading HD Video Output Provide independent HDMI and VGA outputs HDMI video output at up to 4K resolution Storage and Playback Up to 8 SATA interfaces for HDD connection Up to 16-ch synchronous playback Smart & POS Function Support multiple VCA (Video Content Analytics) events Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR (Automatic Number-Plate Recognition), and people counting POS information overlay on live view and playback, and POS triggered recording and alarm

H.265+/H.265/H.264+/H.264 video formats Intelligent analytics based on deep learning algorithm Up to 16-ch perimeter protection Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture Up to 8-ch video structuralization Up to 32-ch IP cameras can be connected Up to 16-ch 1080p decoding capability
