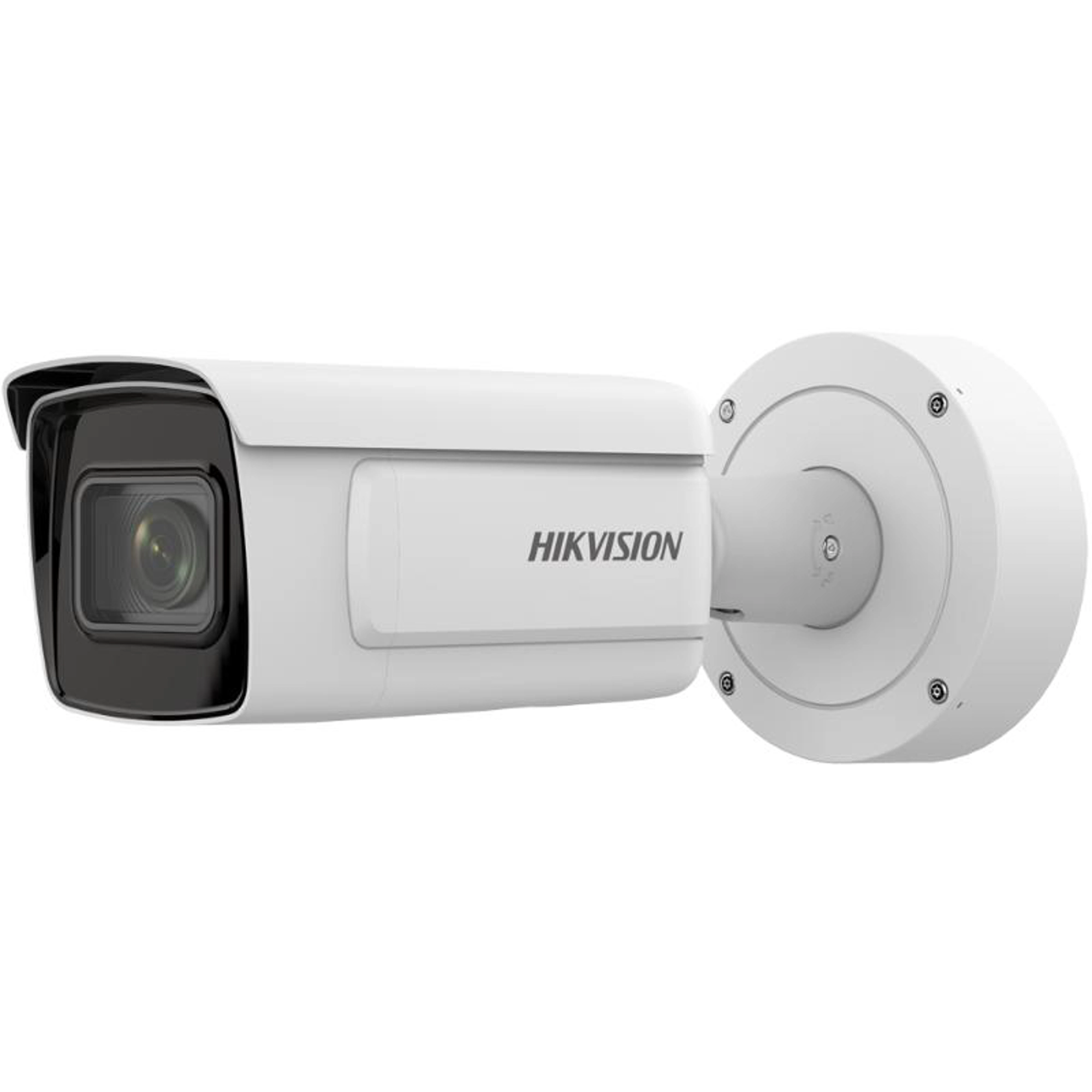

Hikvision iDS-2CD7A46G0/P-IZHSY8

Image Sensor
1/1.8″ Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter

Blue glass module to reduce ghost phenomenon

Lens
Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

Focus
Auto,Semi-auto,Manual
Iris Type
P-iris
Aperture
2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

DORI
DORI
Wide:

2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

Tele:

2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

Illuminator
Supplement Light Type
IR
Supplement Light Range
2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz:

25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for each stream
Target Cropping
Yes
e-PTZ
Support Patrol and Auto Tracking settings
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Wide Dynamic Range (WDR)
140 dB
SNR
= 52 dB
Image Enhancement
BLC,HLC,3D DNR,Distortion Correction,Defog
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization
EIS
Privacy Mask
8 programmable polygon privacy masks
Interface
Video Output
1 Vp-p Composite Output (75 O/CVBS) (Only for debugging)
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio
With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm
2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485
With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Power Output
With -Y: 12 VDC, max. 100 mA
Wiegand
-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
Smart Event
scene change detection,audio exception detection,defocus detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Support combined event alarm triggering

Road Traffic and Vehicle Detection
Smart Function:

Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.

Support vehicle and non-vehicle counting

Blocklist and allowlist: up to 10,000 records

LPR Countries/Regions:

4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions

Accuracy (Under recommended installation and lighting conditions):

License plate recognition rate =98%

Capture rate =99%

Driving direction accuracy rate =98%

Vehicle Capture Speed:

Front installation in checkpoint scenario: up to 120 km/h

Side installation: up to 80 km/h

Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Metadata
Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
Parking Management
Support distant view mode and close view mode

Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

General
Power
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

Material
Aluminum alloy body
Dimension
Without -Y: Ø144 mm × 347 mm (Ø5.7″ × 13.7″)

With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8″)”

Package Dimension
405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight
Approx. 1950 g (4.2 lb.)
With Package Weight
Approx. 3070 g (6.7 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel

Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design
principle and has adopted many methods of security technologies into our product development lifecycle, including terminal
security, data security, application security, network security, and privacy protection. In the meantime, the security
technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security
measures could enhance product’s cyber security protection capability and protect your devices as well as your data from
malicious cyber attacks.

Function
Face Counting
With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and samples
the face features simultaneously, and compares them with the built-in face library, so to remove the duplicated person. It
counts persons and reports a face alarm simultaneously to achieve both the entrance control and people counting.
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether
the person is wearing a hard hat, and captures the head of the person and reports an alarm if not.
Multi-Target-Type Detection
With the embedded deep learning algorithms, the camera detects and captures the face and human body in the specified
region. It supports a structurized modeling of the face and human body to achieve a structurized data collection.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each
person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party
application development.
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor
network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are
automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera
transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because
of the packet loss and error rate.
Anti-Corrosion Coating(-Y)
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat
(Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion
performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anticorrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
