Hikvision ECI-D14F4

SKU: HIK-ECI-D14F4

MPN: ECI-D14F4

UPC: 842571119534

Description

Outdoor Dome, 4MP, H264+, 4mm, Day/Night, DWDR, IR up to 30m, IP67/IK10, PoE/12VDC

Send to a friend!

SKU	ECI-D14F4
Manufacturer	Hikvision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	61~100 Feet
Resolution	4 Megapixel
Lens Type	Fixed
Lens Size	4mm
Compression Method	H.264
Dimensions (W x H)	4.4″ x 3.2″ (111 mm x 82.4 mm)
Electronic Shutter	1/3 s to 1/100, 000 s
Image Device	1/3″ (4 MP) progressive scan CMOS
IR Wavelength	850 nm
Minimum Scene Illumination	Color: 0.15 lux @ (ƒ/2.0, AGC on); B/W: 0.03 lux @ (ƒ/2.0, AGC on), 0 lux with IR
Operating Humidity	95% or less (non-condensing)
Operating Temperature	-22° to 140° F (-30° to 60° C)
Power Consumption	12 VDC, 0.45 A, maximum: 5.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, maximum: 7 W
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour
Weatherproof	IP67
Digital Noise Reduction	3D DNR
Angle of View	Horizontal FOV 77°, vertical FOV 42°, diagonal FOV: 90°
IR Distance	30m/100ft
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes

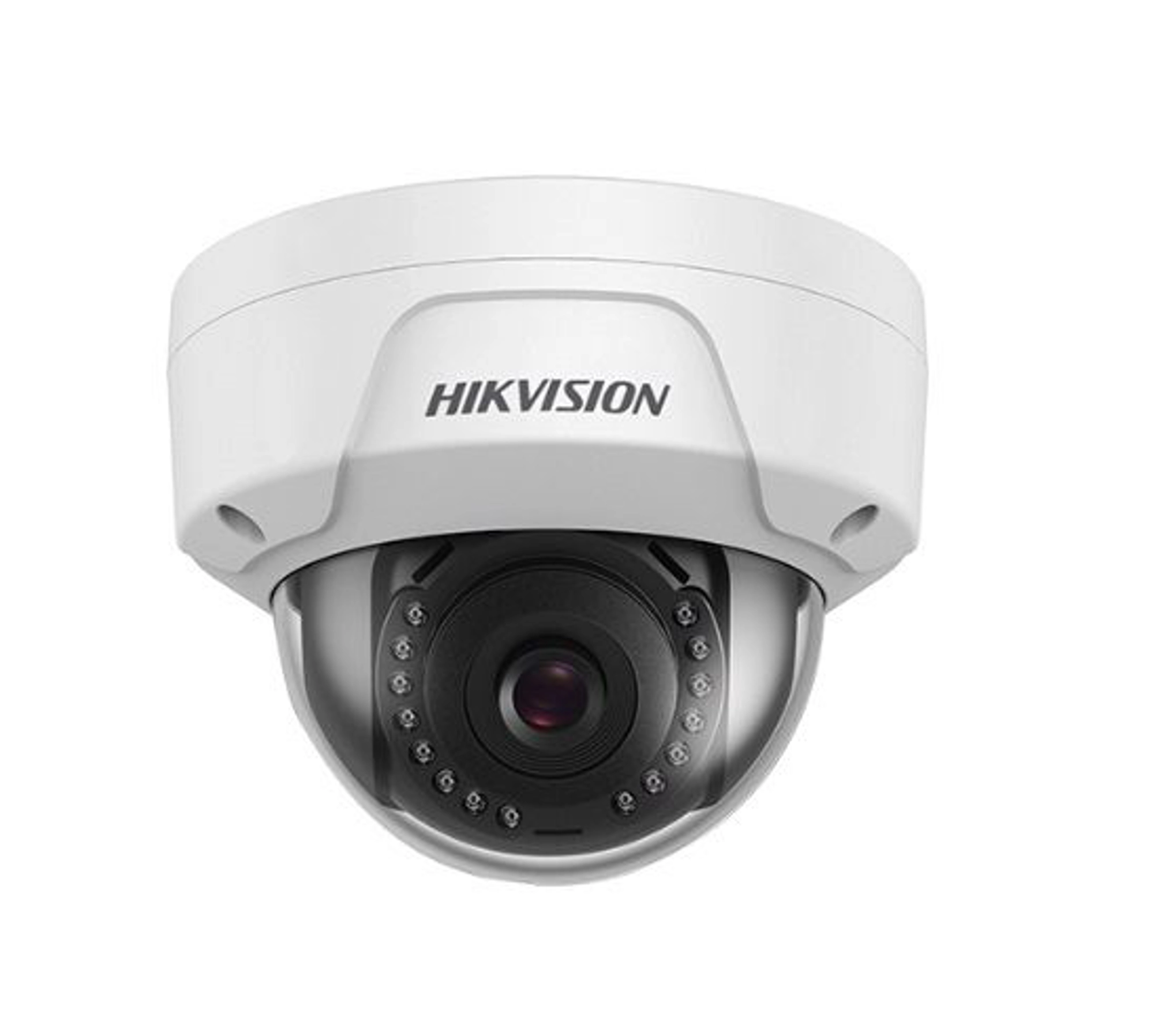

4 Megapixel Outdoor IR Network Dome Camera

The ECI-D14F4 from Hikvision is an outdoor IR dome camera which provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage. EXIR 2.0 technology allows for viewing up to a range of 100 feet (30 meters).


1/3″ (4 MP) Progressive Scan CMOS	2-Axis Positioning: Pan and Tilt
Up to 2560 x 1440 Resolution	IP67, IK10 Protection
Up to 100 ft (30 m) EXIR 2.0 Range	Durable Metal Housing
H.265+/H.265/H.264+/H.264/MJPEG	12 VDC ±25% (PoE IEEE802.3af), Max. 7 W
120 dB True WDR Produces Clearer Image
