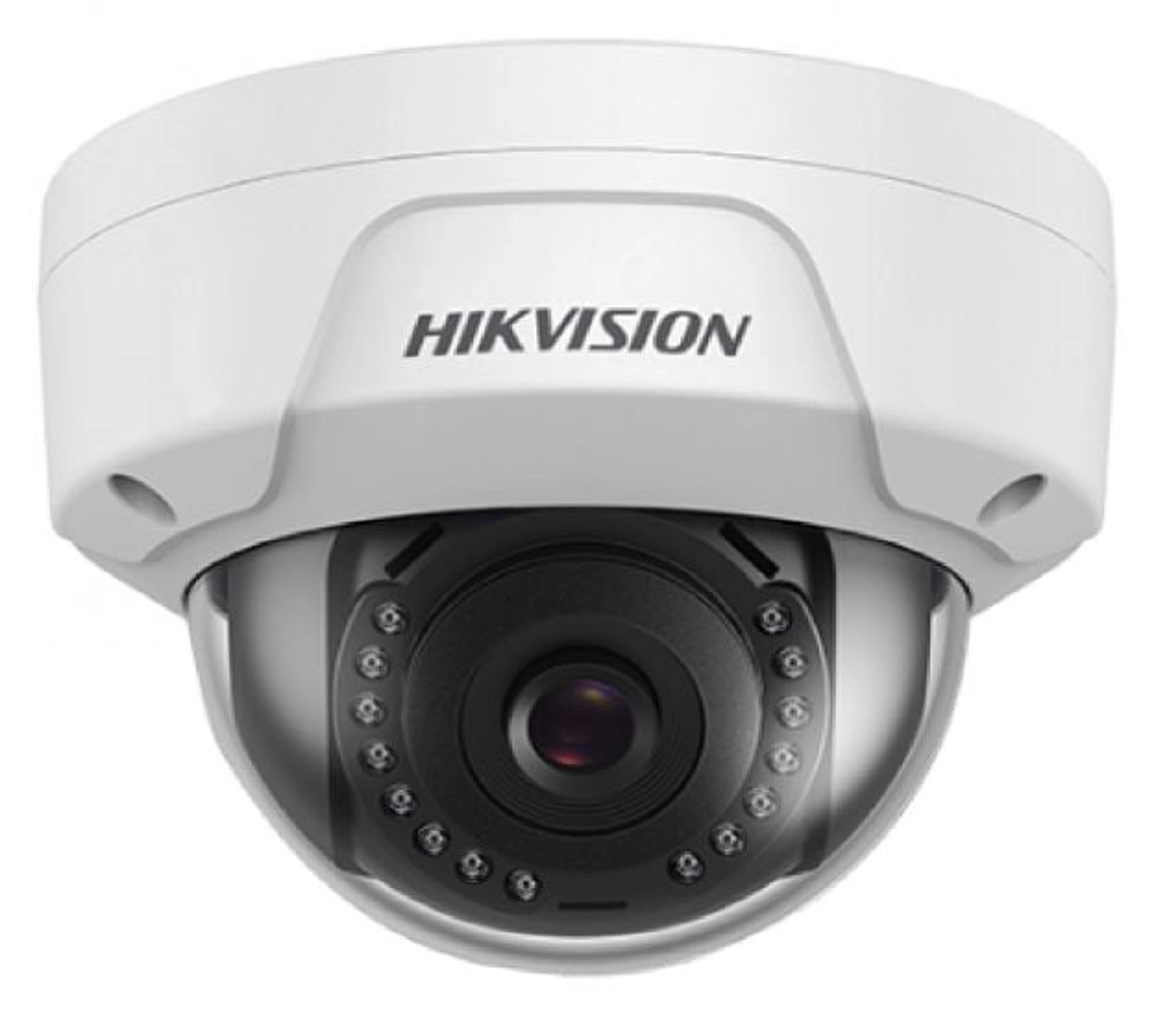

Hikvision ECI-D12F4
SKU: HIK-ECI-D12F4
MPN: ECI-D12F4
UPC: 842571115819
Description
Outdoor Dome, 2MP/1080p, H264+, 4mm, Day/Night, DWDR, IR up to 30m, IP67/IK10, PoE/12VDC
Send to a friend!
SKU: HIK-ECI-D12F4
MPN: ECI-D12F4
UPC: 842571115819
Outdoor Dome, 2MP/1080p, H264+, 4mm, Day/Night, DWDR, IR up to 30m, IP67/IK10, PoE/12VDC
Send to a friend!
| SKU | ECI-D12F4 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.264+ |
| Durability | Vandal Resistant, Weather Resistant |
| Dimensions (W x H) | 4.4″ x 3.2″ (111 mm x 82.4 mm) |
| Electronic Shutter | 1/3 s to 1/100, 000 s |
| Image Device | 1/2.8″ (2 MP) progressive scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.028 lux @ (ƒ/2.0, AGC on) |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22° to 122° F (-30° to 50° C) |
| Power Consumption | 12 VDC, 0.4 A, maximum: 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, maximum: 7 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° |
| IR Distance | 30m/98.42ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| 1/2.8″ (2 MP) Progressive Scan CMOS | IP67, IK10 Protection |
| Up to 1920 x 1080 Resolution | 2-Axis Positioning: Pan and Tilt |
| Up to 100 ft (30 m) EXIR 2.0 Range | Durable Metal Housing |
| H.265+/H.265/H.264+/H.264/MJPEG | 12 VDC ±25% (PoE IEEE802.3af), Max. 5 W |
