Home / Shop All / Security / Access Control / Hikvision DS-KH9510-WTE1

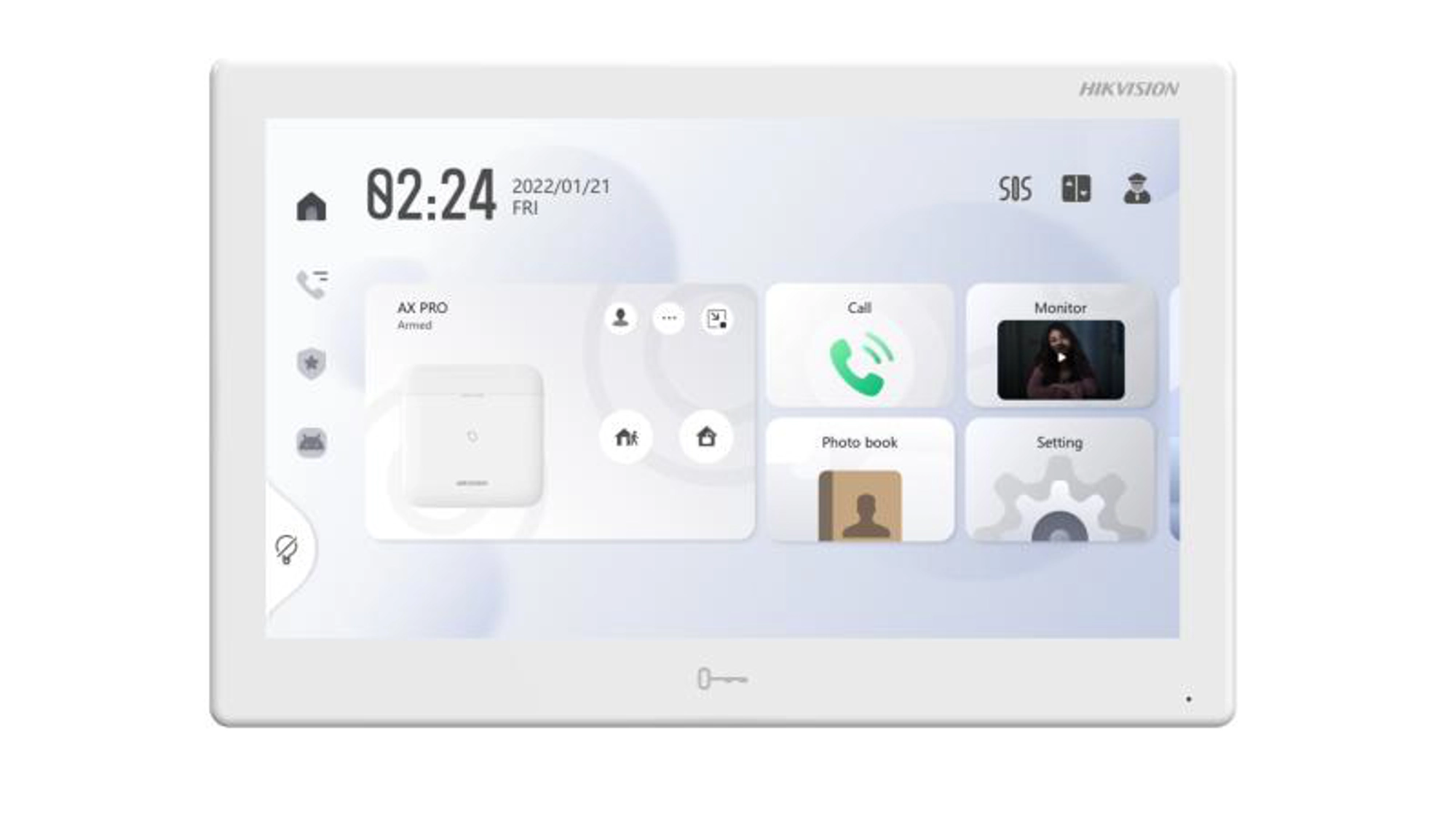

Hikvision DS-KH9510-WTE1

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: HIK-DS-KH9510-WTE1

MPN: DS-KH9510-WTE1

UPC: 842571136593

Description

2nd gen video intercom indoor station, 10" touchscreen, 1024×600 display resolution, Android OS, standard PoE/12VDC, SD card, 8-ch alarm inputs, 2-ch alarm outputs

Add to Wishlist

Send to a friend!

Operation methodCapacitive touch screen
TypeColorful IPS
Resolution1024 600
Video parameters
Lens/
Resolution/
FOV/
Wide dynamic range (WDR)/
Video compression standard/
Focal length/
Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711U, G.711A
Audio output1 built-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable
Capacity
Message capacity200 captured pictures, 200 alarm records
Notice capacity200
Linked indoor extensions capacity16
Linked network camera capacity16
Linked doorphone capacity17
Network parameters
Network protocolTCP/IP, SIP, RTSP
Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth/
3G/4G/
Zigbee/
Device interfaces
Alarm input8
Network interface1 RJ-45 10/100 Mbps self-adaptive
TAMPER/
RS-4851 RS-485 (Half duplex)
TF cardSupport TF card, up to 128 G
Alarm output1
Lock control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
General
Button/
InstallationSurface mounting
Indicator/
WeightNet weight: 875 g
Gross weight: 1060 g
Protective level/
Working temperature-10 °C to 50 °C (14 °F to 122 °F)
Working humidity10% to 90% (no-condensing)
Dimension (W H D)254 mm 166 mm 26.65 mm (10.0″ 6.54″ 1.05″)
Battery/
Power supply12 VDC, 1 A, IEEE802.3af, standard PoE
Application environmentIndoor
Power consumption= 12 W
LanguageEnglish, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian

Operation methodCapacitive touch screen
TypeColorful IPS
Resolution1024 600
Video parameters
Lens/
Resolution/
FOV/
Wide dynamic range (WDR)/
Video compression standard/
Focal length/
Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711U, G.711A
Audio output1 built-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable
Capacity
Message capacity200 captured pictures, 200 alarm records
Notice capacity200
Linked indoor extensions capacity16
Linked network camera capacity16
Linked doorphone capacity17
Network parameters
Network protocolTCP/IP, SIP, RTSP
Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth/
3G/4G/
Zigbee/
Device interfaces
Alarm input8
Network interface1 RJ-45 10/100 Mbps self-adaptive
TAMPER/
RS-4851 RS-485 (Half duplex)
TF cardSupport TF card, up to 128 G
Alarm output1
Lock control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
General
Button/
InstallationSurface mounting
Indicator/
WeightNet weight: 875 g
Gross weight: 1060 g
Protective level/
Working temperature-10 °C to 50 °C (14 °F to 122 °F)
Working humidity10% to 90% (no-condensing)
Dimension (W H D)254 mm 166 mm 26.65 mm (10.0″ 6.54″ 1.05″)
Battery/
Power supply12 VDC, 1 A, IEEE802.3af, standard PoE
Application environmentIndoor
Power consumption= 12 W
LanguageEnglish, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian

Brand:
Hikvision
Type:
Panels
