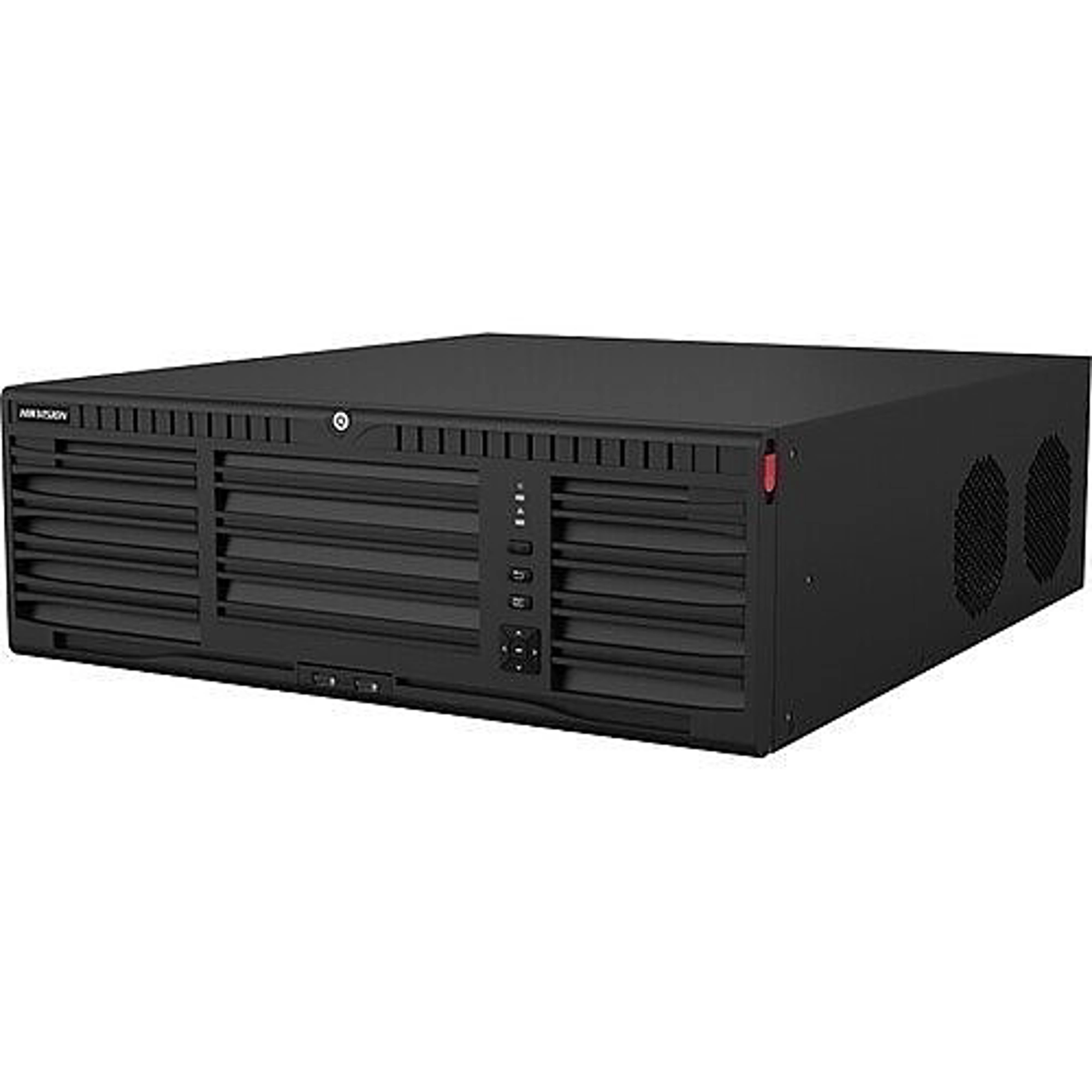

Hikvision DS-9664NI-M16/R

SKU: HIK-DS-9664NI-M16/R

MPN: DS-9664NI-M16/R

UPC: 842571147971

Description

64 Channel NVR, H265+ Video Format, Up to 32MP, Supports special cameras, Up to 32-ch@2 MP decoding capacity, 400Mbps Incoming/ 400Mbps Outgoing Bandwidth, 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs, 2 Self Adaptive GB Ethernet Interfaces, Redundant Power Supply, Supports RAID, 16-SATA, 1-eSATA, N

Add to Wishlist

Send to a friend!

Bandwidth

400Mbps

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-9664NI-M16/R

Product Model

DS-9664NI-M16/R

Product Name

64-ch 2U 8K NVR

Product Series

Product Type

Video Surveillance Station

Composite Video Out

Yes

HDMI

Yes

Number of VGA Out

Total Number of Audio In Ports

Total Number of Audio Out Ports

USB

Yes

Package Contents

TAA Compliant

Ethernet

Yes

Remote Management

Yes

Model Number Replaces

DS-96064NI-I16

Depth

19.5″

Depth (mm)

496

Height

5.9″

Height (mm)

150

Width

17.5″

Width (mm)

445

Recording Formats

Connectivity Technology

Wired

HD Recording

Yes

Maximum Frame Rate

30 fps

System Components

Network Video Recorder

Total Number of Channels

Video Signal Format

NTSC, PAL

Maximum Frame Rate (fps)

Maximum Resolution

4MP

Redundant power supply
Up to 64-Ch IP camera inputs
Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
Advanced streaming technology enables smooth live view in poor network conditions
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
This NVR supports up to 2-ch at 32MP, 2-ch at 24MP, 4-ch at 12MP, 8-ch at 8MP, 16-ch at 4MP, 32-ch at 1080p decoding capacity

Hard Drive:
16
No. of Sata Interfaces:
16
Max Single Drive Capacity:
16TB
Chasis:
2U
Channels:
64
Brand:
Hikvision
No. of PoE Ports:
None

64-ch 2U 8K NVR

Up to 64-ch IP camera inputs
Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
Redundant power supply
Up to 8-ch IP speakers can be connected
