Image Sensor 1/3″ Progressive Scan CMOS Max. Resolution 2688 1520 Min. Illumination Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2° 4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8° 6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2° Lens Mount M12 Aperture F1.6 DORI DORI 2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m 4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m 6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m Illuminator Supplement Light Type IR Supplement Light Range Up to 15 m Video Main Stream 50 Hz: 25 fps (2688 1520, 1920 1080, 1280 720) 60 Hz: 30 fps (2688 1520, 1920 1080, 1280 720) Sub-Stream 50 Hz: 25 fps (640 480, 640 360) 60 Hz: 30 fps (640 480, 640 360) Third Stream 50 Hz: 1 fps (1920 1080, 1280 720, 640 480, 640 360) 60 Hz: 1 fps (1920 1080, 1280 720, 640 480, 640 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 5 fixed regions for each stream Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour Simultaneous Live View Up to 6 channels API Open Network Video Interface, ISAPI, ISUP 5.0 User/Host Up to 32 users 3 levels: Administrator, Operator and User Network Storage NAS (NFS, SMB/CIFS), ANR Client iVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ Image Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB Image Enhancement BLC, HLC, 3D DNR, defog Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. Alarm 1 alarm input, 1 alarm output Event Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection, unattended baggage detection, object removal detection General Power 12 VDC, 0.4 A, max. 5 W, two-core terminal block PoE (802.3af, Class 3, 36 V to 57 V), 0.1 A Material 316L and anti-corrosion coating Dimension 113 mm 77.3 mm (4.45″ 3.04″) Package Dimension 257 mm 167 mm 145 mm (10.12″ 6.57″ 5.71″) Weight Approx. 1500 g (3.3 lb.) With Package Weight Approx. 1900 g (4.2 lb.) Startup and Operating Conditions -30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror Approval EMC FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015 IC: IC-VoC (ICES-003 Issue 7:2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) Safety UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015 LOA: SANS IEC60950-1 Environment CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863) Protection IP67 (IEC 60529-2013) Anti-Corrosion Protection WF2, NEMA-4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.

• 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
• Water and dust resistant (IP67), preventing water ingress for outdoor use
• H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
• Lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions (pan/tilt/rotate), for easy installation

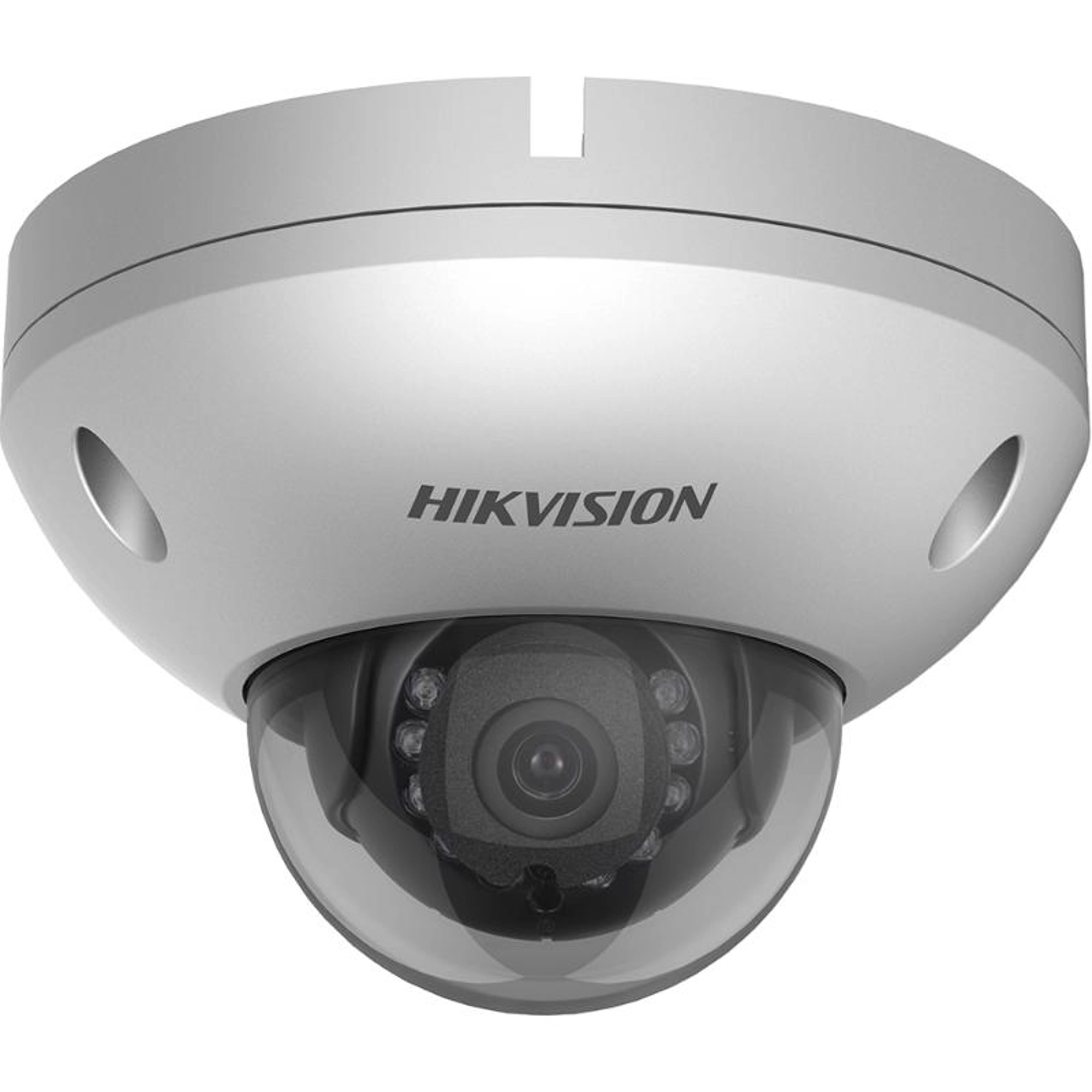

DS-2XC6142FWD-IS

IR Fixed Mini Dome Anti-Corrosion Network Camera
