Hikvision DS-2CD6924G0-IHS 2.8MM

Image Sensor
1/1.8″-Type CMOS
Focal Length
2.8mm
Field of View
Horizontal: 180°
Vertical: 90°
Pan/Tilt
No
Power I/O
1x DC
1x RJ45
Imaging
Lens Mount
M16
Number of Lenses
4
Image Sensor
1/1.8″-Type CMOS
Sensor Resolution
Effective: 2 Megapixel
IR Cut Filter
Yes Mechanical
Day/Night
Yes
Exposure Control
Minimum Illumination
0.003 Lux (Color)
0 Lux (Black and White)
Lens
Focal Length
2.8mm
Field of View
Horizontal: 180°
Vertical: 90°
Maximum Aperture
f/1.4
Video
Automatic Gain Control
Yes
Max IP Streaming
via RJ45
1920 x 1080 up to 30.00 fps
Multi-View Streaming
Yes, 2 Streams
Control
Camera Angle Adjustment
Horizontal: 0 to 355°
Vertical: 0 to 90°
Pan/Tilt
No
Supported Control Protocols
Pelco-D
Pelco-P
RS-485
Networking
Security
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
Supported Protocols
Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, ONVIF Profile S, ONVIF Profile G, ISAPI, SDK, Ehome
Interface
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Input
1x 1/8″ / 3.5 mm TRS Stereo Output
Other I/O
1x RJ45
1x DE-9/DB-9 (RS-485, Serial)
1- or 2-Way Audio
Two-Way
Audio Formats
G.711, G.722.1, G.726, MP2L2, PCM
External Storage Options
NAS
System Integration
Analytics
Motion Detection, Camera Sabotage/Tampering, People Counting
Built-In Installation Aids
Pixel Counter
Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Alarm I/O
2 / 2
Power
Power I/O
1x DC
1x RJ45
Power Consumption
24 with Heater
General
Material of Construction
Aluminum
Environmental Resistance
Dust/Water-Resistant (IP67)
Impact Resistance
Impact-Resistant (IK10)
Operating Conditions
-40 to 140°F / -40 to 60°C up to 95% Humidity
Startup Temperature
-40 to 140°F / -40 to 60°C
Storage Conditions
-40 to 140°F / -40 to 60°C
Illumination
4x 850 nm IR LEDs up to 65.6′ / 20 m
Supported Languages
English
OS Compatibility
Android/iOS
Mobile App Compatible
Yes: Android & iOS
Dimensions (W x H x D)
7.5 x 8.2 x 8.1″ / 189.5 x 207.6 x 206.6 mm
Weight
6.6 lb / 3 kg (Body Only)
Packaging Info
Package Weight
11.2 lb
Box Dimensions (LxWxH)
13.25 x 11.75 x 10.5″

8MP Total Resolution
IR LEDs for Night Vision up to 66′
Four x 2.8mm Fixed Lenses
180° Horizontal Field of View
Two-Way Audio
RJ45 Ethernet with PoE Technology
microSD Slot Supports up to 256GB
Complies with ONVIF Profiles G & S
IP67 Rated for Outdoor Use
IK10-Rated Vandal Resistance

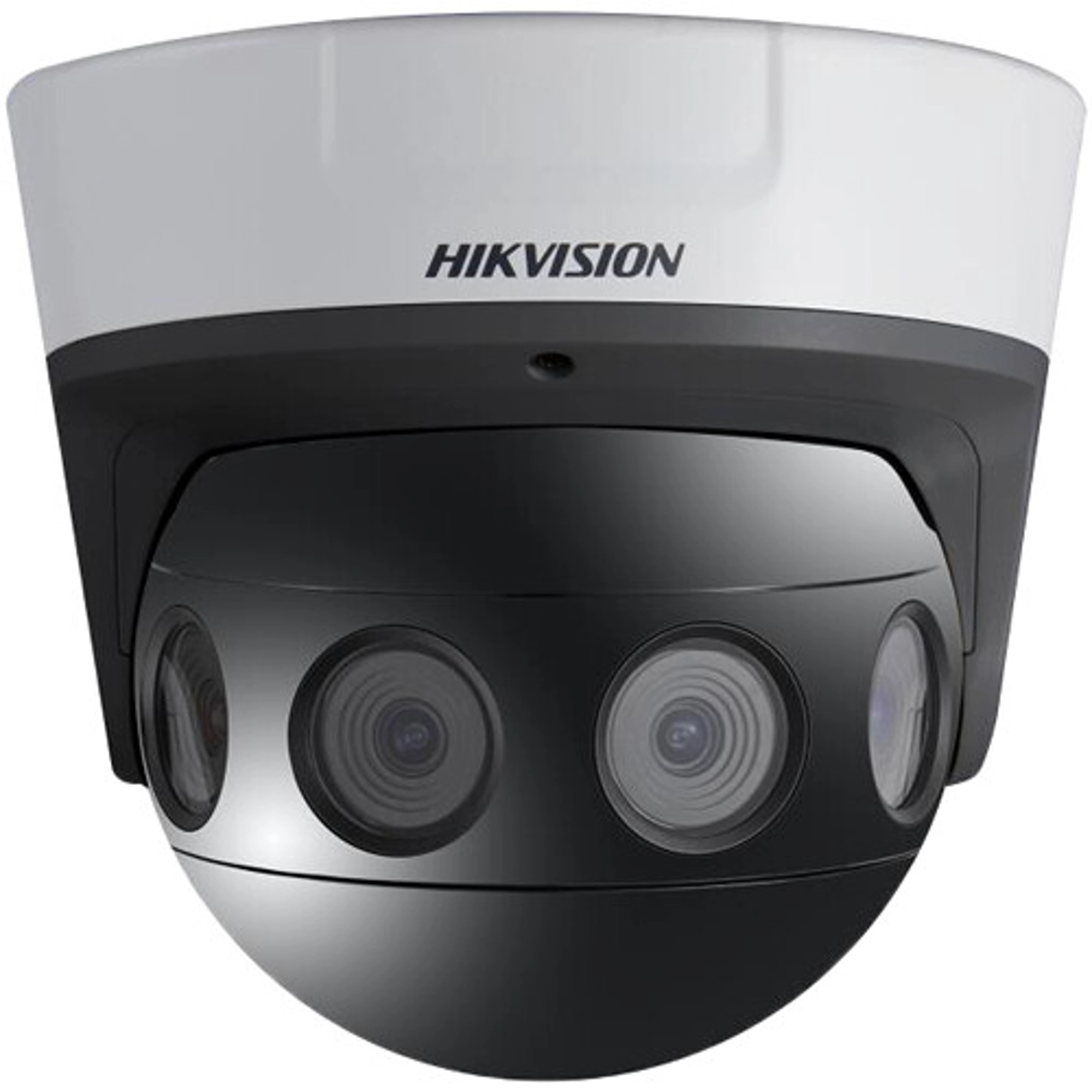

Monitor four different views in an indoor or outdoor area from a single device with the PanoVu DS-2CD6924G0-IHS 8MP 4-Sensor Network Dome Camera from Hikvision. This multi-sensor camera uses four 1/1.8″ progressive scan CMOS sensors to capture video at a combined resolution of 8MP. Four IR LEDs provide up to 66′ of night vision. The camera is equipped with four 2.8mm fixed lenses to stitch together a 180° horizontal field of view in Panorama view. Additionally, the camera features Panorama, Panorama + ePTZ, Divided Panorama, and Original for flexible viewing in a myriad of resolutions. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

Compliance with ONVIF profiles G and S enables interoperability with a wide range of surveillance devices. This camera is housed in an IP67- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.

Integrated heater
IR cut filter for day and night functionality with blue glass module to minimize ghosting
Scalable Video Coding (SVC) for H.265/H.264 encoding
Digital wide dynamic range
Backlight compensation, highlight compensation, 3D-DNR, defog, and electronic image stabilization (only in original mode)
Image setting includes: rotate mode (only in original mode), saturation, brightness, contrast, sharpness, automatic gain control, and white balance
Target cropping and picture overlay
Electronic noise filtering
Analytics include: motion detection (only in panorama and original modes), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), and people density (only in panorama mode)
General functions include: anti-flicker, heartbeat, mirror (only in original mode), privacy masks (only in original mode), password protection, watermark, IP address filter, and pixel counter
Up to 32 users with three host levels (admin, operator, and user)
Up to 20 channels in simultaneous live view
Compatible with Internet Explorer 8, iVMS-4200, iOS, and Android
