SKU: HIK-DS-2CD3648G2T-LIZS
MPN: DS-2CD3648G2T-LIZS 2.7-13.5mm
UPC: 842571148411

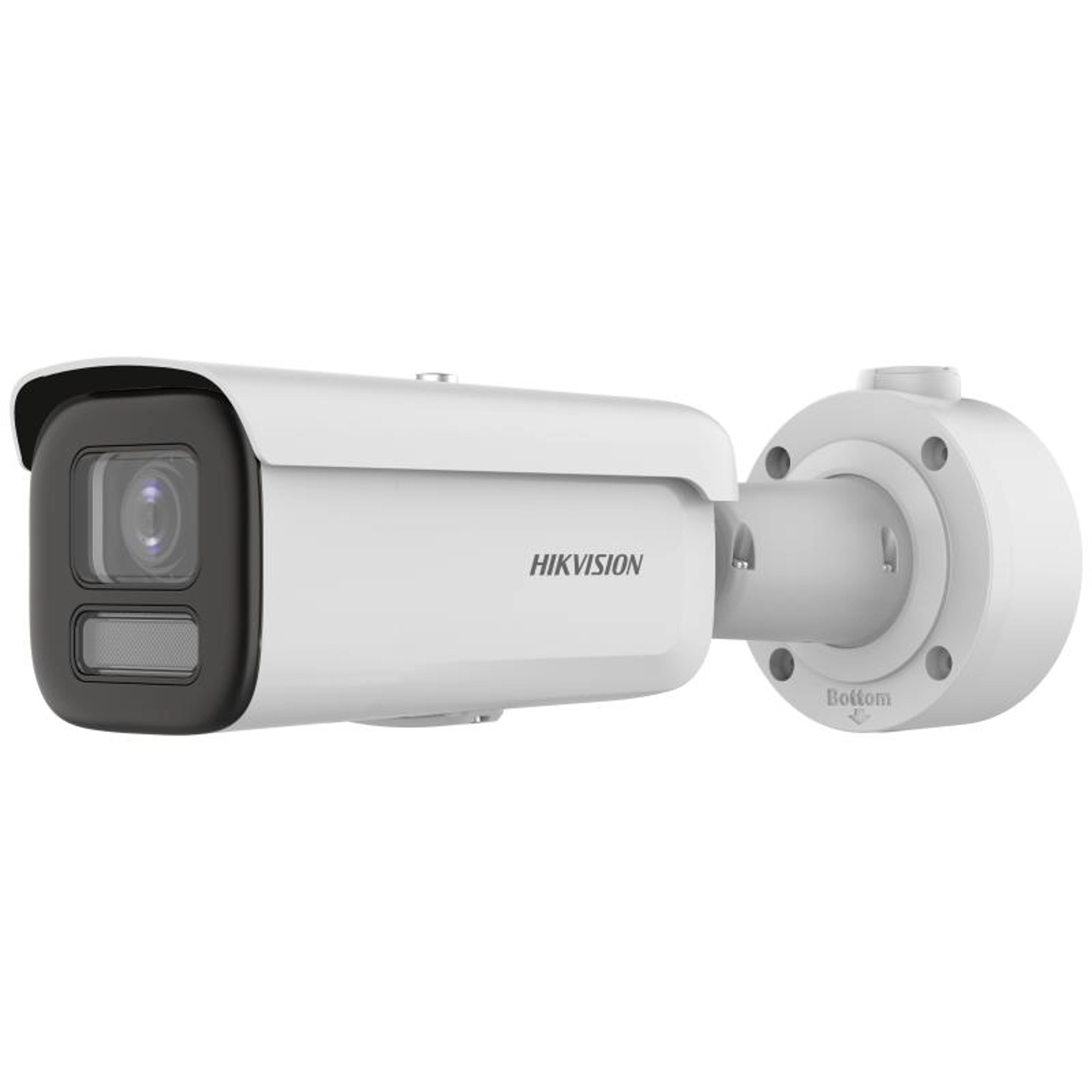

4MP Smart Dual-Illuminations Verifocal Bullet, 1420 dB WDR technology, H.265+, 2.7-13.5mm Motorized varifocal lens, Focus on human and vehicle classification based on deep learning, Water and dust resistant (IP67) and vandal resistant (IK10)
Send to a friend!
Power
12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
Material
Front cover: Metal, body: Metal, bracket: Metal
Dimension
334 mm × 97.9 mm × 95.7 mm (13.2″ × 3.9″ × 3.8″)
Package Dimension
386 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
Weight
Approx. 1085 g (2.4 lb.)
With Package Weight
Approx. 1639 g (3.6 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
High quality imaging with 4 MP resolution
Smart Dual-Light: advanced technology with long range
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
Hikvision
High quality imaging with 4 MP resolution
Smart Dual-Light: advanced technology with long range
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
