Hikvision DS-2CD2346G2P-ISU/SL

SKU: HIK-DS-2CD2346G2P-ISU/SL

MPN: DS-2CD2346G2P-ISU/SL 2.8mm

Description

(2.8mm) Panoramic Camera Series, 4MP AcuSense Fixed IP Turret FOV 108 degrees, 120 dB True WDR, H.265+, Deep learning, IR Light up to 30m, IP 67

Add to Wishlist

Send to a friend!

Image Sensor
1/2.5″-Type CMOS
Focal Length
2.8mm
Field of View
Horizontal: 180°
Vertical: 81°
Built-In Microphone
Yes
Power I/O
1x DC (12VDC) Input
1x RJ45 Input
Imaging
Lens Mount
M12
Number of Lenses
2
Image Sensor
1/2.5″-Type CMOS
Sensor Resolution
Effective: 4 Megapixel
IR Cut Filter
Yes
Day/Night
Yes
DORI Coverage
With 2.8mm Lens:
Detect: At 121.5′ / 37.0 m
Observe: At 49.3′ / 15.0 m
Recognize: At 23′ / 7.0 m
Identify: At 11.5′ / 3.5 m
Exposure Control
Shutter Speed
1/100,000 to 1/3 Second
Minimum Illumination
0.003 Lux (Color)
0 Lux (Black and White)
Lens
Focal Length
2.8mm
Field of View
Horizontal: 180°
Vertical: 81°
Maximum Aperture
f/1.6
Video
Automatic Gain Control
Yes
Max IP Streaming
H.264, H.264+, H.265, H.265+, MJPEG via RJ45
3040 x 1368 up to 24.00 fps
Multi-View Streaming
Yes, 2 Streams
Control
Camera Angle Adjustment
Horizontal: 0 to 30°
Vertical: -75 to 75°
Networking
Security
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark
Supported Protocols
Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, ISAPI, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SDK, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
Interface
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
Audio I/O
1x Block Input
1x Block Output
Other I/O
1x RJ45
1- or 2-Way Audio
Two-Way
Audio Formats
AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
Built-In Microphone
Yes
Built-In Speaker
Yes
External Storage Options
NAS
System Integration
Analytics
Entering/Exiting, Intrusion Detection, Motion Detection, People Detection, Scene Change Detection, Vehicle Detection, Virtual-Line Crossing Detection
Built-In Installation Aids
Pixel Counter
Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Alarm I/O
1 / 1
Power
PoE Support
PoE 802.3af
Power I/O
1x DC (12VDC) Input
1x RJ45 Input
Power Consumption
Power Supply: 12 VDC 10.5 W
PoE: 12.5 W
General
Material of Construction
Metal
Environmental Resistance
Dust/Weather/Water-Resistant (IP67)
Certifications
FCC, CE, EN, RCM, IC, ICES, UL, CB, IEC, RoHS, WEEE, REACH
Operating Conditions
-22 to 140°F / -30 to 60°C up to 95% Humidity
Startup Temperature
-22 to 140°F / -30 to 60°C
Storage Conditions
-22 to 140°F / -30 to 60°C
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
Supported Languages
Brazilian Portuguese
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese
OS Compatibility
Android/iOS
Mobile App Compatible
Yes: Android & iOS
App Name: iVMS-4200,Hik-Connect,HikCentral
Dimensions (W x H x D)
5.5 x 5.7″ / 140 x 145.6 mm
Weight
2.1 lb / 940 g (Body Only)
Packaging Info
Package Weight
3.29 lb
Box Dimensions (LxWxH)
9.2 x 9.1 x 9.1″

AcuSense technology minimizes false alarms caused by moving targets that aren’t humans or vehicles to improve efficiency and effectiveness
IR cut filter for day and night switching
CBR and VBR
Scalable Video Coding (SVC) for H.264/H.265 encoding
=52 dB S/N ratio and 120 dB wide dynamic range
3D-DNR, backlight compensation, and highlight compensation
Image settings include saturation, brightness, contrast, sharpness, gain, and white balance
Region of interest supports one fixed region for main stream
Analytics include motion detection (supports human and vehicle target types), alarm input and output, flashing alarm light output, audible alarm output, exception, line crossing detection, intrusion detection, region entrance detection, region exiting detection, and scene change detection
General functions include anti-banding, heartbeat, flash log, and pixel counter
Up to 32 users with three host levels (admin, operator, and user)
Up to six channels in simultaneous live view
Environment noise filtering
Compatible with Internet Explorer 10 and 11 (plug-in required), Chrome 57 or higher, Firefox 52 or higher, Edge 89 or higher, iVMS-4200, Hik-Connect, and HikCentral

Camera Lens Size:
2.8mm
Megapixels:
4
Mic/Audio:
Built-in Mic and Speaker
Lens Type:
Fixed
Brand:
Hikvision
Camera Illumination Type:
Infrared
Type:
Turret
Color:
White

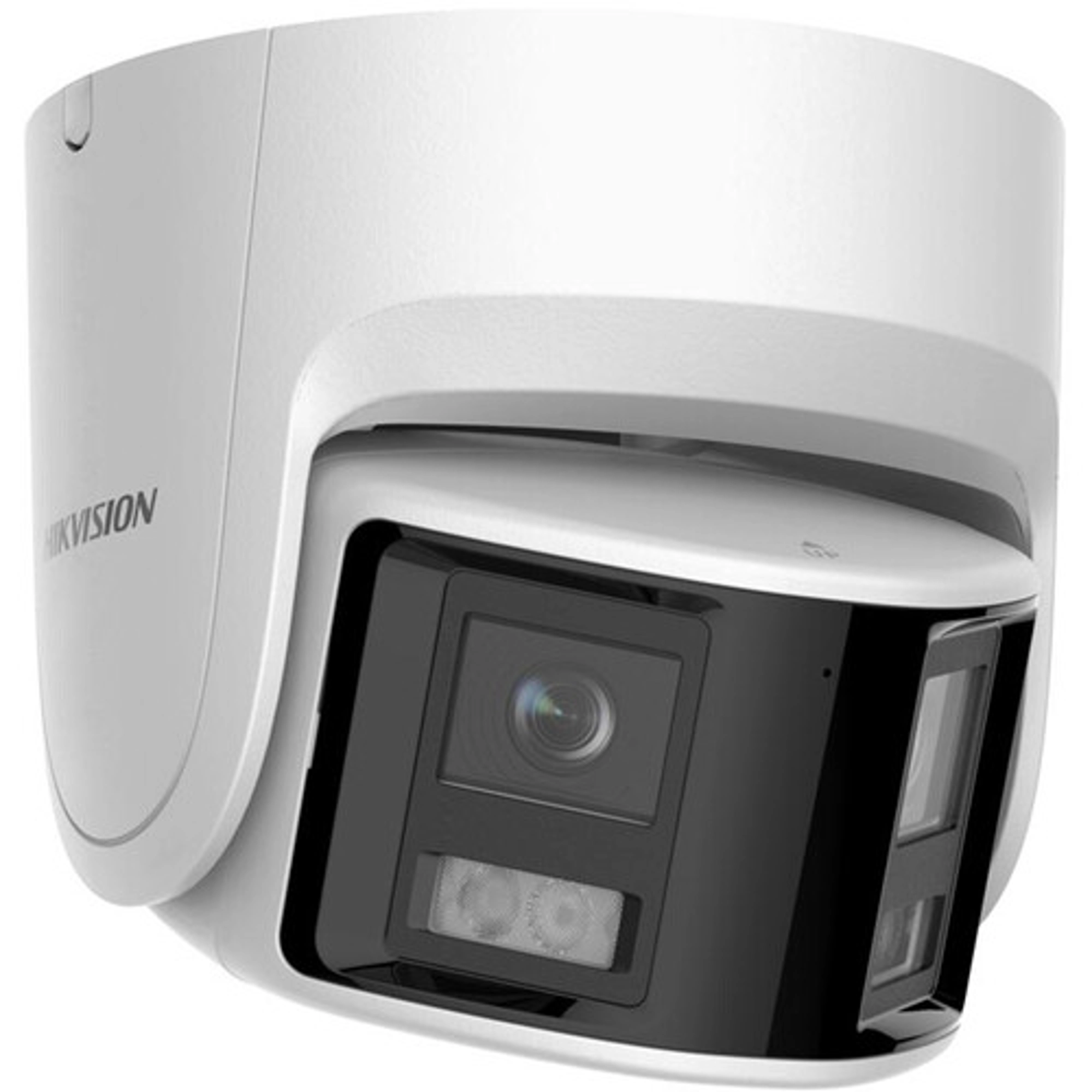

Monitor an indoor or outdoor area with the AcuSense DS-2CD2346G2P-ISU/SL 4MP Panoramic Network Turret Camera from Hikvision. This unit uses two 1/2.5″ progressive scan CMOS sensors to capture 3040 x 1368 resolution video at up to 24 fps. A supplemental IR light provides up to 98′ of night vision. The camera features dual 2.8mm fixed lenses that deliver a 180° horizontal angle of view. Two-way audio is possible thanks to a built-in speaker and microphone, along with an audio input and output. An active strobe light and an audio alarm keeps intruders at bay. A built-in memory card slot supports microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This panoramic camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for safe outdoor use.
