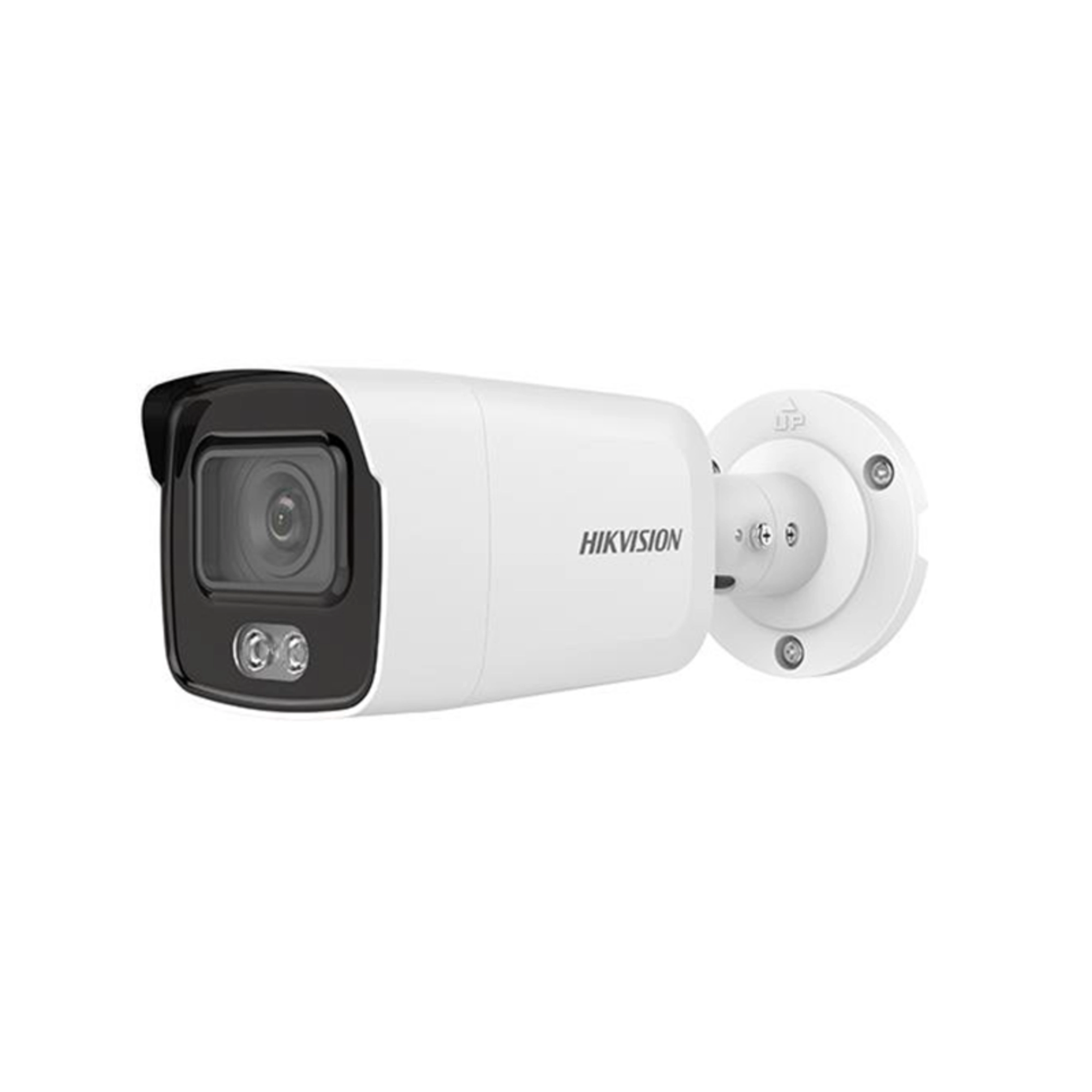

Hikvision DS-2CD2027G1-L 2.8MM

Product Overview:

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In zero-light scenarios, built-in, warm supplemental lighting works to guarantee colorful images.

Key Features:

1/2.8″ Progressive Scan CMOS
1920 1080 @ 30fps
F1.0 aperture, 2.8/4/6 mm fixed lens
120dB WDR
H.265+, H.265, H.264+, H.264
IP67
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
24/7 full time color

Camera

• Image Sensor 1/2.8″ Progressive Scan CMOS
• Min. Illumination 0.0035 @ F1.0 (1/30 s, AGC ON), 0 Lux with LED on
• Shutter Speed1/3 s to 1/100,000 s
• Slow Shutter Yes
• Wide Dynamic Range 120dB
• Angle Adjustment Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°

Lens

• Focus Fixed
• Lens Type 2.8/4/6 mm
• FOV 2.8 mm, horizontal FOV: 112°, vertical FOV: 57°, diagonal FOV: 138°; 4 mm, horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 106°; 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 63°
• Aperture F1.0
• Lens Mount M16
• Aperture Type Fixed

Illuminator

• White Light Range 30m

Video

• Max. Resolution 1920 1080
• Main Stream 50Hz: 25fps (1920 1080, 1280 960, 1280 720); 60Hz: 30fps (1920 1080, 1280 960, 1280 720)
• Sub Stream 50Hz: 25fps (640 480, 640 360, 320 240); 60Hz: 30fps (640 480, 640 360, 320 240)
• Video Compression Main stream: H.265+/H.264+/H.265/H.264; Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• H.264+ Main stream supports
• H.265+ Main stream supports
• Scalable Video Coding (SVC)Yes
• Region Of Interest (ROI)Support 1 fixed region for main stream

Network

• Simultaneous Live View Up to 6 channels
• API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host Up to 32 users,3 levels: Administrator, Operator and User
• Network Storage Support micro SD/SDHC/SDXC card (128 G) local storage, NAS (NFS,SMB/CIFS), ANR
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web BrowserIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
• Alarm Trigger Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• DNR 3D DNR
• Image Enhancement BLC/3D DNR/HLC
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface

• On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset Yes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Smart Event Line crossing detection, intrusion detection

General

• Firmware Version V5.5.53
• General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masks, IP address conflict, flash log
• Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F)
• Power Supply 12 VDC ± 20%, PoE: 802.3af
• Power Consumption And Current 12VDC, 0.4 A, max. 5 W; PoE:(802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 6.5 W
• Camera Dimension 85 85 218 mm (3.3″ 3.3″ 8.6″)
• Camera Weight 0.680 kg (1.5 lb.)

Approval

• Protection IP67
