SKU: HIK-DS-2CD1043G2-LIUF 4MM
MPN: DS-2CD1043G2-LIUF 4mm
Outdoor Fixed Bullet Network Camera ,High quality imaging with 4 MP resolution; Support Human and Vehicle Detection; Smart Dual-Light: advanced technology with long range; Built-in microphone for real-time audio security; Water and dust resistant (IP67); Efficient H.265+ compression technology; Support on-board storage up to 256 GB (SD card slot)
Send to a friend!
Sensor
4 MP 1/3″ CMOS
Focal Length
4mm
Lens Field of View
Horizontal: 78°
Vertical: 42°
Diagonal: 93°
Built-In Mic
Yes
Power Source
DC, PoE 802.3af (15 W)
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
White LED up to 98.4′ / 30 m
Camera
Sensor
4 MP 1/3″ CMOS
Lens Mount
M12
Focal Length
4mm
Maximum Aperture
f/1.6
Lens Field of View
Horizontal: 78°
Vertical: 42°
Diagonal: 93°
IR Cut Filter
Mechanical
Day/Night
Yes
Minimum Illumination
Color: 0.005 Lux
B&W: 0 Lux
Shutter Speed
1/100000 to 1/3 Seconds
DORI Coverage
With 4mm Lens:
Detect: At 256′ / 78.0 m
Observe: At 101.7′ / 31.0 m
Recognize: At 49.2′ / 15.0 m
Identify: At 22.9′ / 7.0 m
Mobile App Compatible
Yes: Android & iOS
App Name: iVMS-4200
Video
Streaming Resolution
2560 x 1440 at 20 fps (8 Mb/s )
1920 x 1080 at 24 fps
Supported Video Compression
H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming
Yes, 2 Streams
Automatic Gain Control
Yes
Audio
1- or 2-Way Audio
One-Way
Audio Formats
AAC-LC, G.711, G.722.1, G.726, MP2L2
Built-In Mic
Yes
Networking
Security
Digest Authentication, MAC Address Filtering, Password Protection, Watermark
Supported Protocols
DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP
System Integration
Application Programming Interface (API)
ONVIF Profiles G, S, & T, ISAPI, SDK
Analytics
Motion Detection (Human & Vehicle), Video Tampering Alarm, Exception
OS Compatibility
Windows
macOS
Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
Alarm I/O
No
Hardware
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
Internal Storage
No
Power
Power Source
DC, PoE 802.3af (15 W)
Power Consumption
DC: 5 W
PoE: 6.5 W
Environmental
Operating Temperature
-22 to 140°F / -30 to 60°C
Startup Temperature
-22 to 140°F / -30 to 60°C
Storage Temperature
-22 to 140°F / -30 to 60°C
Operating Humidity
0 to 95%
General
Inputs/Outputs
1x RJ45
1x Power
Illumination
850 nm IR LEDs up to 98.4′ / 30 m
White LED up to 98.4′ / 30 m
Video Management Software
iVMS-4200, Hik-Connect
Supported Languages
English
Ukrainian
Certifications
EN 50130-4, FCC (Part 15 Class B), ICES-003 Class A, RCM, REACH, RoHS, UL, WEEE, as per Manufacturer
Material of Construction
Metal (Unspecified Type), Plastic
Dimensions
H: 2.6 x W: 2.7 x L: 6.7″ / H: 66.0 x W: 69.1 x L: 170.8 mm
Weight
0.6 lb / 270 g
Packaging Info
Package Weight
1.02 lb
Box Dimensions (LxWxH)
8.6 x 5.2 x 4.7″
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure for safe outdoor use.
IR cut filter for day and night switching
IR LED and white light illumination
CBR and VBR
3-axis angle adjustments
Image settings include: rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
Region of interest supports one fixed region for main stream
Analytics include: motion detection (human and vehicle specification), video tampering alarm, and exception
General functions include: heartbeat, anti-banding, mirror, password protection, and password reset via email
Additional features include: =52 dB S/N ratio, 120 dB wide dynamic range, backlight/highlight compensation, 3D-DNR, four programmable polygon privacy masks, environment noise filtering, and reset key
Up to 32 users with three host levels (admin, operator, and user)
Up to six channels in simultaneous live view
Compatible with Internet Explorer 10 and 11, Chrome 57 or higher, Firefox 52 or higher, iVMS-4200, and Hik-Connect
UPC: 842571149531
In the Box
Hikvision DS-2CD1043G2-LIUF 4MP Outdoor Network Bullet Camera with Night Vision & 4mm Lens
Limited 3-Year Manufacturer Warranty
Additional Resources
2560 x 1440 Resolution at 20 fps
IR LEDs for Night Vision up to 98′
White Light Illumination up to 98′
4mm Fixed Lens
78° Horizontal Field of View
Built-In Microphone
Supports microSD Cards up to 512GB
RJ45 Ethernet with PoE Technology
Complies with ONVIF Profiles G, S & T
IP67 Rated for Outdoor Use
Hikvision

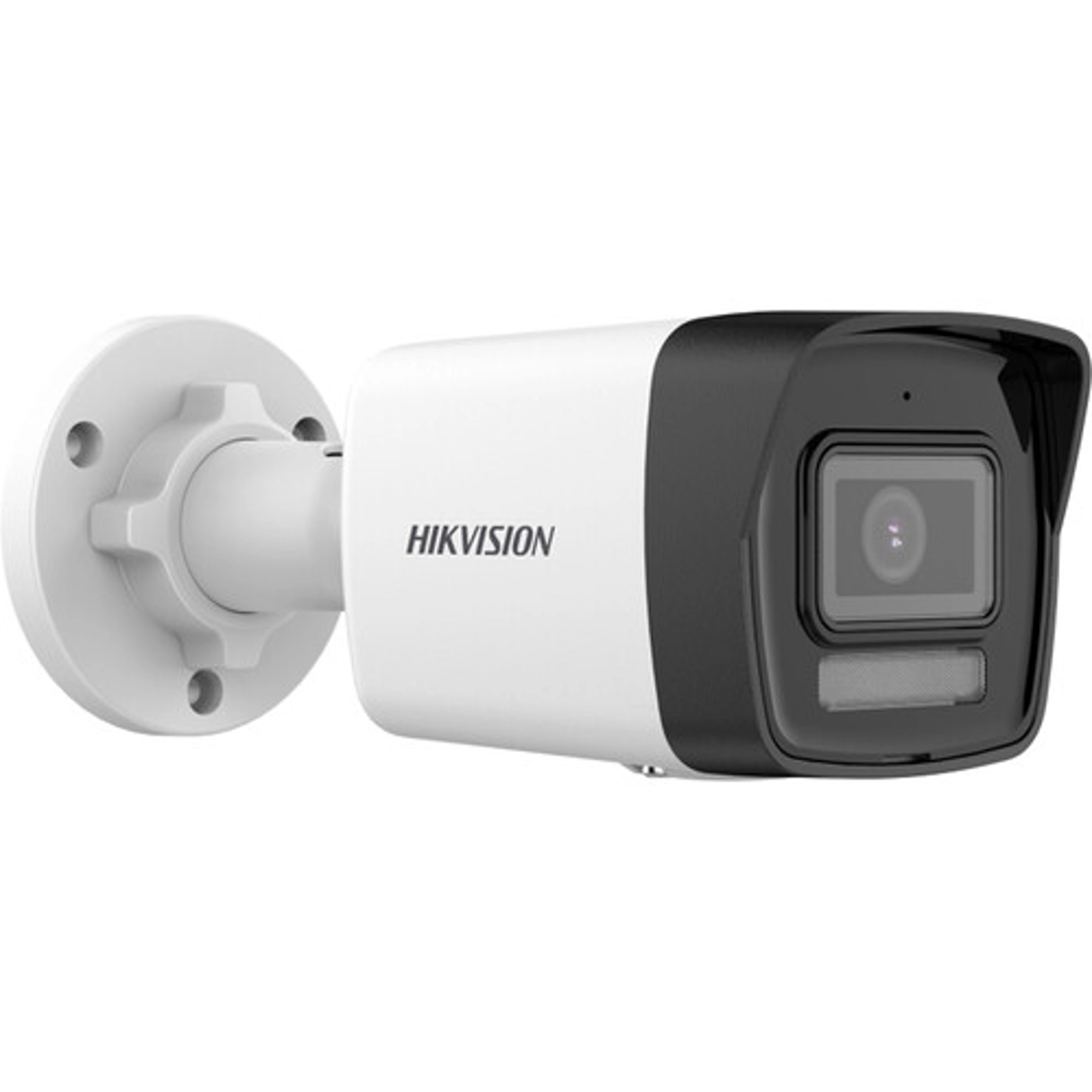

Securely monitor your surroundings with the DS-2CD1043G2-LIUF 4MP Outdoor Network Bullet Camera from Hikvision. This unit uses a 1/3″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 20 fps. IR LEDs provide up to 98′ of night vision, while a supplemental white light provides up to 98′ of illumination for recording full-color video in low-light conditions. The camera’s 4mm fixed lens delivers a 78° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot supports microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
