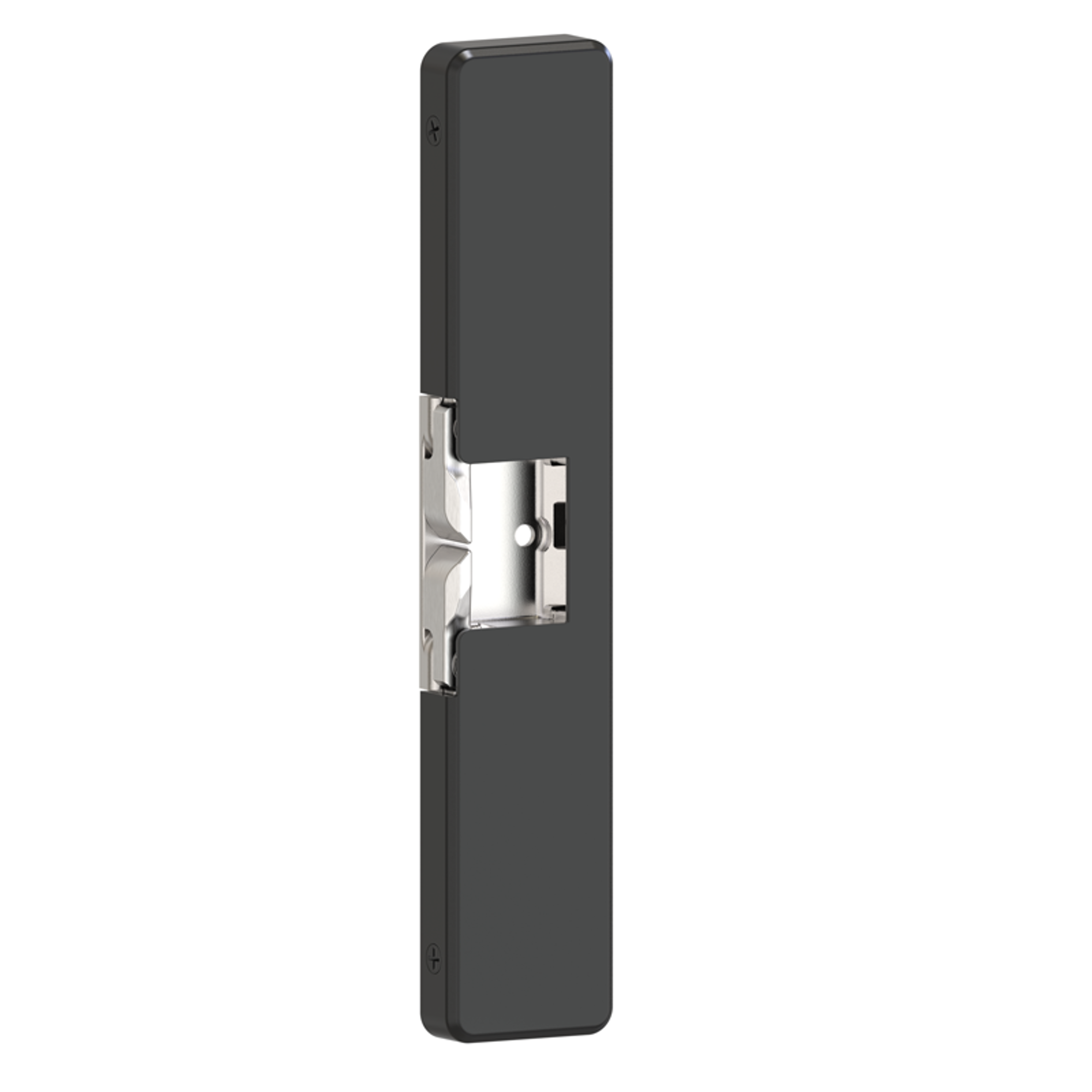

HES 9400-BSP

The HES 9400 series is a slim-line, outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2″ Pullman latch. All components are completely encased within its 5/8″ thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install. The HES 9400 ships with a 1/8″ spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation, and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

• Installs in metal and wood frames (wood screws not included)
• One 1/8″ spacer plate included
• Decorative cover for sleek new look
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000,000 cycles
• Field selectable fail secure/fail safe
• Horizontal adjustability
• Non-handed
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)
• Internally mounted solenoid
• Accommodates up to 1/2″ Pullman latch

9400 Series Surface Mounted Electric Strike

9400-BSP

The outdoor rated surface mounted electric strike designed to accommodate rim exit devices with a 1/2″ Pullman latch.

Configured as:

Related Finishes: BSP Black suede powder coat

Monitoring Options: NA

• Cutsheet
