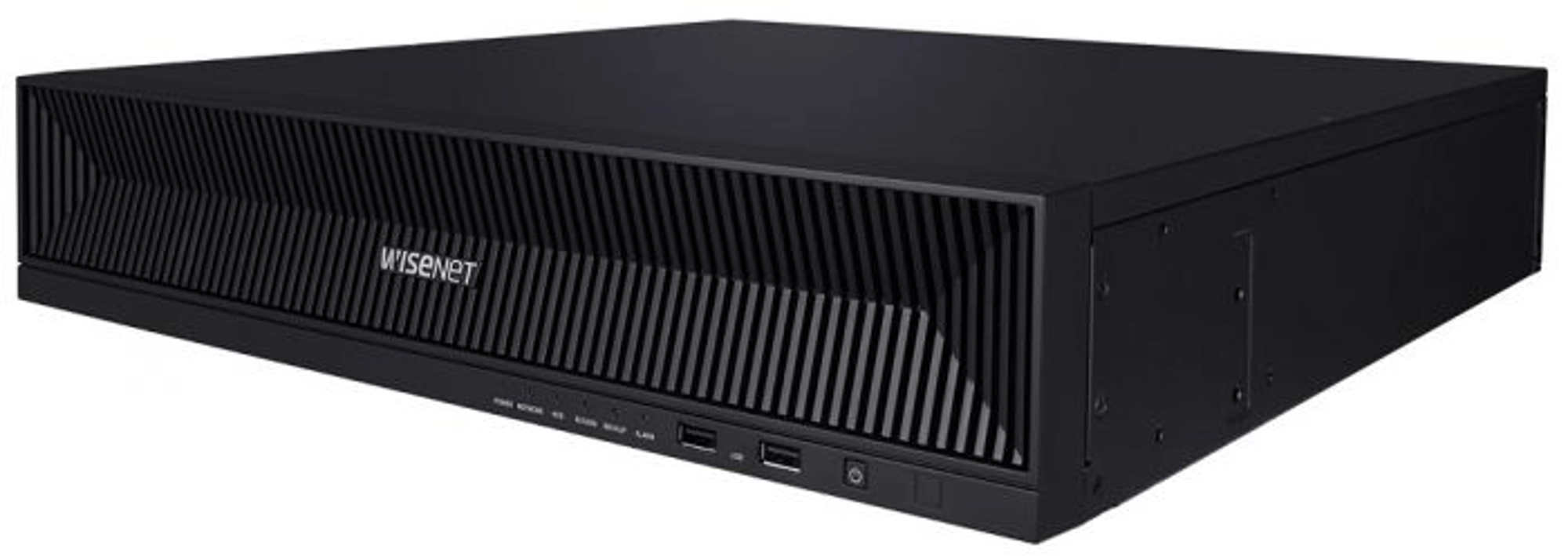

Hanwha XRN-1620SB1-12TB
SKU: HAN-XRN-1620SB1-12TB
MPN: XRN-1620SB1-12TB
Description
16-Channel NVR 140Mbps Recording 16 PoE 4 SATA AI Support 12TB HDD Included
Send to a friend!
SKU: HAN-XRN-1620SB1-12TB
MPN: XRN-1620SB1-12TB
16-Channel NVR 140Mbps Recording 16 PoE 4 SATA AI Support 12TB HDD Included
Send to a friend!
| SKU | XRN-1620SB1-12TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 16 Channel |
| Harddrive Size | 12TB |
| Protocols | Samsung Protocols, Onvif Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Maximum 140Mbps |
| Operating temperature | 0°C to +40°C(32 to 104) |
| Dimensions | 440 x 89.8 x 428.4 mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Maximum 310W |
| SATA | SATA 4ea (Maximum 24TB) |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| HD Resolution | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
The XRN-1620SB1-12TB from Samsung is a 16 channel 4K 140Mbps H.265 PoE+ network video recorder, 12TB. Hanwha’s XRN-1620SB1 is an 8K NVR (Intel-based), No HDD, 16 channels with 16 PoE/PoE+ ports (PoE Budget 200W), H265, H264, MJPEG compression support. Supports up to 4 fixed internal SATA HDDs (6TB max per HDD), ARB (Automatic Recovery Backup), 140 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, maximum resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code for mobile app.
Features
Hanwha
The XRN-1620SB1-12TB from Samsung is a 16 channel 4K 140Mbps H.265 PoE+ network video recorder, 12TB. Hanwha’s XRN-1620SB1 is an 8K NVR (Intel-based), No HDD, 16 channels with 16 PoE/PoE+ ports (PoE Budget 200W), H265, H264, MJPEG compression support. Supports up to 4 fixed internal SATA HDDs (6TB max per HDD), ARB (Automatic Recovery Backup), 140 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, maximum resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code for mobile app.
