Brand NameHanwha Manufacturer part NumberQNO-C9083R Item Description4K AI IR Bullet Camera with Varifocal lens Imaging Device1/2.8″ CMOS Resolution – Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps) NETDNone Pixel SizeNone Min. IlluminationColor: 0.065Lux(F1.6, 1/30sec) BW: 0.0065Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) Video Out– Video Transmission DistanceNone Lens – Focal Length (Zoom Ratio)3.2~10.2mm(3.2x) motorized varifocal Angular Field of ViewH : 104°(Wide)~31°(Tele) V : 55°(Wide)~17°(Tele) D : 124°(Wide)~35°(Tele) Min. Object Distance1.2m (3.93ft)

• 4K resolution
• 3.2 ~ 10.2mm (H: 104°~31° / V: 55°~17°) motorized varifocal lens
• 30fps@all resolutions (H.265/H.264)
• Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Appear/Disappear, Tampering, Motion Detection based on AI engine, AI Object Detection – Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
• People Counting, Heatmap, Queue Management, & Vehicle Counting
• micro SD (256GB) memory slot, PoE / 12V DC
• IR viewable length 30m (98ft)
• IP66, IK10
• Hallway view support
• LDC support (Lens Distortion Correction)
• USB for easy installation, open platform
• Optional SBO-140BW backbox accessory available
• Audio support (mic/line input)
• Operating temperature -30°C~+55°C (-22°F ~ +131°F), white color

• 4K resolution
• 3.2 ~ 10.2mm (H: 104°~31° / V: 55°~17°) motorized varifocal lens
• 30fps@all resolutions (H.265/H.264)
• Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Appear/Disappear, Tampering, Motion Detection based on AI engine, AI Object Detection – Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
• People Counting, Heatmap, Queue Management, & Vehicle Counting
• micro SD (256GB) memory slot, PoE / 12V DC
• IR viewable length 30m (98ft)
• IP66, IK10
• Hallway view support
• LDC support (Lens Distortion Correction)
• USB for easy installation, open platform
• Optional SBO-140BW backbox accessory available
• Audio support (mic/line input)
• Operating temperature -30°C~+55°C (-22°F ~ +131°F), white color

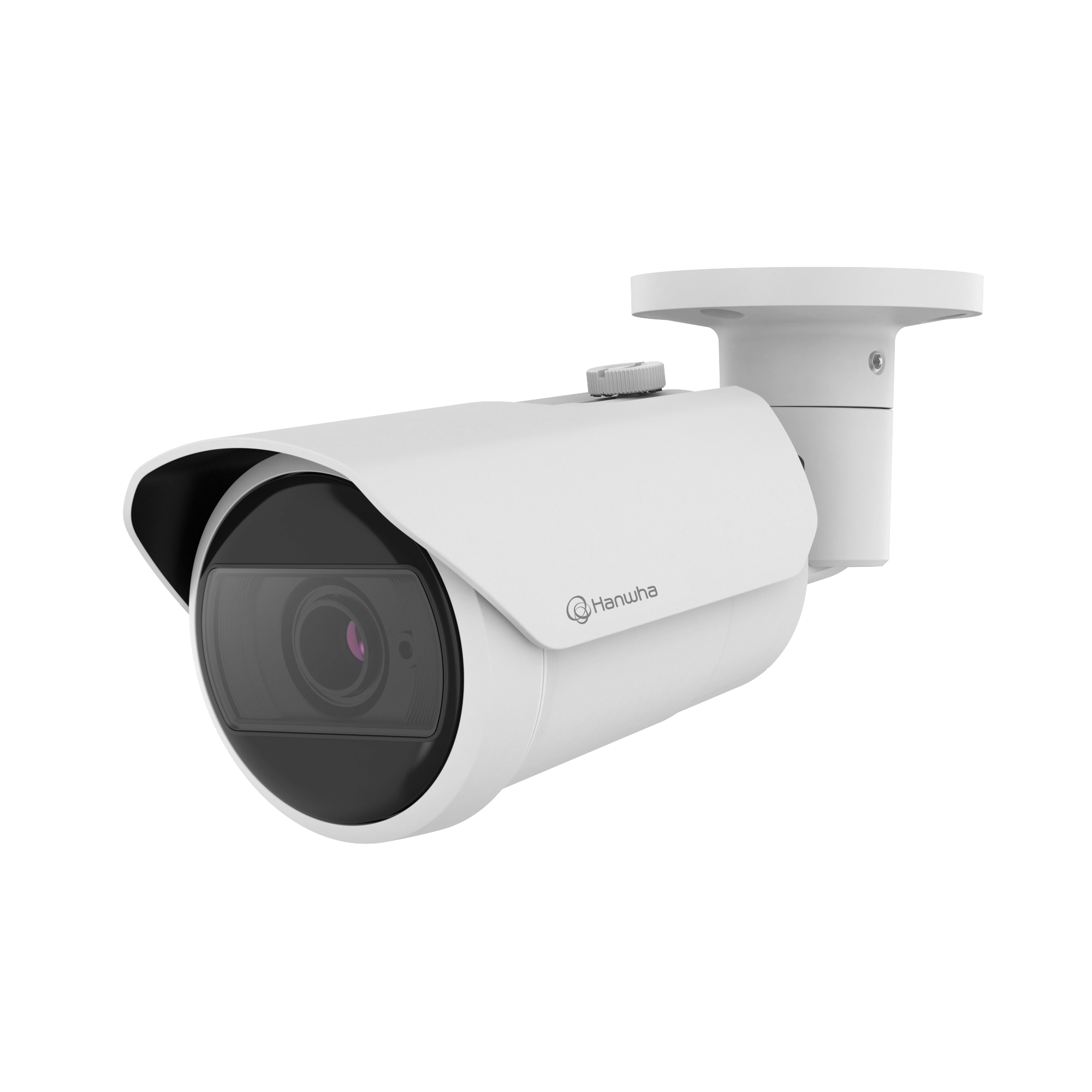

QNO-C9083R

4K AI IR Bullet Camera with Varifocal lens

Now the Wisenet Q series meets AI with advanced Object Detection and accurate Motion Detection of AI Objects, eliminating false positives from foliage, lighting changes, etc. The Q series has also been enhanced to support 4K resolution, providing more detail and allowing you to cover wider areas with fewer cameras.
