SKU: HAN-PNM-C16013RVQ
MPN: PNM-C16013RVQ
UPC: 801089225283

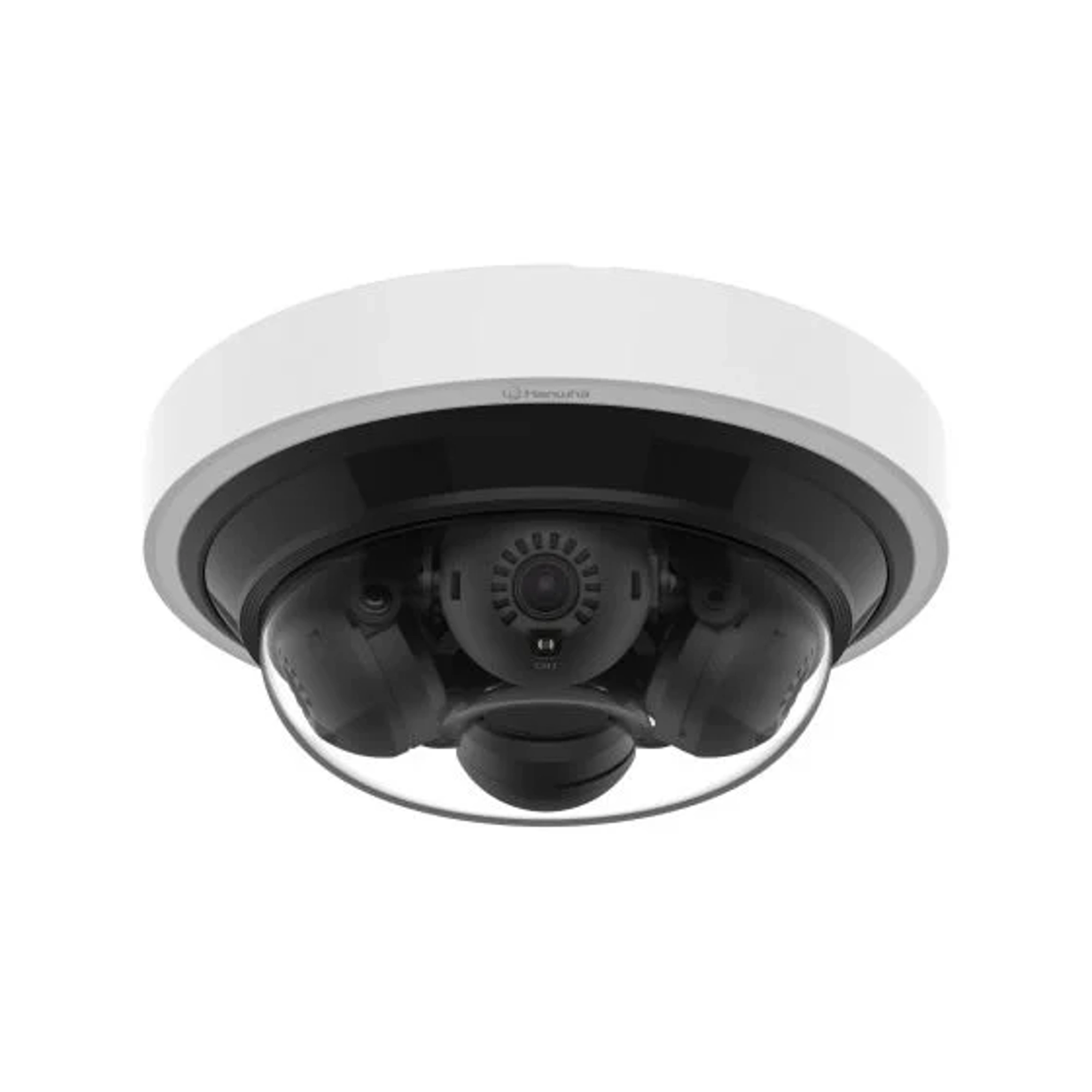

Wisenet P series network vandal outdoor mini Multi-Directional camera 4CH x 4MP @ 15FPS, Fix Lens 3.19mm (FoV H: 97°, V: 54°), triple codec H.265/H.264/MJPEG, 120dB WDR; IR viewable length 20m (65.6ft), USB port for easy installation, Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Vir
Send to a friend!
SKUPNM-C16013RVQ FeaturesAudio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range ManufacturerHanwha Vision Camera Signal Network IP Connection TypeWired Infrared Distance61~100 Feet Resolution4 Megapixel Lens TypeFixed Lens Size3.19mm Mount TypeCeiling, Wall Compression MethodH.264, M-JPEG, H.265 DurabilityVandal Resistant, Weather Resistant VoltagePoE+ Automatic Gain Control (AGC)Low / Middle / High Dimensions (W x H)200x80mm(7.87×3.15″) Electronic ShutterMinimum / Maximum / Anti flicker(1/5~1/12,000sec) Auto Prefer shutter control(Based on AI engine) Image Device1/2.8″ CMOS: each CH Minimum Scene IlluminationColor: 0.05Lux(F1.2, 1/30sec, 30IRE) BW: 0.005Lux(F1.2, 1/30sec, 30IRE), 0Lux(IR LED on) Operating Humidity0~95% RH(non-condensing) Operating Temperature-40°C~+55°C(-40°F~+131°F) Power ConsumptionPoE+: Max 23.5W, typical 13W Privacy Zone6ea, Rectangular zones – Color: Gray, Black, White ProtocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT WeatherproofIP66 Digital Noise ReductionSSNR, WiseNR(Based on AI engine) Angle of ViewH: 97° / V: 54° / D: 116° Rotation AngleFlip, Mirror, Hallway view(90°/270°) – Each channel separately Motion Detection Tracking8ea, 8point Polygonal zones Back Light CompensationBLC, WDR, SSDR Automatic White BalanceATW / AWC / Manual / Indoor / Outdoor IR Distance20m /65.6 ft AudioYes Auto Gain ControlYes Day/NightYes Digital Noise ReductionYes Automatic White BalanceYes Back Light CompensationYes Motion Detection TrackingYes Privacy MaskingYes Wide Dynamic Range
The PNM-C16013RVQ is a high-performance multi-directional AI surveillance camera designed to provide advanced security monitoring for both indoor and outdoor environments. With its cutting-edge features, this camera ensures crystal-clear video footage, even in low-light conditions, with the built-in IR LEDs.
Features
2GIG
4
Infrared
Multi-Lens
Panoramic Dome
The PNM-C16013RVQ is a high-performance multi-directional AI surveillance camera designed to provide advanced security monitoring for both indoor and outdoor environments. With its cutting-edge features, this camera ensures crystal-clear video footage, even in low-light conditions, with the built-in IR LEDs.
