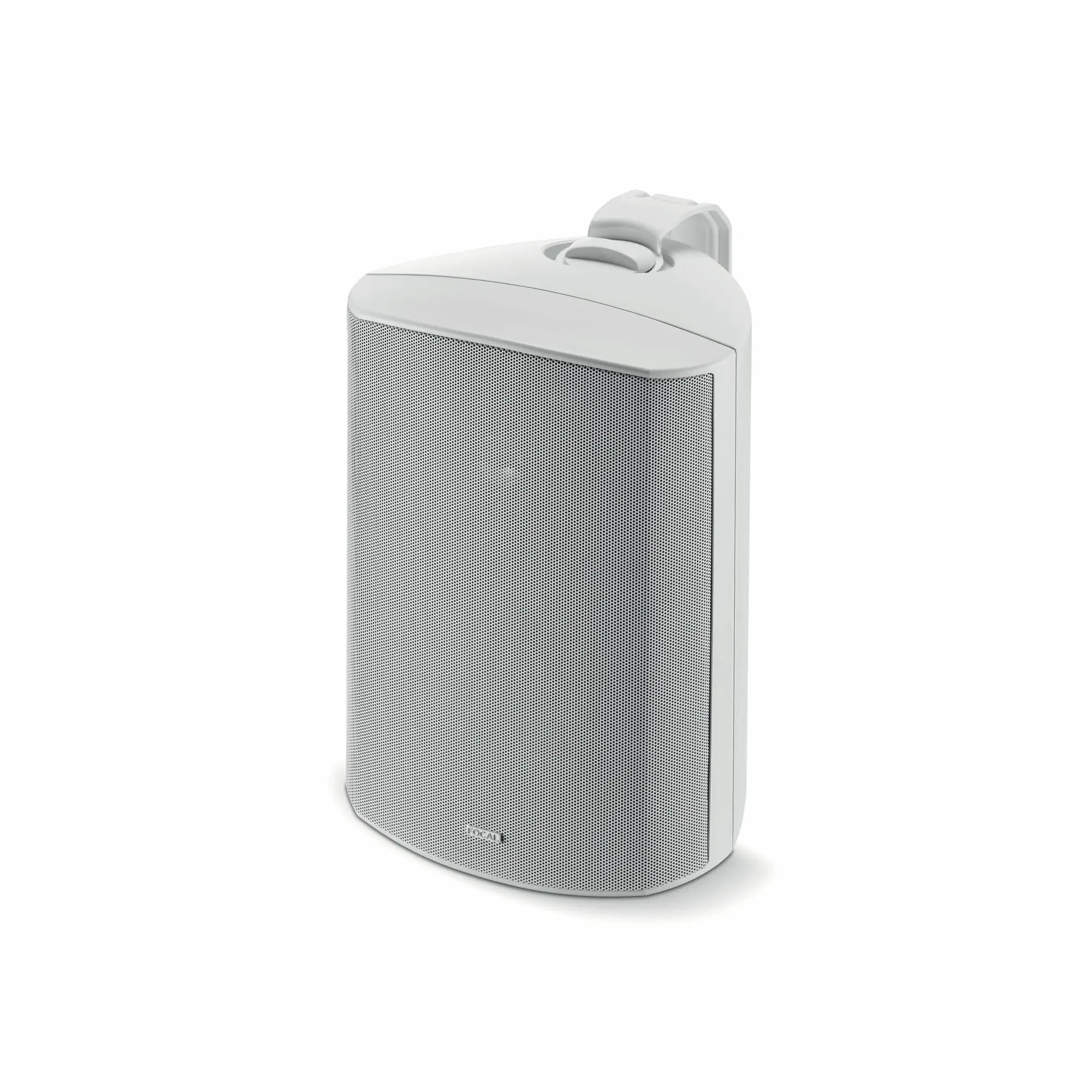

Focal 100 OD6 (white)

• Product type : Outdoor speaker
• Membrane :
• Polyglass Woofer : 61/2″ (165mm) waterproof woofer with Polyglass treatment
• Tweeter : Aluminum inverted dome tweeter
• Response at – 6dB (Low frequency point) : 55 Hz
• Frequency response (+/- 3dB) :
• 65 Hz – 23 kHz
• Minimum impedance : 6.7 O
• Nominal Impedance : 8 O
• Recommended amplifier power : 20 – 120 W
• Sensitivity : 87 dB
• Height : 319 mm / 12.6 in
• Width : 224 mm / 8.8 in
• Depth : 256 mm / 10.1 in
• Weight : 4.1 kg /
• IP rating : IP66
• Black and white felt : Black and white felt ready to stick
• Grilles : Fixed Aluminum grille, with rotating logo for vertical or horizontal installation

HIGH RESISTANCE

In addition to a high-density, UV-resistant Polypropylene damping cabinet, 100 OD6 is IP66-certified, an international standard attesting to its resistance to extreme weather conditions, soundproofing and dust resistance.

EASY INTEGRATION

Thanks to its mounting bracket and 180-degree rotation system, the loudspeaker is easy to install and position. The grille and cabinet are available in a ready-to-paint black or white finish for discreet integration in the colors of your choice.

MULTIPLE INSTALLATIONS

With its high impedance (8 ohms), the loudspeaker allows two speakers to be connected in parallel to the same amplifier output.

Inverted dome Tweeter-Optimum space dispersion

The inverted dome tweeter has been a Focal signature since 1981, offering the property of being a true micro-speaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics, enabling sound engineers to precisely control the dosage of compression. The precision of the image (height, width and depth) is remarkable, making it easy to position each instrument. What’s more, a waveguide has been developed to perfect spatialization and further enhance the inverted dome’s very low directionality. In the horizontal plane, the frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.

Outdoor 6.5″ 2-Way Speaker

100 OD 6

The 100 OD6 loudspeakers benefit from Focal know-how for high-quality sound reproduction in outdoor environments. Enjoy Focal sound in your outdoor spaces with 100 OD6, an IP-certified outdoor loudspeaker that stands up perfectly to all weathers. Benefiting from Focal’s expertise in acoustics, it features high-performance drivers for hi-fi sound in the open air.

• Cutsheet
