Focal 100 IW6

• Product type : 2-way built -in murable
• Membrane :
• Polyglass
• Medium : 6.5″ (16.5cm) Polyglass Midbass
• Response at – 6dB (Low frequency point) : 48 Hz
• Frequency response (+/- 3dB) :
• 60 Hz – 23 kHz
• Minimum impedance : 7.2 O
• Nominal Impedance : 8 O
• Recommended amplifier power : 25 – 120 W
• Sensitivity : 89 dB
• Height : 92 mm / 3.62 in
• Width : 298 mm / 11.75 in
• Depth : 195 mm / 7.69 in
• Weight : 1.85 kg /
• Depth behind surface (Mounting depth) : 3.44 in / 3.44 in
• Black and white felt : Black and white felt ready to stick
• Cut Out template : Yes
• Grilles : Ready-to-paint grille

PRECISE ACOUSTICS

The IW6 features an adjustable aluminum inverted dome tweeter and a 16.5 cm Polyglass cone loudspeaker. For even better acoustics, adapted to the listening room, correctors equalize the treble and midrange registers.

COMPACT INSTALLATION

Thanks to its shallow depth (-10 cm), the loudspeaker fits discreetly into walls and is compatible with a wide range of configurations. Its magnetic grille adds a final touch of design and refinement to your installation.

HI-FI OR HOME CINEMA

With an extended frequency response from 60 Hz to 23 kHz, the IW6 is an easy-to-power loudspeaker. Combined with any hi-fi or Home Cinema amplifier, it reveals its performance, synonymous with sound immersion.

• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille

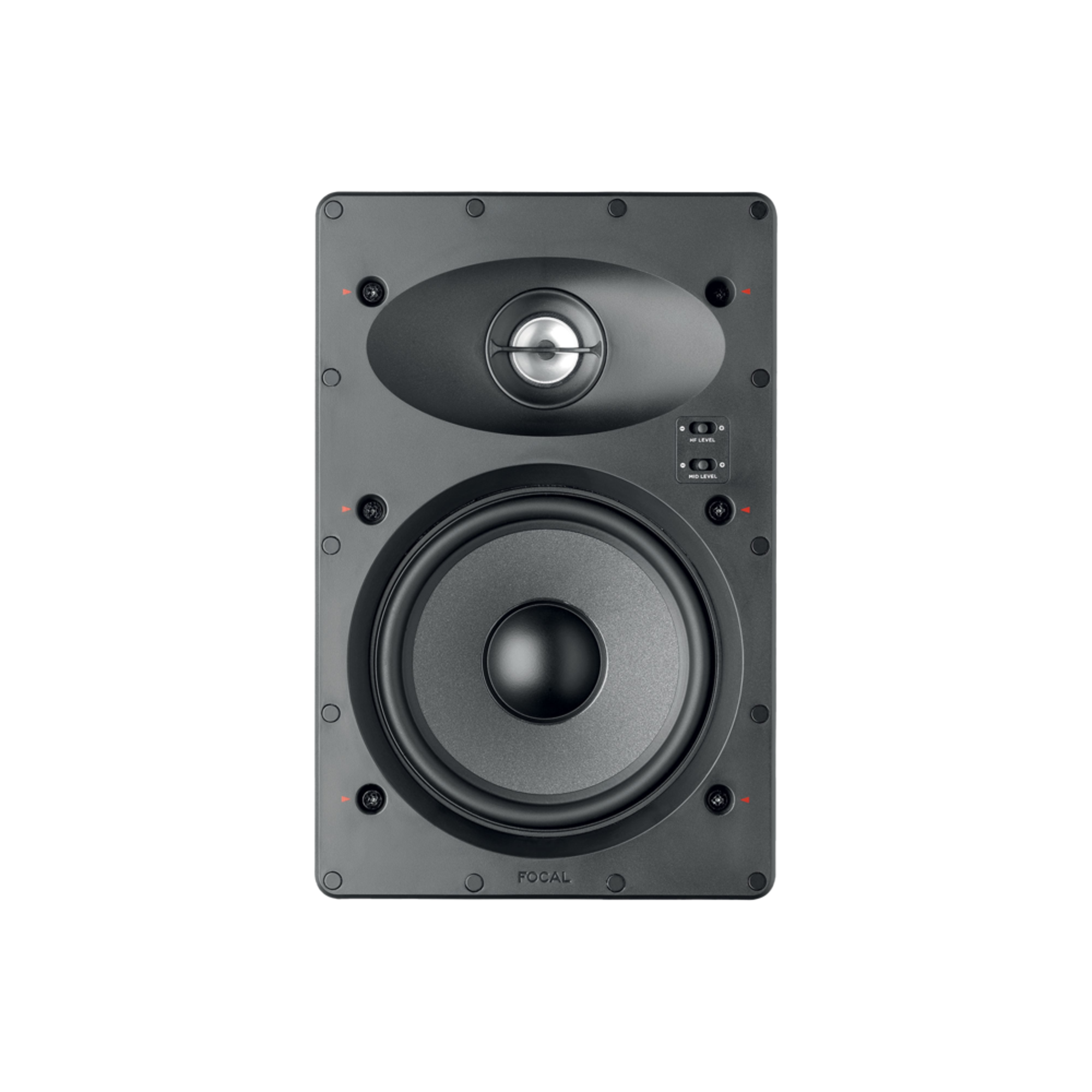

6.5″ In-Wall Speaker

100 IW6

The IW6 stands out for its impressive sound reproduction in relation to its compactness. This integrated loudspeaker is ideally suited to small to medium-sized spaces, whether for sound diffusion in a hallway or living room, stereo listening in a bedroom or kitchen, or home theater.

• Cutsheet
