Focal 1000 IW6

• Product type : 2-way closed wall
• Membrane :
• W cone
• Medium : 6.5″ (16.5cm) “W” Midrange/Bass
• Response at – 6dB (Low frequency point) : 45 Hz
• Frequency response (+/- 3dB) :
• 55 Hz – 44 kHz
• Minimum impedance : 7 O
• Nominal Impedance : 8 O
• Recommended amplifier power : 25 – 150 W
• Sensitivity : 88 dB
• Height : 435 mm / 17.12 in
• Width : 305 mm / 12 in
• Depth : 101 mm / 4 in
• Weight : 6.75 kg /
• Mounting height : 406 mm / 16 in
• Mounting width : 276 mm / 10.87 in
• Depth behind surface (Mounting depth) : 3.87 in / 3.87 in
• Black and white felt : Black and white felt ready to stick
• Cut Out template : Yes
• Grilles : Delivred with magnetic grille

Sensational sound

Featuring the very best Focal technologies, the three loudspeakers deliver sensational high-fidelity sound. Combined with an exclusive design that allows them to be perfectly adjusted to the listening position, films and music take on another dimension.

Personalization

Thanks to the tweeter’s level adjustment (+/-20°) and tilting capability, you can tailor your installation perfectly to your listening room.

Discretion

With its ready-to-paint magnetic grille and extremely precise, robust design, this enclosed loudspeaker blends easily and discreetly into walls.

Specifications

• Type of speaker 2-way closed-back in-wall
• Speaker drivers 6 1/2″ (16.5cm) Bass/Midrange, 1″ (27mm) Pure Beryllium inverted dome tweeter
• Sensitivity (2.83V/3 feet – 1m) 88dB
• Bandwidth (+/-3dB) 55Hz – 40kHz
• Low-frequency cut-off (-6dB) 45Hz
• Nominal impedance 8 O
• Minimal impedance 7 O
• Recommended amp power 25 150W
• Ext. size (H x L x D) 17 1/8 x 12 x 4″ (435 x 305 x 101mm)
• Mounting dimensions (H x L) 16 x 10 7/8″ (406 x 276mm)
• Mounting depth 3 7/8″ (99mm)
• Net weight (with grille) 14.88lbs (6.75kg)
• Box size (length x depth x height) 15 3/8 x 22 7/8 x 8 1/2″ (390 x 580 x 215mm)
• Total weight (with packaging) 18.74lbs (8.5kg)

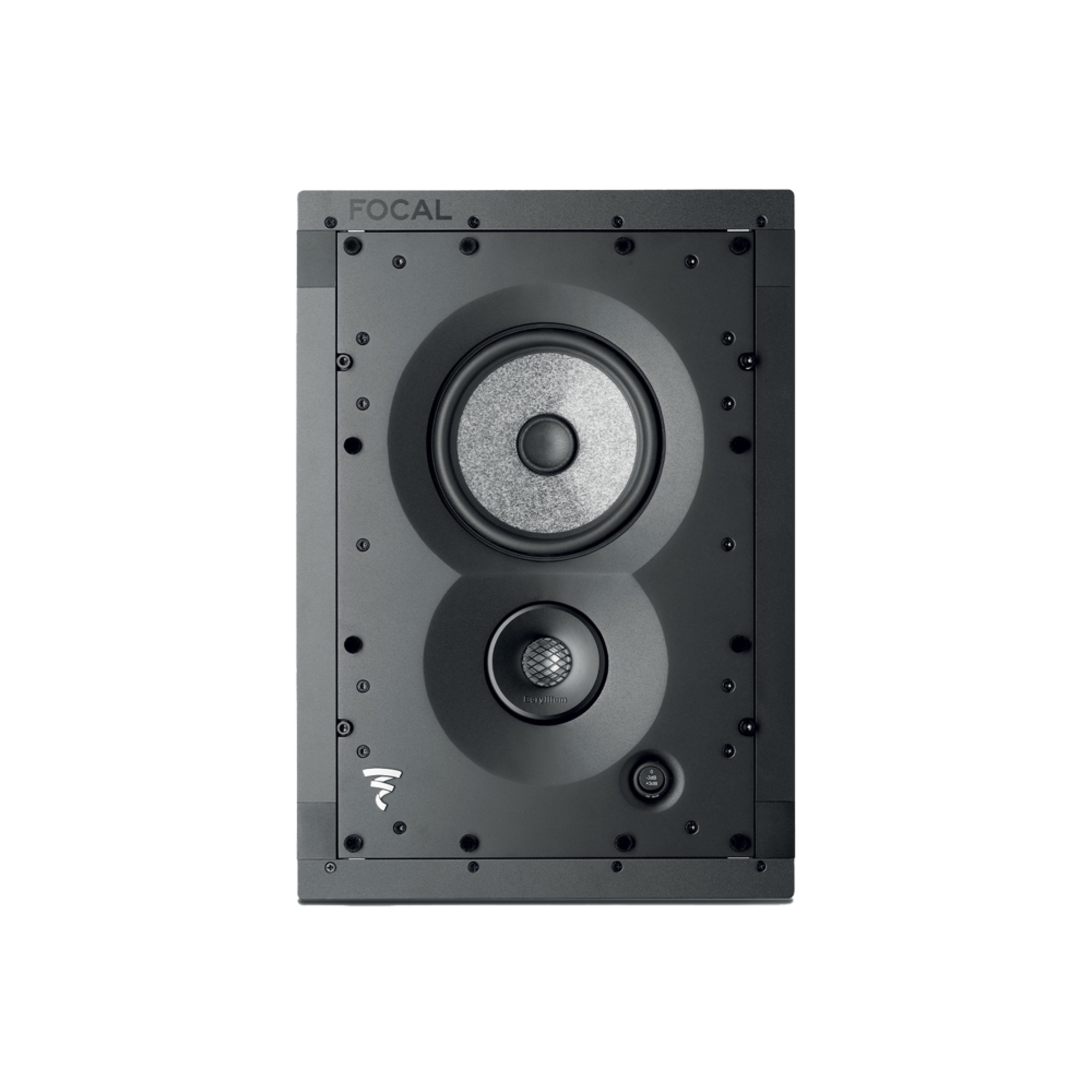

6.5″ In-Wall Speaker

1000 IW6

The 1000 IW6 integrated loudspeaker offers a truly compact, invisible alternative to a traditional acoustic installation for your home. Thanks to its sound performance, it’s the ideal choice for a home cinema system, especially as a rear channel integrated into a wall, offering musical, high-performance sound reproduction.

• Cutsheet
