Fluke FLUKE-107 ESP

SKU: FLU-FLUKE-107 ESP

MPN: FLUKE-107 ESP

Description

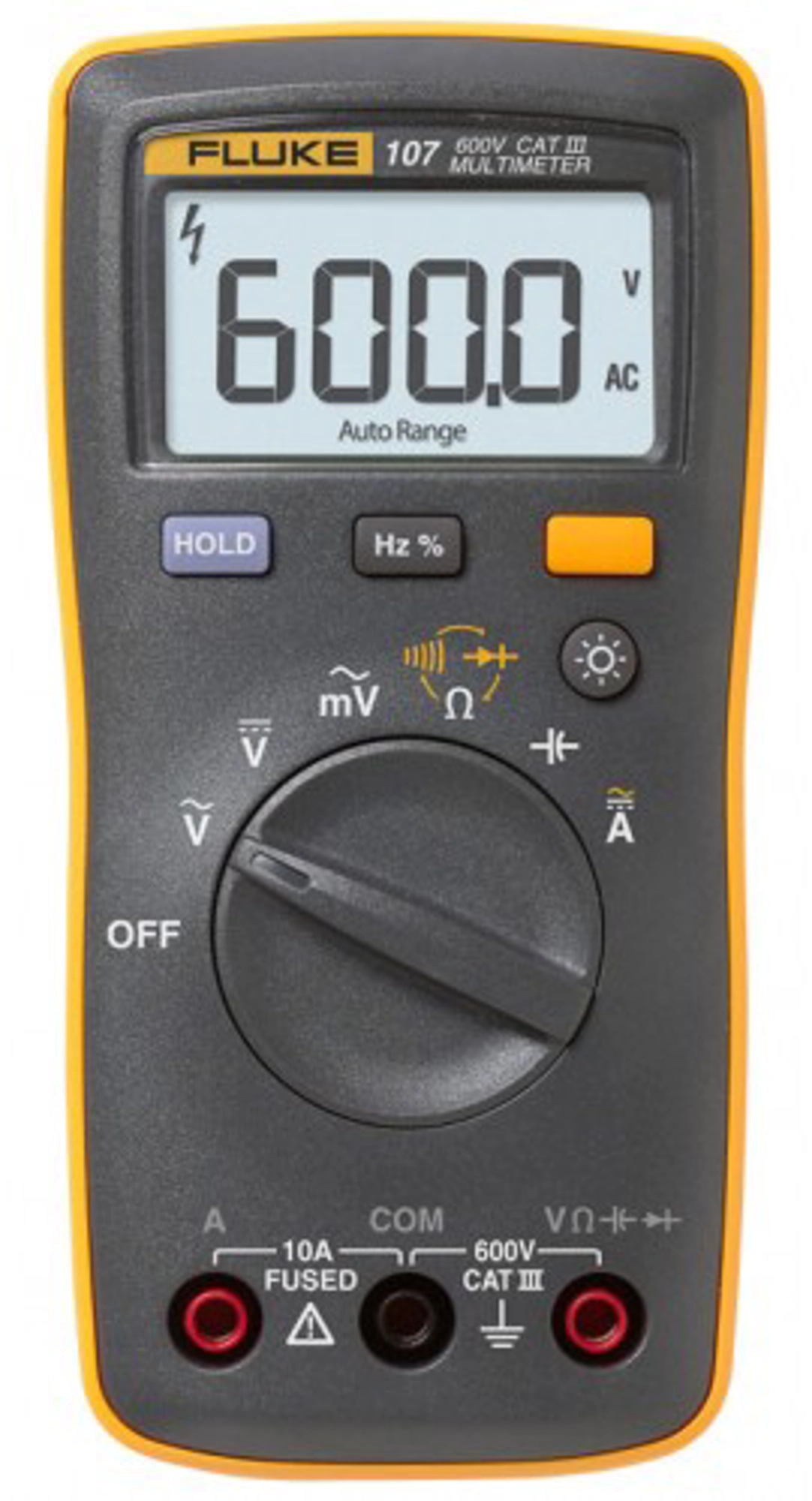

Fluke 107 ESP Palm-Sized Digital Multimeter, CAT III, 600 V

Add to Wishlist

Send to a friend!

Electrical Specifications
AC Volts (40 to 500 Hz) Range: 6, 60, 600 V
Resolution: 0.001, 0.01, 0.1 V
Accuracy: 1.0% + 3
DC Volts Range: 6, 60, 600 V
Resolution: 0.001, 0.01, 0.1 V
Accuracy: 0.5% + 3
AC Millivolts Range: 600 mV
Resolution: 0.1 mV
Accuracy: 3.0% + 3
Diode Test Range: 2 V
Resolution: 0.001 V
Accuracy: 10%
Resistance (Ohms) Range: 400 O, 4, 40, 400 kO, 4, 40 MO
Resolution: 0.1 O, 0.001, 0.01, 0.1 kO, 0.001, 0.01 MO
Accuracy: 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 1.5% + 3
Capacitance Range: 50, 500 nF, 5, 50, 500, 1000 µF
Resolution: 0.01, 0.1 nF, 0.001, 0.01, 0.1, 1µF
Accuracy: 2% + 5, 2% + 5, 5% + 5, 5% + 5, 5% + 5, 5% + 5
Frequency (10 Hz to 100 kHz) Range: 50, 500 Hz, 5, 50, 100 kHz
Resolution: 0.01, 0.1 Hz, 0.001, 0.01, 0.1 kHz
Accuracy: 0.1% + 3
Duty Cycle Range: 0.1 to 99.9%
Resolution: 0.1%
Accuracy: 1% typical
AC Current (40 to 200 Hz) Range: 4, 10 A
Resolution: 0.001, 0.01 A
Accuracy: 1.5% + 3
DC Current (40 to 200 Hz) Range: 4, 10 A
Resolution: 0.001, 0.01 A
Accuracy: 1.5% + 3
Backlight Accuracy: Yes
AC Volts Overload protection: 600 V
Input impedance (nominal): >10 MO, <100 pF Common mode rejection ratio: >60 dB at DC, 50 or 60 Hz
AC Millivolts Overload protection: 600 mV
Input impedance (nominal): >1 M, <100 pF Common mode rejection ratio: >80 dB at 50 or 60 Hz
DC Volts Overload protection: 600 V
Input impedance (nominal): >10 MO, <100 pF Common mode rejection ratio: >100 dB at DC, 50 or 60 Hz
Normal mode rejection ratio: >45 dB at 50 or 60 Hz
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 600 V
Display (LCD) 6000 counts, updates 3/sec
Battery Type 2 x AAA Batteries, NEDA 24A, IEC LR03
Battery Life 200 hours minimum
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: -22 to 140°F (-30 to 60°C)
Operating Humidity: Non-condensing when <50°F (<10°C) =90% at 50 to 86°F (10 to 30°C) =75% at 50 to 104°F (30 to 40°C) Operating Humidity, 40 MO Range =80% at 50 to 86°F (10 to 30°C) =70% at 50 to 104°F (30 to 40°C) Altitude Operating: 6561.7' (2000 m) Storage: 39,370.1' (12,000 m) Temperature Coefficient 0.1 X (specified accuracy)/°C (<18 or >28°C)
Fuse Protection for Current Inputs 11 A, 1000 V fast fuse
Dimensions 5.6 x 2.7 x 1.1″ (142 x 69 x 28 mm)
Weight 0.44 lb (200 g)
IP Rating IEC 60529: IP40
Safety IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment IEC 61326-1: portable

Enabled with current and voltage measurement functions, in a compact size
Measures resistance & continuity to check for broken wires
Data hold and backlit display to keep you working safe and fast
Ergonomic and rugged
Comfortable grip, only weighs 200g and easy to carry
Rugged enclosure and 3.3′ (1 m) drop test
Full-parameter automatic range test, which is convenient and quick to test; at the same time, it reduces the number of rotations of the wave plate and prolongs the life of the instrument
6000-word large screen LCD backlight display
Battery powered, automatic power save mode
Data retention feature makes it easier to read measurement results
Compliant with IEC61010-1 CATIII 600V overvoltage protection safety standard

Brand:
Fluke

Features

AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Capacitance measurement
Diode measurement
Frequency and duty cycle test and other functions to meet basic electrical maintenance, electrical measurement, and electronic measurement applications
Applications

Basic electrical maintenance
Electrical measurement
Electronic measurement
