ELK Products ELK-POE47TS

• LAN Bandwidth: 10/100 Mbps
• Supported PoE standard: 802.11at
• PoE Power Requirements: 48VDC – 57 VDC, minimum of 18W per PoE port
• Power Output (when used with PoE switch or injector): 12VDC, 1.5A
• Size: 1.125″ x 1″ x 3.188″ with 15″ cable

• RJ45 port and pre-wired touchscreen connector for easy installation
• Power and Network LEDs indicators
• 15 cable to touchscreen

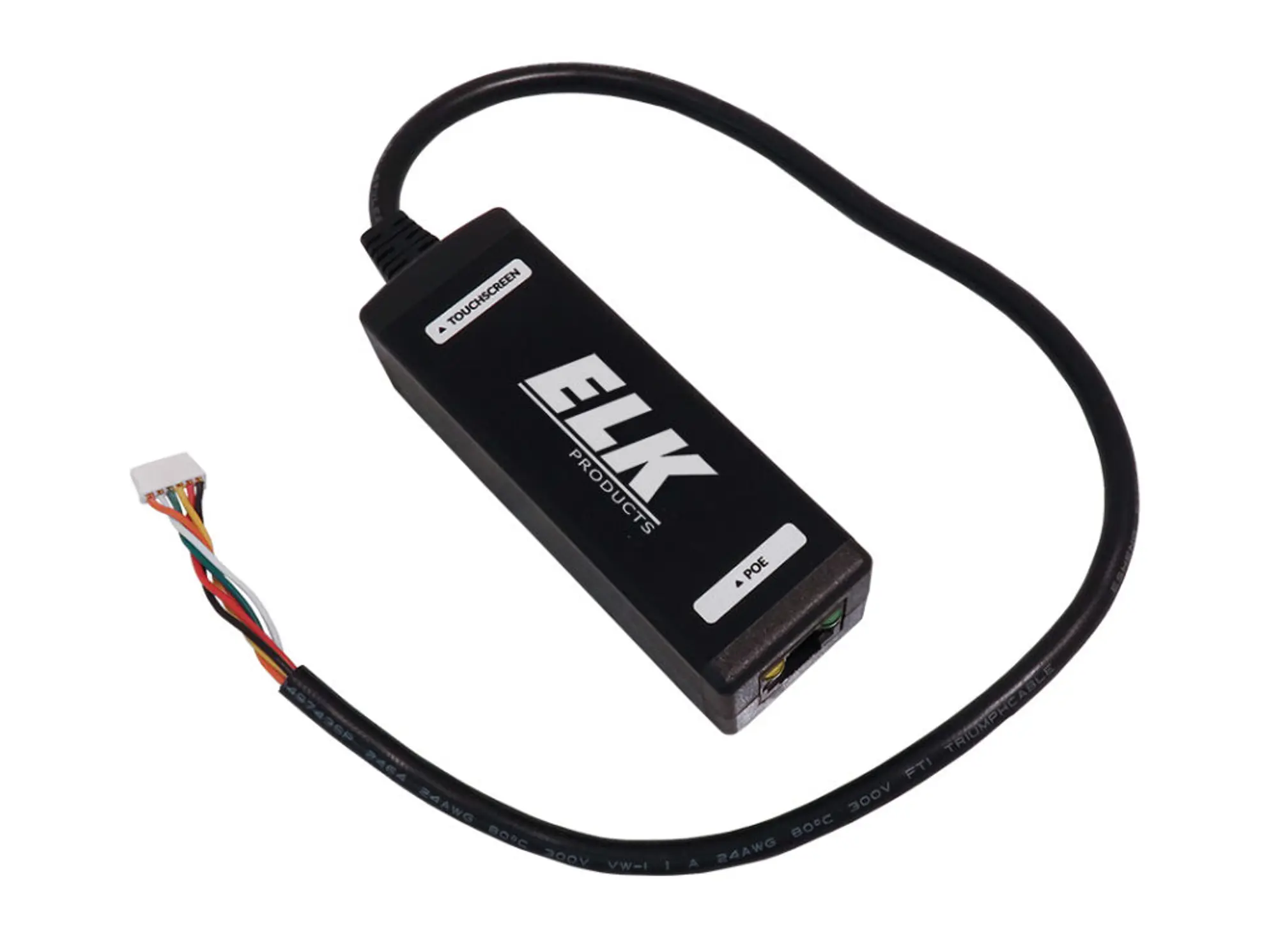

Ethernet & PoE Adapter for ELK-7TS Touchscreen

ELK-POE47TS

The ELK-POE47TS is an Ethernet and PoE Adapter designed for use with the ELK-7TS Touchscreen. It provides two different functions as described below.

The ELK-POE47TS can be used as an Ethernet adapter. It provides a method of connecting the ELK-7TS to a network via a network patch cable when Wi-Fi is unavailable or not preferred. When used in this manner, a separate 12VDC power source must be connected to the dedicated power connector of the touchscreen.

The ELK-POE47TS can also be used to provide both power and network connectivity to the ELK-7TS when used in conjuction with a PoE enabled switch or PoE injector. When used in this manner, power must be supplied by the PoE switch or injector.
