ELK Products 6040
SKU: ELK-6040
MPN: 6040
Description
Wireless Glass Break Detector, Two-Way for M1XRFTW
Send to a friend!
SKU: ELK-6040
MPN: 6040
Wireless Glass Break Detector, Two-Way for M1XRFTW
Send to a friend!
902 Mhz – 928 Mhz frequency hopping
Dimensions: 4.25″W x 3.13″H x 1.70″D
Sensor: Omni-directional Microphone, 360° Detection Range
Detection Range: 20 ft. (6m) x 360°
Min. Distance from Glass: 4 ft. (1.2m)
Glass Thickness:
– Plate 3/32 to 1/4 in. (2.4 to 6.4mm)
– Tempered 1/8 to 1/4 in. (3.2 to 6.4mm)
– Wired 1/4 in. (6.4mm)
– Laminated 1/8 to 1/4 in. (3.2 to 6.4mm)
Power: One CR123 3.0 VDC Lithium Bttery
Typical Battery Life: 5 years
Compatible with ELK-M1XRFTWM two-way wireless transceivers
Pattern Recognition Technology™
Wireless two-way communication
Operation Alarm LED – RED (viewable from front)
RF Acknowledge LED – Bi-Color (viewable with cover off)
Long life Lithium battery {supplied}
Low battery trouble signal
Elk

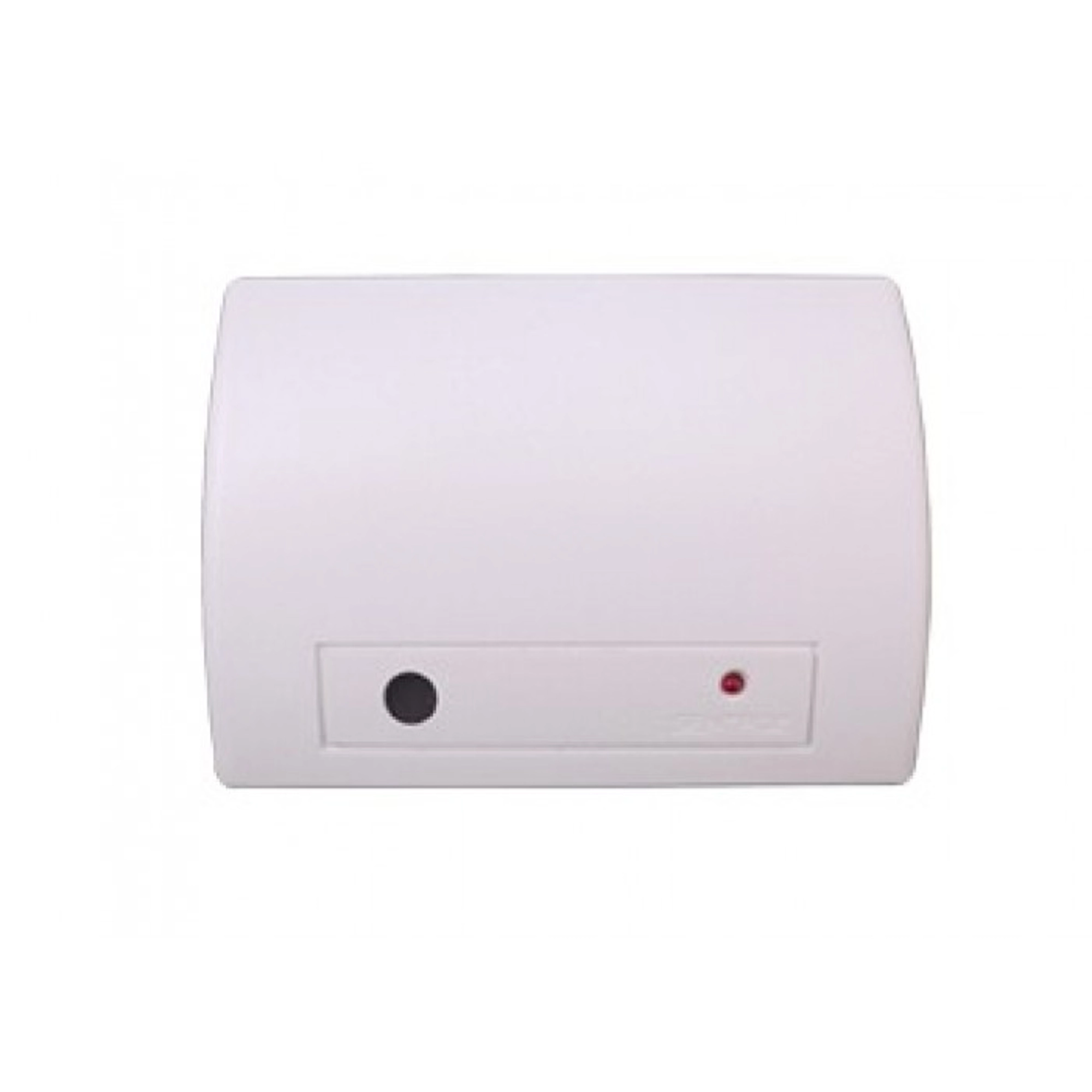

The ELK-6040 Wireless Glass Break Sensor is designed for use with Elk’s two-way wireless product line consisting of the ELK-M1XRFTW Transceiver and the ELK-M1 Control.
The 6040 listens for actual patterns of breaking glass across the full audio band using Pattern Recognition Technology™. The factory set recognition patterns make it possible to detect the difference between breaking glass of framed perimeter windows in a building vs. a drinking glass breaking within a room.
