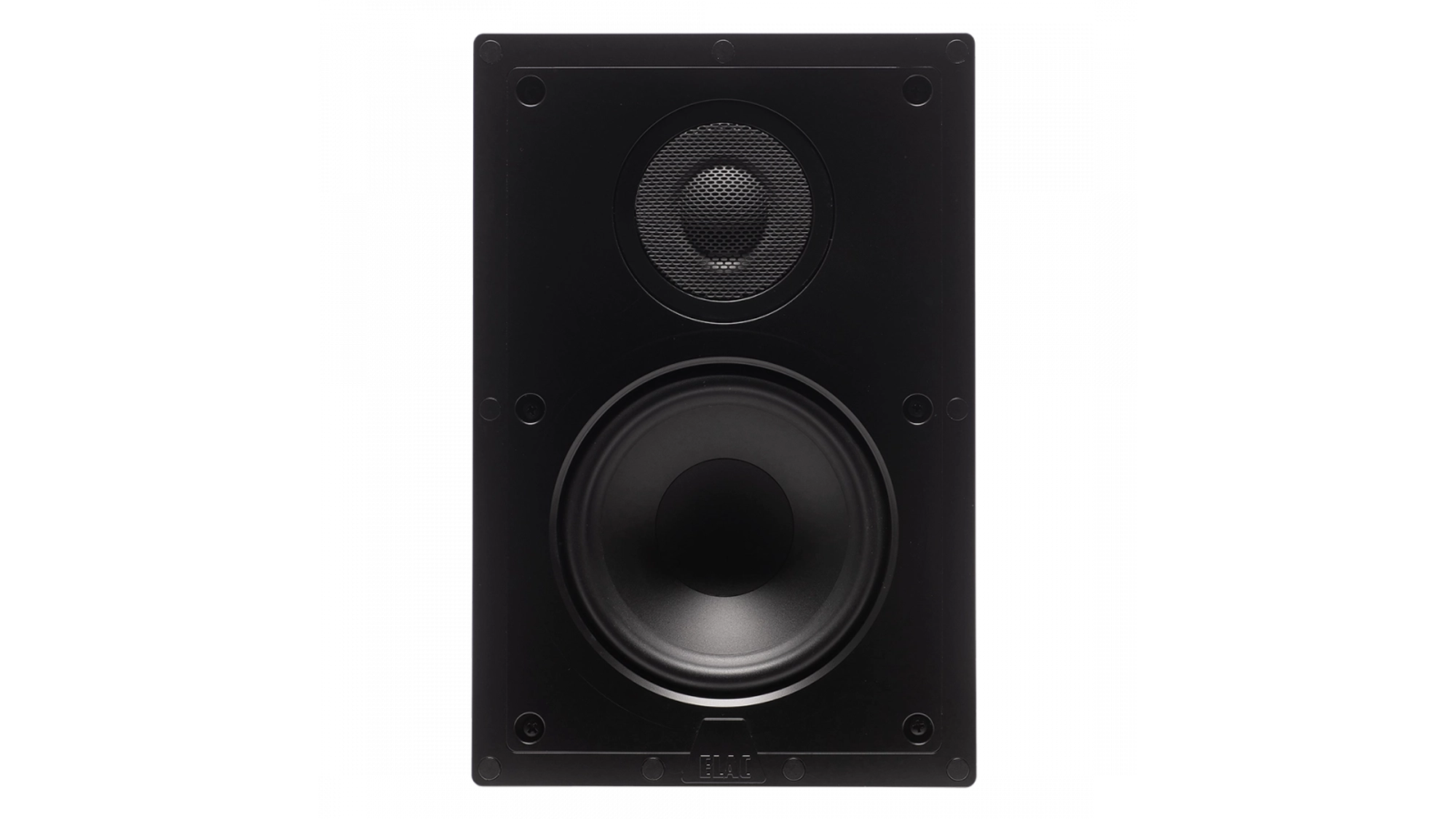

ELAC IW-V61

.

Recognized around the world for manufacturing speakers with exceptional build quality and unmatched performance at affordable prices, ELAC continues to deliver with our new Vertex Series of speakers.

Custom Silk-Dome Tweeter

Custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response

Custom-designed Woofers with Polypropelyne Cone

Polypropylene is employed due to its improved internal damping and smooth high frequency roll-off

Intricate Crossover

A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the drivers

Speaker type2-way, rear side openTweeter1-inch soft domeWoofer6.5-inch polypropylene coneCrossover frequency3,000 HzFrequency response45 to 20,000 HzSensitivity90 db at 2.83 v/1mRecommended amplifier power30 to 120 WattsNominal/peak power handling50/120 WattsNominal impedance6 OhmFinishBlack baffle/White grilleGrilleMetal magnetic / PaintableAccessories includedCutout template, manualDimensions (Height)12.69 in / 322.3 mmDimensions (Width)8.48 in / 215.3 mmCut-out (Height)11.61 in / 295 mmCut-out (Width)7.36 in / 187 mmMounting depth3.94 in / 100 mm

Vertex I In-Wall Speaker

IW-V61

Sold as each. Add quantity 2 to your cart to purchase a pair of these speakers.

With a slim profile, the easily installed Vertex in-ceiling speakers expand the Integrator Series of custom products. Keeping our philosophy of providing our core technologies across product lines, the Vertex series of speakers will match and complement bookshelf, floorstanding, on-wall, and in-wall products.

• Cutsheet
