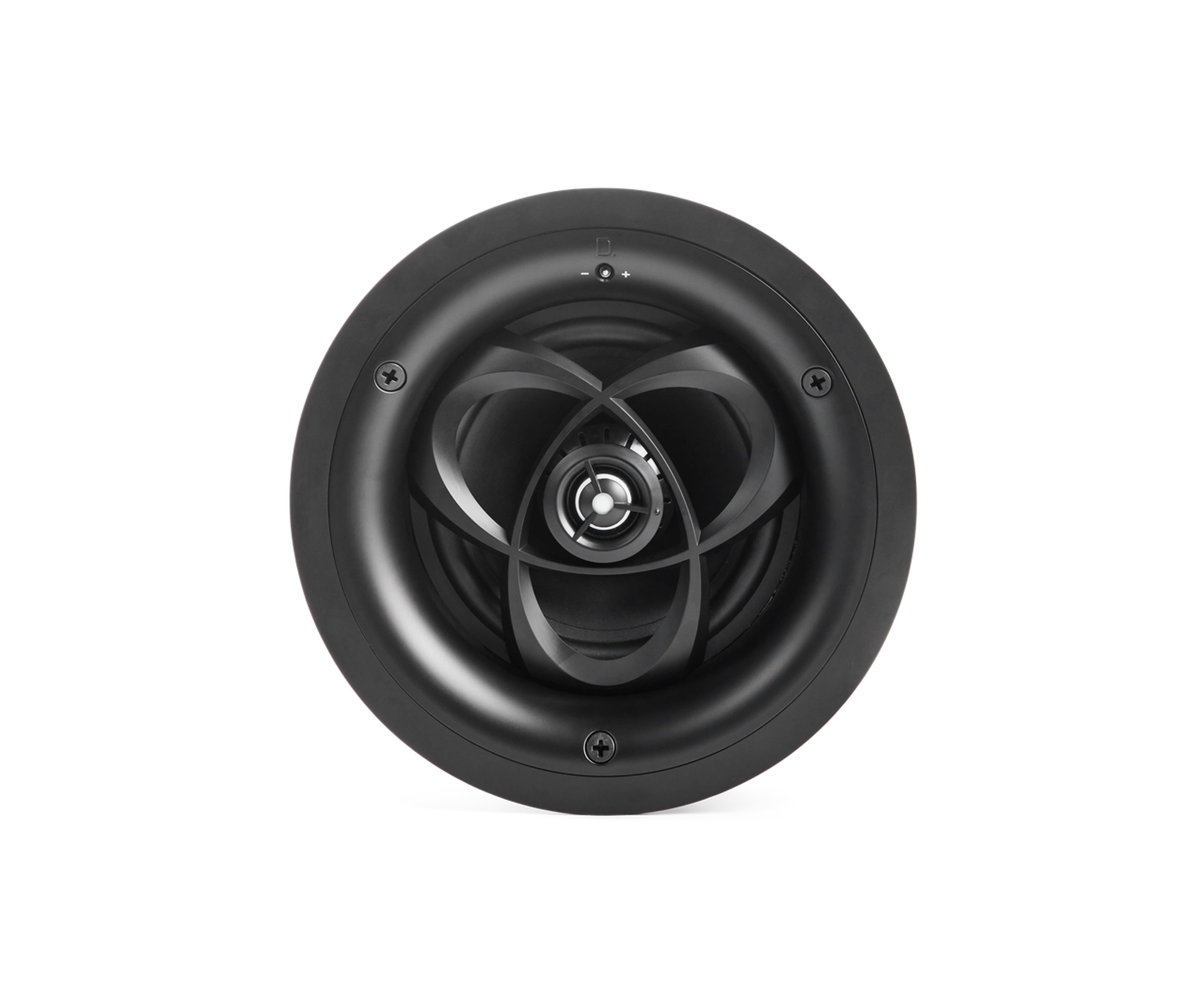

Definitive Technology DC-65 Max

• Product Dimensions (Diameter) 9.88 in (250.9 mm)
• Cut- Out Dimensions (Diameter) 8.71 in (221.3 mm)
• Mounting Depth 5.17 in (131.3 mm)
• Weight 4.89 lbs (2.22 kg)
• Color White Paintable Grille
• Grille material Micro-Perforated Magnetic Grille
• Tweeter 1 in Pivoting Aluminum Oxide Dome Tweeter
• Midrange/Midbass 6.5 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™
• Frequency response 31 Hz30 kHz (-10 dB)
• 49 Hz25 kHz (-3 dB)
• Nominal impedance 6O
• Sensitivity 84dB (2.83V/1m)
• Recommended Amplifier Power 20-150W
• IP Rating (Ingress Protection) IP55
• Warranty 5 years
• Included accessories Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide

Iconic Definitive Sound

Signature acoustic technologies provide clear, consistent sound for home and commercial systems.

Simple, Toolless Installation

Install speakers in minutes using an innovative two-piece, toolless mounting system.

All-Weather Protection

Enjoy high-performance sound in any living spaceindoors or out.

• 6.5″ Pivoting BDSS Woofer with Linear Response Waveguide™
• 1″ Pivoting Aluminum Oxide Dome Tweeter
• Toolless Installation
• Flush, Border-Free Design
• IP55-Rated

Premium In-Ceiling Speaker with 6.5″ Pivoting Woofer

Dymension DC-65 MAX

Dymension CI™ MAX premium in-ceiling speakers deliver precise sound for high-performance home theater and whole-home systems, with features like our patented pivoting woofer; discreet, flush-mount design; and robust weather protection.

Compatible with 300914-01-00-050 Pre-Construction Bracket
