Definitive Technology DM30

• Dimensions (H x W x D) 7.5 x 31.5 x 15.9 in. (190 x 800 x 403 mm)
• Weight 54 lbs (24.5kg)
• Color Black
• Grille material Acoustically transparent black cloth (not removable)
• Orientation Horizontal
• Tweeter (1) 1 in. aluminum oxide dome
• Midrange/Midbass (4) 5.25 in. BDSS™ with Linear Response Waveguide™
• Subwoofer system driver complement (1) 8 in. subwoofer
• (2) 8 in. passive radiators
• Frequency response 36 Hz30 kHz (-10dB)
• 41 Hz23 kHz (-3dB)
• Nominal impedance 6O (8O compatible)
• Sensitivity 93dB (2.83V/1m)
• Recommended amplifier power rating 50-300W
• Intelligent bass control Variable +12dB/-15dB
• Warranty Drivers 5 years/Amplifier 3 years

Crystal Clear, Detailed Vocals

An aluminum oxide tweeter delivers crisp detail for unrivaled nuance and speech intelligibility.

Maximum Impact

A built-in subwoofer and passive radiators deliver big bass impact, front and center.

Every Seats the Best Seat

Linear Response Waveguide™ extends dispersion for exceptional sound everywhere in the room.

• Four 5.25 BDSS™ Midrange Woofers with Linear Response Waveguide™
• Built-in 8″ Subwoofer & Dual 8″ Bass Radiators
• 1″ Aluminum Oxide Dome Tweeter
• Patented Intelligent Bass Control
• Acoustically Transparent Black Grille Cloth

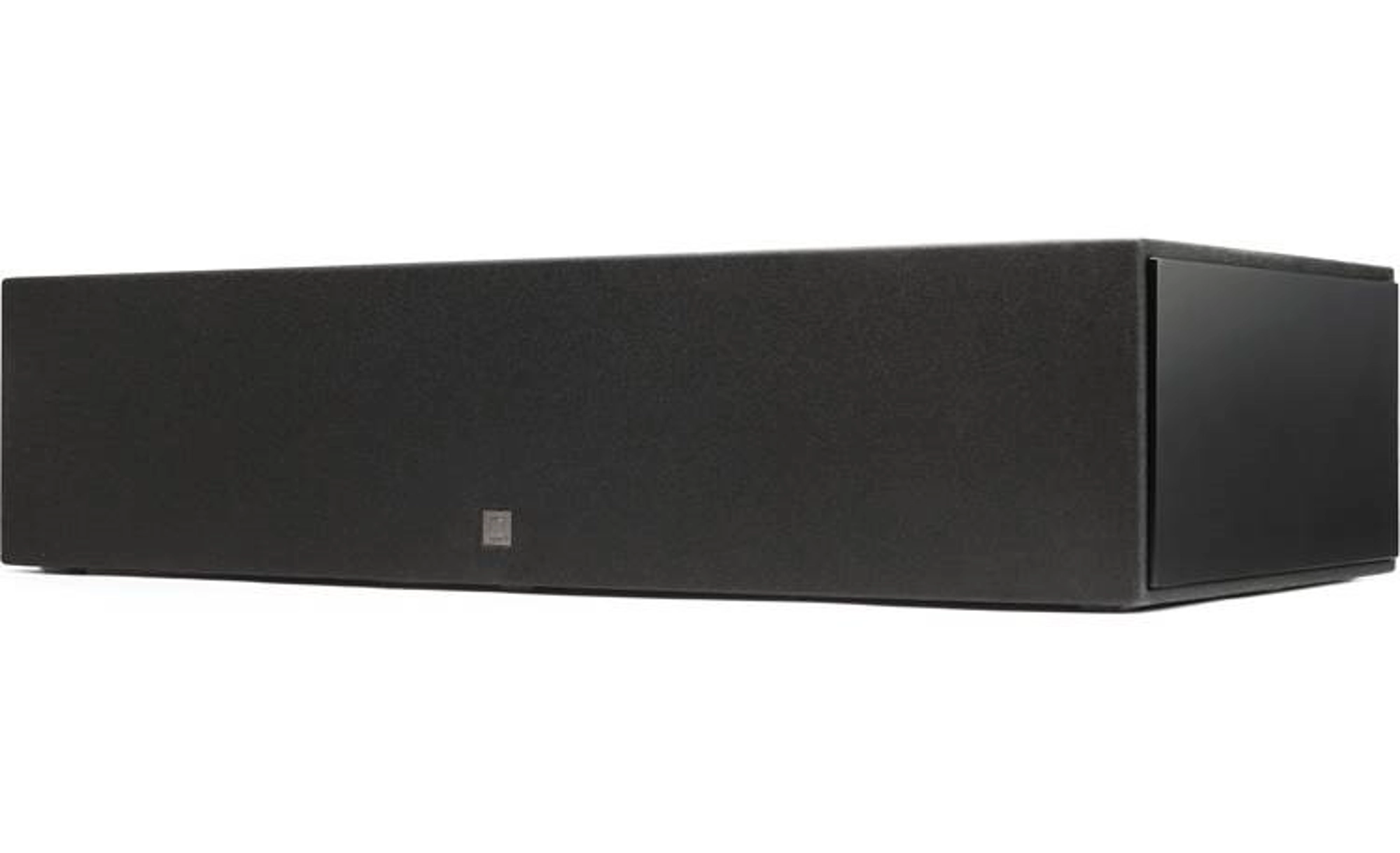

Flagship Center Channel Speaker with Integrated Sub and Bass Radiators

Dymension DM30

The Dymension™ DM30 flagship center channel speaker combines a five-driver array with an integrated subwoofer and bass radiators to deliver full-range sound with superior vocal clarity and maximum bass impact.
