Cleerline Technology SSF-TRIHOLEP
SKU: CLF-SSF-TRIHOLEP
MPN: SSF-TRIHOLEP
Description
Cleerline Trihole fiber optic strippers w/SSF Polymer Removal
Send to a friend!
SKU: CLF-SSF-TRIHOLEP
MPN: SSF-TRIHOLEP
Cleerline Trihole fiber optic strippers w/SSF Polymer Removal
Send to a friend!
SPECIFICATIONS
Compatible Cables SSF™
and Traditional Fiber Optic Cables
Max Jacketed Cable Diameter 3.0 mm
Number of Stripping Openings 3
Openings• 1.6 – 3.0 mm — 600 – 900 µm: SSF™
& Traditional Fiber Jacket Removal
• 250 – 900 µm — 125 µm: Traditional Fiber Prep & SSF™
Fusion Splicing
• 125 µm — SSF™
: Removal of SSF™ Polymer For Fusion Splicing ONLY
Length 6” / 152 mm
This stripping tool is not intended for use when installing mechanical splices, such as Cleerline SSF™ connectors, on SSF™ fiber. SSF™ polymer coating must remain in place for non-fusion splicing applications.

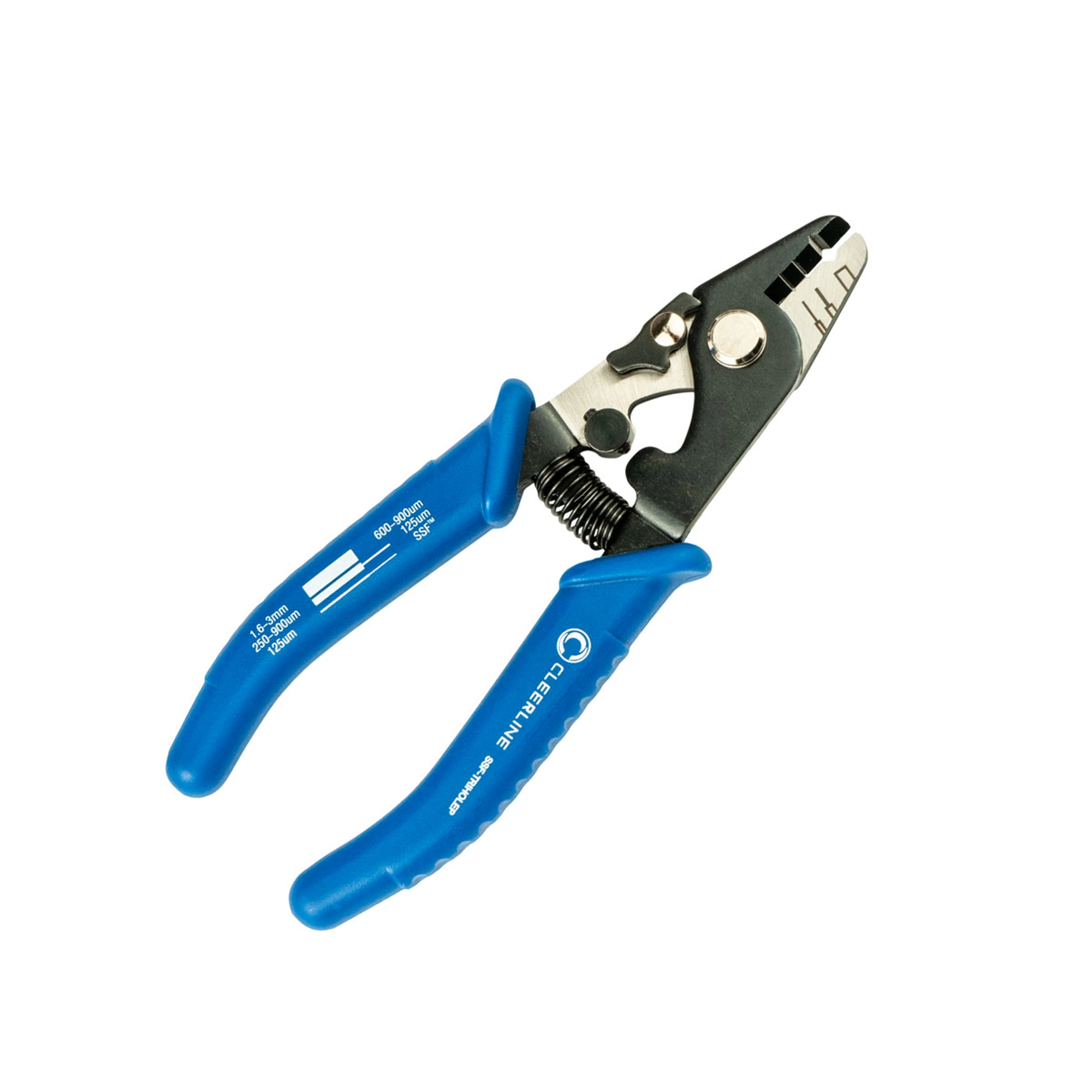

The Cleerline SSF™ Tri-Hole Fiber Optic Stripping Tool allows the easy removal of SSF™ patented polymer coating. Use these strippers to prepare SSF™ fiber for fusion splicing.
Successful fusion splicing of SSF™ fibers requires complete removal of the protective SSF™ polymer coating at the glass level.
The SSF-TRIHOLEP has three openings, allowing preparation of SSF™ or traditional fibers with up to a 3.0 mm jacket.
Each stripping tool package includes a bristled brush for maintenance of the tool’s openings.
FEATURES AND BENEFITS
Allows complete removal of SSF™ polymer coating for fusion splicing
Compatible with traditional and SSF™ fibers with up to a 3.0 mm outer diameter
Includes brush for maintenance.
Strippers
Cleerline Fiber SSF
The Cleerline SSF™ Tri-Hole Fiber Optic Stripping Tool allows
the easy removal of SSF™ patented polymer coating. Use
these strippers to prepare SSF™ fiber for fusion splicing.
Successful fusion splicing of SSF™ fibers requires complete
removal of the protective SSF™ polymer coating at the glass
level.
This stripping tool is not intended for use when installing
mechanical splices, such as Cleerline SSF™ connectors. SSF™
polymer coating must remain in place for non-fusion splicing
applications.
The SSF-TRIHOLEP has three openings, allowing preparation
of SSF™ or traditional fibers with up to a 3.0 mm jacket.
Each stripping tool package includes a bristled cleaning brush
for maintenance of the tool’s openings.
For more information, refer to the instructional videos at
cleerline.com/resources
