Cleerline Technology SSF-TKITP-500
SKU: CLF-SSF-TKITP-500
MPN: SSF-TKITP-500
Description
Professional Fiber Test Kit
Send to a friend!
SKU: CLF-SSF-TKITP-500
MPN: SSF-TKITP-500
Professional Fiber Test Kit
Send to a friend!
m
POWER METER LIGHT SOURCE
OPTICAL POWER METER
Wave Range 800~1700nm
Connector Universal joint FC/SC/ST
Detector Type lnGaAs
Power Range -70~+10dBm -50~+26dBm
Uncertainty ±5%
Standard Wave 850/980/1300/1310/1490/1550/1625/1650nm
Custom Wave 50
Display Resolution Linear display : 0.1 %
Logarithmic display: 0.001/0.01/0.1dBm
Identified Frequency 270Hz, 330Hz, 1 kHz, 2kHz
Storage 1000 items
VISUAL FAULT LOCATION
Wavelength 650±30nm
Output Mode 10mW
Mode CW/1Hz/2Hz
Connector Universal joint FC/SC/ST
RJ45 CABLE SEQUENCE
Test Range =300 meters
RJ45 CABLE TRACKING (OPTIONAL)
Test Range =300 meters
Tracking Mode Digital tracking
Live/line to line
search
Support

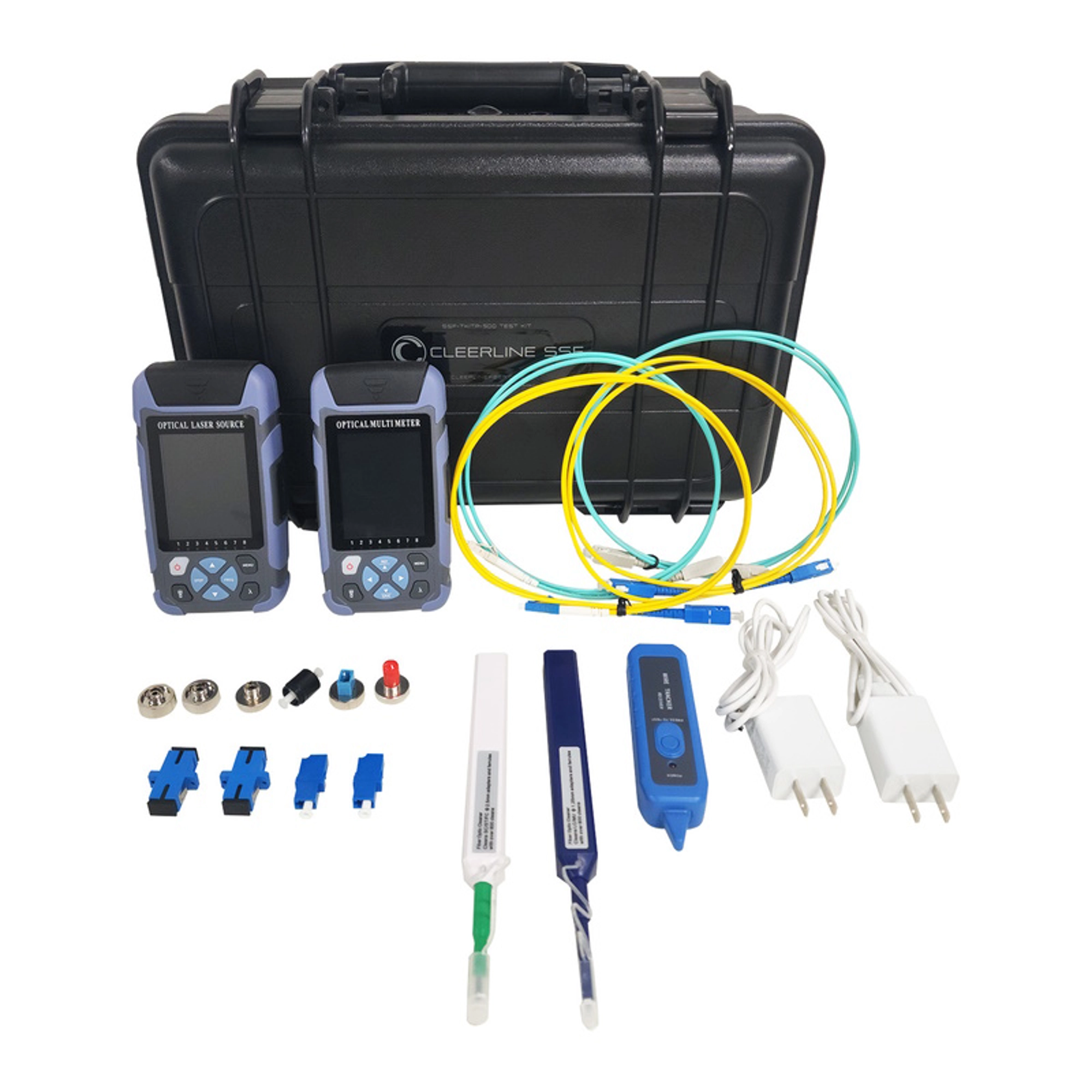

Cleerline SSF-TKITP-500 Includes
(1)Power Meter
(1) Light Source
(2) 5.0 V Power Supply & USB-C Charging Cable
(1) SC-SC OM3 Reference Patch Cable
(2) LC-SC OM3 Reference Patch Cable
(1) SC-SC OS2 Reference Patch Cable
(2) LC-SC OS2 Reference Patch Cable
(2) ST Adapter
(2) FC Adapter
(1) SC-SC Female Adapter
(2) LC-LC Female Adapter
(1) Downloadable PC Software
(1) Carrying Case and Strap
Cleerline SSF-TKITP-500 Features
Tests both multimode and single mode fibers
Wavelengths of 850, 1300, 1310, and 1550nm
Wave ID – auto wavelength identification
Storage of up to 1000 test records
Included PC Software and USB cable
Built-in VFL with 2.5mm to 1.5 mm adapter included
Built-in RJ45 sequencer
Auto shut-off function
Cleerline Fiber SSF
Termination Kits
The Cleerline SSF-TKITP-500 Fiber Optic Test Kit is a high-quality solution for network certification to TIA568-C standards. This kit includes an Optical Power Meter and Light Source to test both multimode and single mode installed fibers. Four wavelengths, with a range of 70 decibels (dB). The Light Source and Power Meter measure link loss, allowing calculation of the link loss budget. The SSF-TKITP-500 is designed for efficiency and ease of operation. Features include auto wavelength identification and storage of up to 1000 test records. Data can be exported to CSV via downloadable software (PC only). The SSF-TKITP-500 provides SC testing by default. LC testing is available with use of the included LC adapter and reference cables in the full reference cable pack. Adapters for FC-ST terminated cables are also included. All kit items are contained in a sturdy hard sided case for easy access in the field.
Cleerline SSF-TKITP-500 Includes
(1)Power Meter
(1) Light Source
(2) 5.0 V Power Supply & USB-C Charging Cable
(1) SC-SC OM3 Reference Patch Cable
(2) LC-SC OM3 Reference Patch Cable
(1) SC-SC OS2 Reference Patch Cable
(2) LC-SC OS2 Reference Patch Cable
(2) ST Adapter
(2) FC Adapter
(1) SC-SC Female Adapter
(2) LC-LC Female Adapter
(1) Downloadable PC Software
(1) Carrying Case and Strap
Cleerline SSF-TKITP-500 Features
Tests both multimode and single mode fibers
Wavelengths of 850, 1300, 1310, and 1550nm
Wave ID – auto wavelength identification
Storage of up to 1000 test records
Included PC Software and USB cable
Built-in VFL with 2.5mm to 1.5 mm adapter included
Built-in RJ45 sequencer
Auto shut-off function
