Cleerline Technology SSF-SFP-MM1G

Manufacturer Cleerline SSF
Equipment Type Fiber Transceiver
Manufacturer Part Number SSF-SFP-MM1G
Website Cleerline SSF

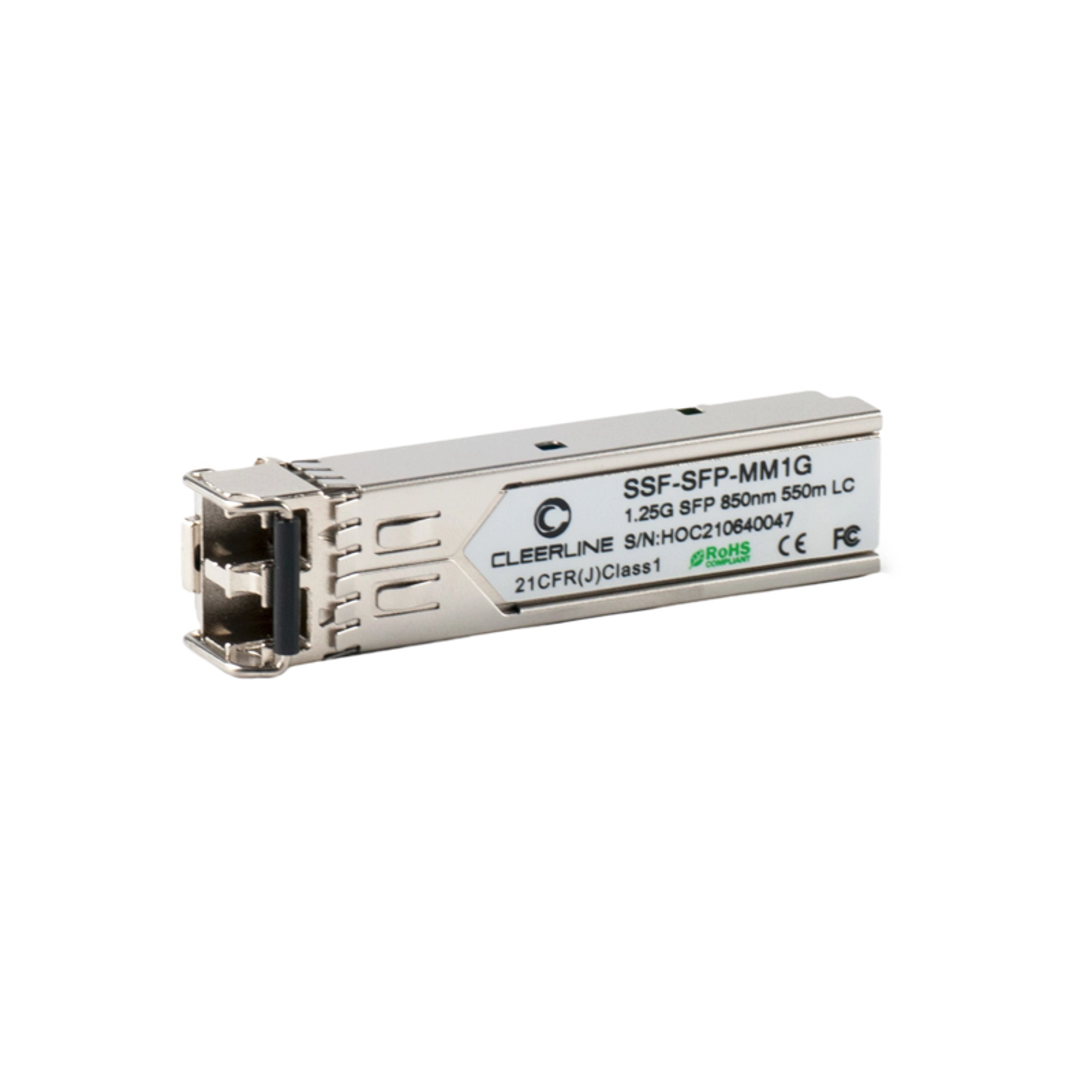

Cleerline SSF-SFP-MM1G 1.25G SFP Transceiver MM

Features & Benefits:
Data-rate of 1.25Gbps operation
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
550m transmission with 50/125µm MMF
275m transmission with 62.5/125µm MMF
Compliant with RoHS
+3.3V single power supply
Standard Operating case temperature: 0 to +70°C
Extended Operating case temperature: -20 to +85°C
Industrial Operating case temperature: -40 to +85°C

Data-rate of 1.25Gbps operation
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
550m transmission with 50/125µm MMF
275m transmission with 62.5/125µm MMF
Compliant with RoHS
+3.3V single power supply
Standard Operating case temperature: 0 to +70°C
Extended Operating case temperature: -20 to +85°C
Industrial Operating case temperature: -40 to +85°C

The SSF-SFP-MM1G transceiver is a high-performance, cost-effective module supporting data-rates of 1.25Gbps and 550m transmission distance with multimode fiber. This SFP accepts 2 LC connectors. This SFP uses the 1000Base-SX standard, popular for short range connections. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers follow the industry standards of the SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards. Note: not compatible with HP devices.
