Cleerline Technology 2ACS9125OS2PE

Specifications
Fiber Count: 2 strands
Fiber Type: Single-mode (OS2)
Cable Length: 1000 feet
Armor: Corrugated steel for enhanced protection
Rating: PE (Polyethylene) rated, suitable for direct burial
Core Diameter: 9 microns (single-mode fiber)
Cladding Diameter: 125 microns
Applications: Suitable for outdoor and underground installations
Environmental Resistance: Designed for protection against physical and environmental damage
Installation: Easy to install in various conditions

Cleerline 2ACS9125OS2PE Cable
Type: 2-Strand OS2 Micro Distribution Cable
Length: 1000 feet
Construction: Corrugated steel armor for enhanced protection
Application: Direct burial (suitable for underground installations)
Rating: PE (Polyethylene) rated for outdoor use
Core Diameter: 9 microns (single mode fiber)
Cladding Diameter: 125 microns
Fiber Mode: Single-mode (OS2), ideal for long-distance applications

High mechanical strength, superior fatigue
Compatible with common connector systems for 9/125 single mode fiber
Integral SSF™ coating provides glass protection
Exclusive 250 µm Soft Peel acrylate
High crush resistance
Cable built to withstand rugged environments
Rodent resistant

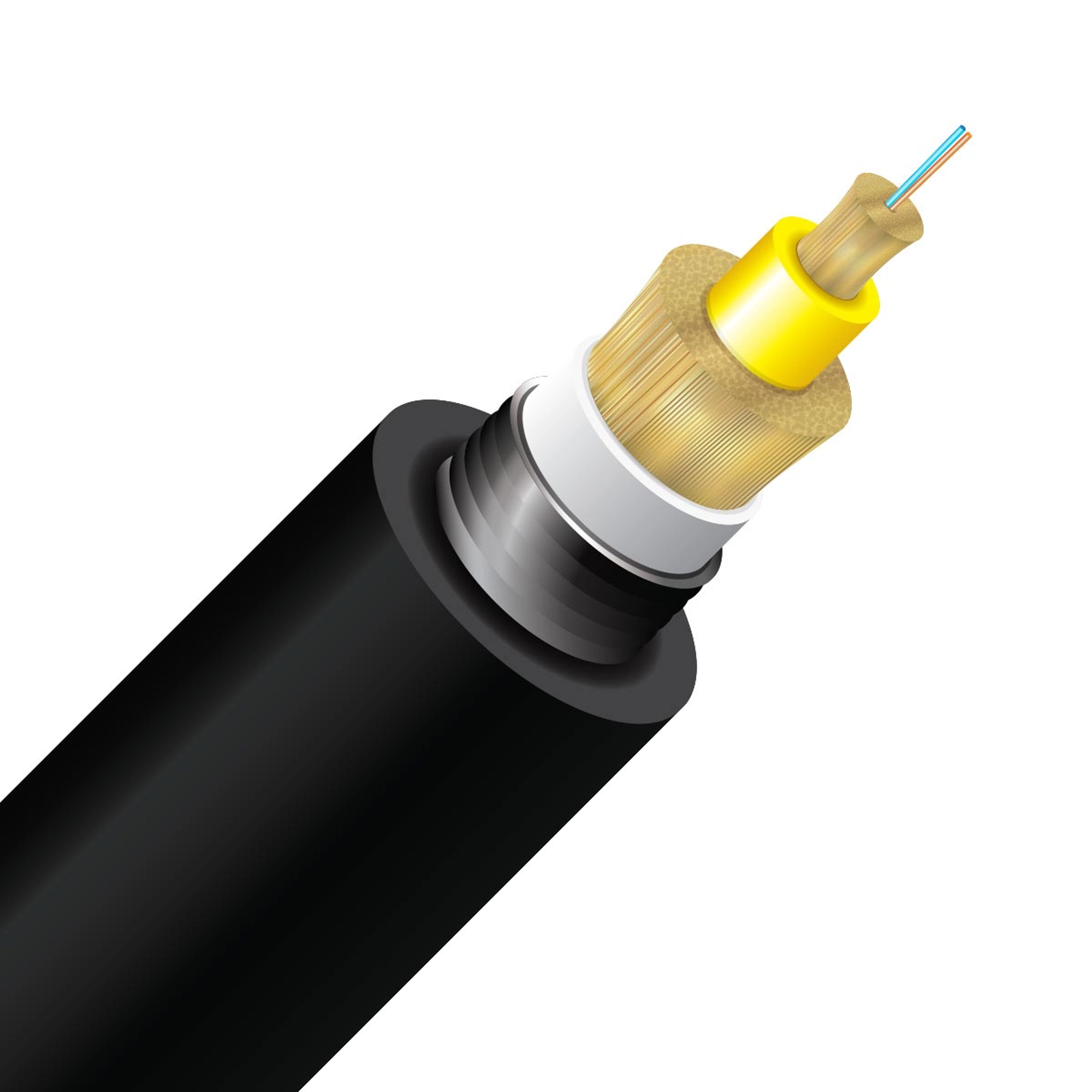

Cleerline SSF™ Armored Corrugated Steel Distribution cable consists of a PE overall jacket with 2 fibers and water-blocking Kevlar yarns. The core is protected by a corrugated armored steel tube that offers easy installation and high crush resistance. A polyethylene, UV-resistant jacket protects the cable, allowing direct burial. Cleerline SSF™ Armored Single Mode is fully compatible with all common connector systems for standard 9/125 single mode fiber. This product offers bend performance beyond EIA SP2840A, superior crush resistance, and superior pull.
