Chief TA500

Dimensions and Measurements

• Depth 3.96 in (10.1 cm)
• Height 21.75 in (55.2 cm)
• Overall Dimensions 21.75″ x 34.00″ x 3.96″ (553mm x 864mm x 101mm)
• Shipping Weight 43.42 lbs (19.7 kg)
• Typical Screen Size 30″ – 58″ (762mm – 1473mm)
• Width 34 in (86.4 cm)

Characteristics & Features

• Accessory Type In-Wall
• Application Large In-Wall Back Box
• Color Black
• UPC 841872156149

• Large conduit and gang knock-outs for easier cable integration
• Takes the already ultra-thin THINSTALL swing arms and gives a flush appearance while still allowing great mobility of the swing arm
• Includes black trim kit to create clean design

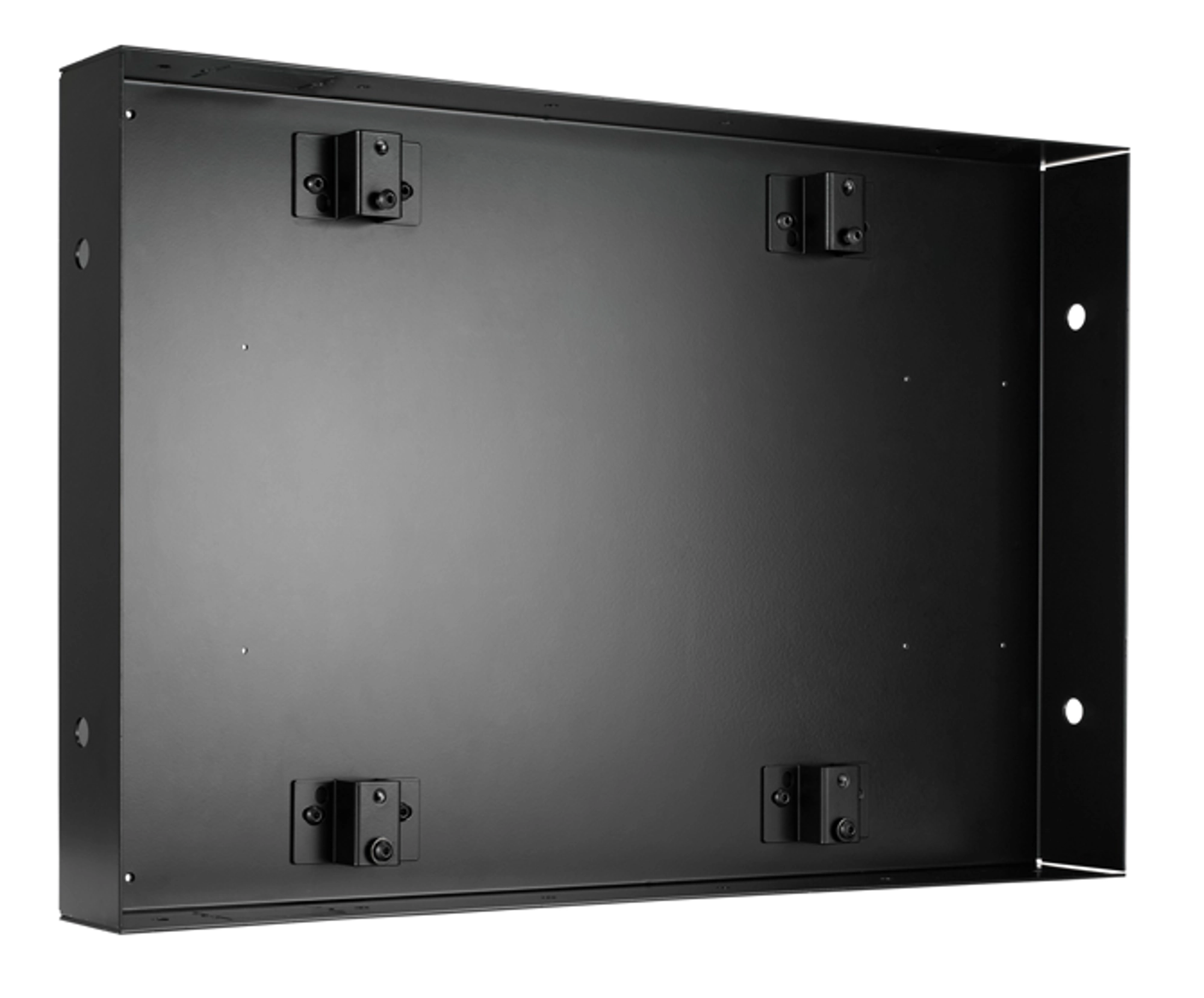

Large Thinstall™ In-Wall Swing Arm Accessory for TS525TU and TS325TU

TA500

Designed to take an already thin swing arm to a zero depth design.

Does not impact the functionality of the Thinstall arm. Will still allow the height adjustment of the mount.

Compatible with:

• TS525TU
• TS325TU
