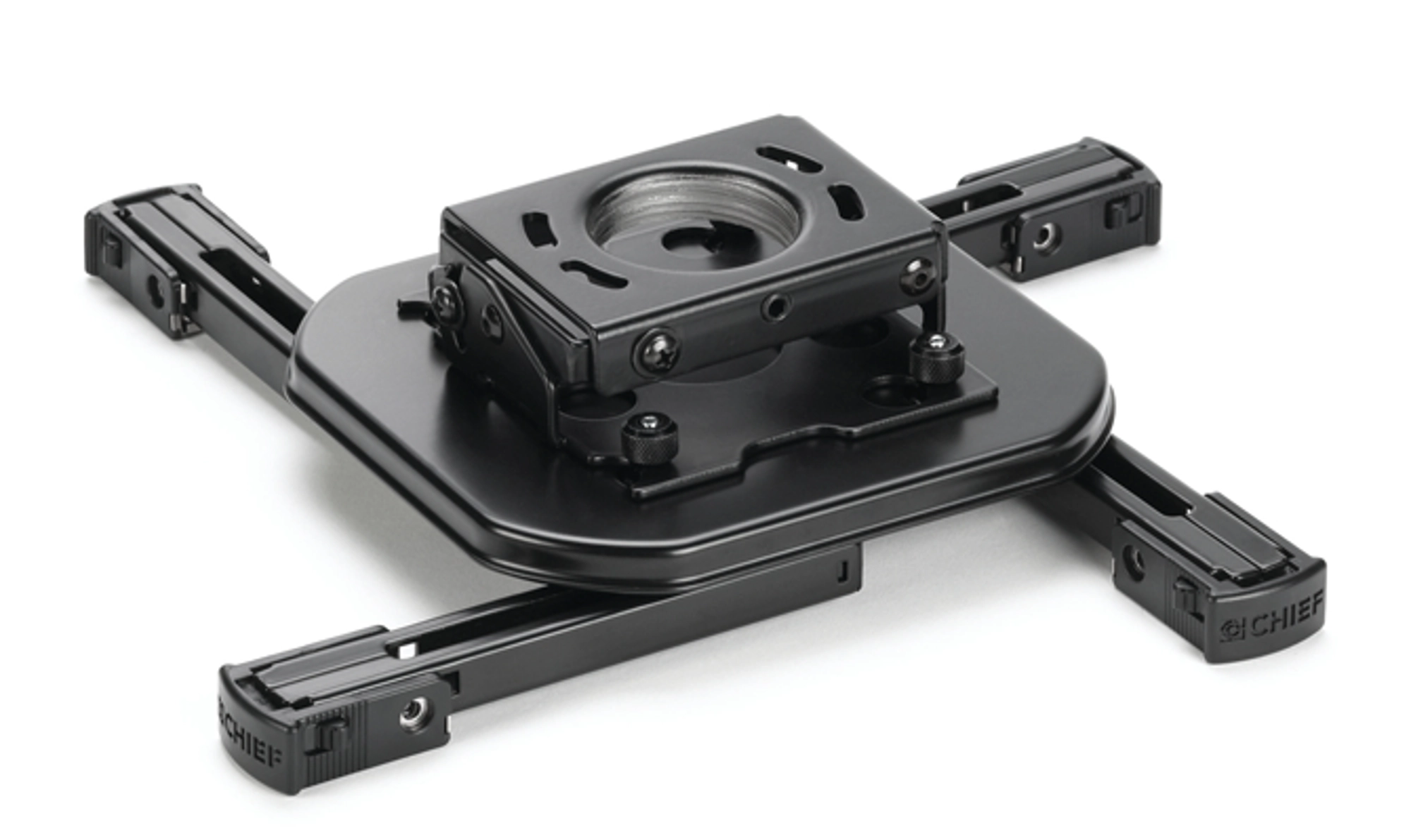

Chief RSAUB

Chief RSMD000Specs
Compatibility
To confirm the compatibility of this mount with your projector, visit Chief’s MountFinder Pro.
Adjustments
Roll: +/-3°
Pitch: +/-20°
Yaw: 360°
Construction
Steel
Dimensions
1.44 x 4.38 x 4.39″ (3.7 x 11.1 x 11.2 cm)
Load Capacity
25 lbs (11.3 kg)
Color
Black
Packaging Info
Package Weight
5.05 lb
Box Dimensions (LxWxH)
10.3 x 10.2 x 4.1″

Compact Design
Ideal for Smaller Projectors
All Points Security
Supports 25 lbs

builds on the foundation of the highly successful RPM mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package.

Although 33% smaller than the RPM, this mini mount retains much of the functionality of the larger mount, with independent roll, pitch and yaw adjustments for quick and precise projector registration and a 25 lb capacity. Shipped fully assembled, the RSAU is also quick to connect or disconnect for lamp or filter changes while maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected.

The RSAU offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5″ NPT threaded extension columns. The included universal fits most projectors.

To confirm the compatibility of this mount with your projector, visit Chief’s MountFinder Pro.

Smaller Form Factor
Compact design is smaller than the RPM Elite by 1/3 and includes all the same features.
Independent Adjustments
Independent roll, pitch and yaw for quick and precise projector registration.
Quick Release
Quick connect/disconnect with convenient lamp and filter access on most projectors. Disconnecting maintains registration and doesn’t affect preset adjustments.
Security
All-Points Security steel-into-steel locking hardware at all connection points protects against theft.
Installation
Multiple installation options including: flush mount to ceiling, use 0.25″ threaded rods, or use a 1.5″ NPT column.
Fits Most Projectors
Now includes new universal interface to further reduce installation time.
