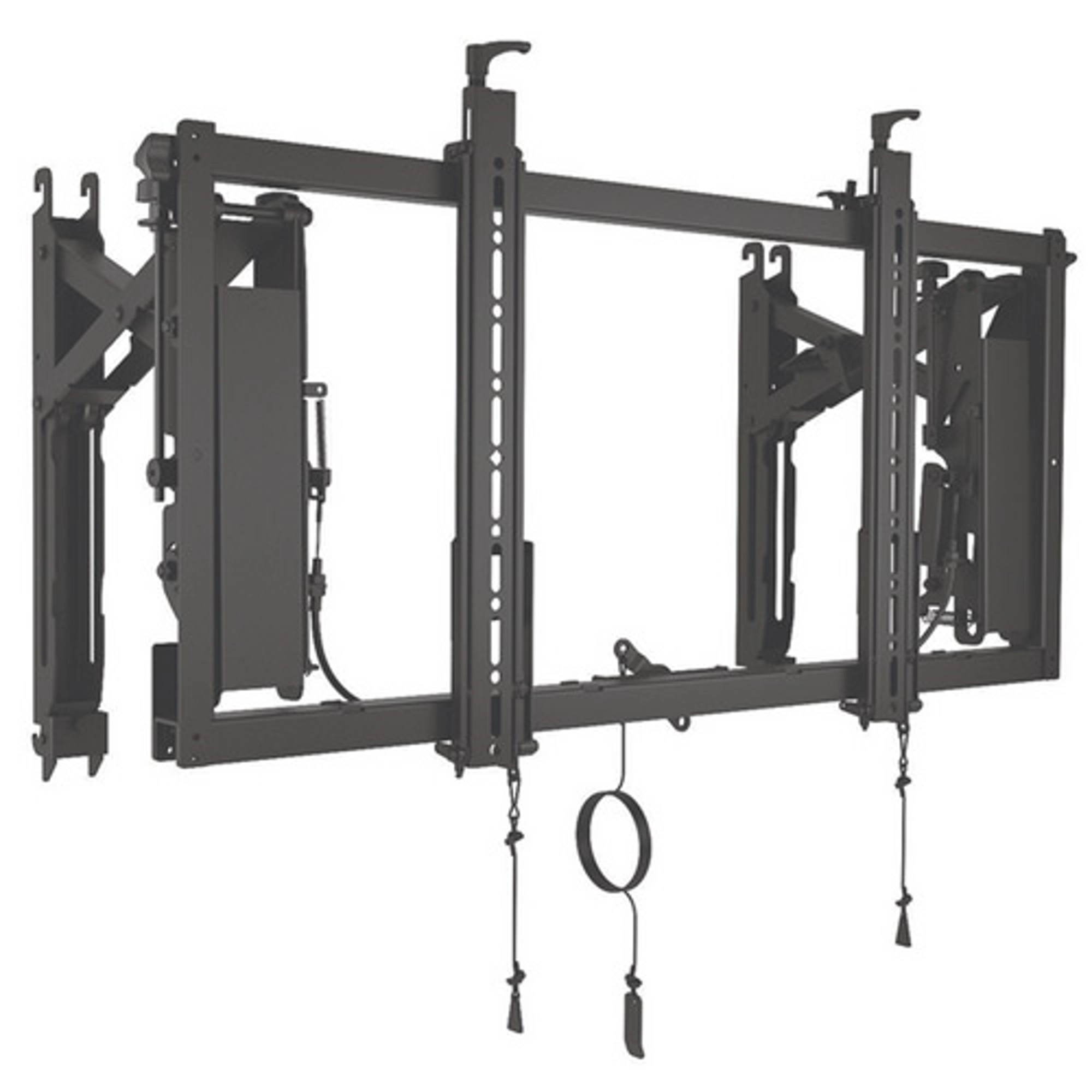

Chief LVSXU

SKU: CHF-LVSXU

MPN: LVSXU

Description

Connexsys Video Wall System without rails

Add to Wishlist

Send to a friend!

ManufacturerChief Manufacturing Manufacturer Part NumberLVSXU Manufacturer Website Addresshttp://www.chiefmfg.com Brand NameChief Product LineConnexSys Product SeriesLVS Product ModelLVSXU Product NameConnexSys Video Wall Landscape Mounting System without Rails Device SupportedFlat Panel Display Maximum Load Capacity150 lb Minimum Screen Size Supported42″ Maximum Screen Size Supported80″ Maximum Adjustable Depth13.40″ UNSPSC Code45111800

Provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements
The LVSXU ConnexSys Video Wall system landscape mount ships without rails.Installers can source strut locally to hang multiple mounts to one rail and reduce installation time
PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4″ for service
Rigid frame keeps displays where you set them, even after extending for service
Depth can be set between 4″ and 7.4″ from the wall, providing a range of “home positions” ideal for recessed installations
Device Supported: Flat Panel Display
Number of Displays Supported: 1
Maximum Load Capacity: 150 lb
Minimum Screen Size Supported: 42″
Maximum Screen Size Supported: 80″
Adjustable Height: Yes
Features: Tilt
Features: Pivot
Features: Adjustable Depth
Features: Lateral Adjustment
Product Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 200 x 100
VESA Mount Standard: 700 x 400
Height: 21.8″
Width: 35.5″
Depth: 4″
Compatibility: 1-5/8″ Sizes of Channel Strut
Country of Origin: China

Mount Type:
Fixed
Orientation:
Landscape
Number of Studs:
Three
Brand:
Chief

Chief™s ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements. The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount. The LVSXU ConnexSys Video Wall system landscape mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.
