Chief LVS1UP

SKU: CHF-LVS1UP

MPN: LVS1UP

Description

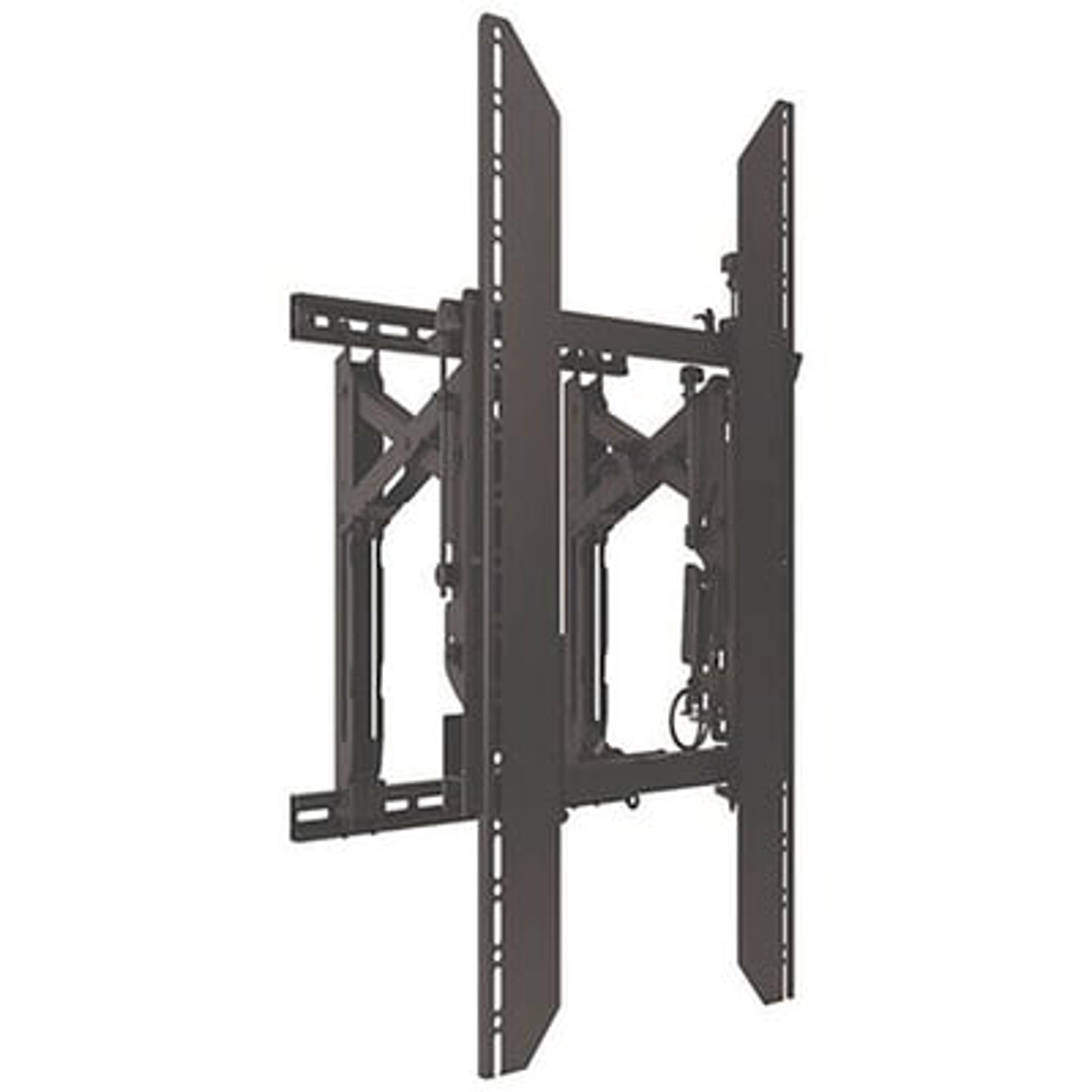

Video Wall Mounting System with Rails 40"-80" Panels Portrait VESA 200x100mm to 800x400mm Micro-Adjustable ConnexSys

Add to Wishlist

Send to a friend!

ManufacturerChief Manufacturing Manufacturer Part NumberLVS1UP Manufacturer Website Addresshttp://www.chiefmfg.com Brand NameChief Product ModelLVS1UP Product NameConnexSys Video Wall Portrait Mounting System with Rails Product TypeWall Mount Maximum Load Capacity150 lb Minimum Screen Size Supported40″ Maximum Screen Size Supported80″ Maximum Adjustable Depth13.40″ FeaturesAdjustable Depth UNSPSC Code45111800

Provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements
The LVS1UP ConnexSys Video Wall system portrait mount ships with rails foreach mount
PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4″ for service
Rigid frame keeps displays were you set them, even after extending for service
Depth can be set between 4″ and 7.4″ from the wall, providing a range of “home positions” ideal for recessed installations
Tech Info
UL, TUV
Device Supported: Flat Panel Display
Number of Displays Supported: 1
Maximum Load Capacity: 150 lb
Minimum Screen Size Supported: 40″
Maximum Screen Size Supported: 80″
Adjustable Height: Yes
Features: Tilt
Features: Lateral Adjustment
Features: Adjustable Depth
Product Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 200 x 100
VESA Mount Standard: 800 x 400
Height: 32.5″
Width: 19.5″
Depth: 4″
Compatibility: TV
Country of Origin: China
Limited Warranty: 10 Year
Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Brand:
Chief

Chief’s ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

The LVS1UP ConnexSys Video Wall system portrait mount ships with rails for each mount.
