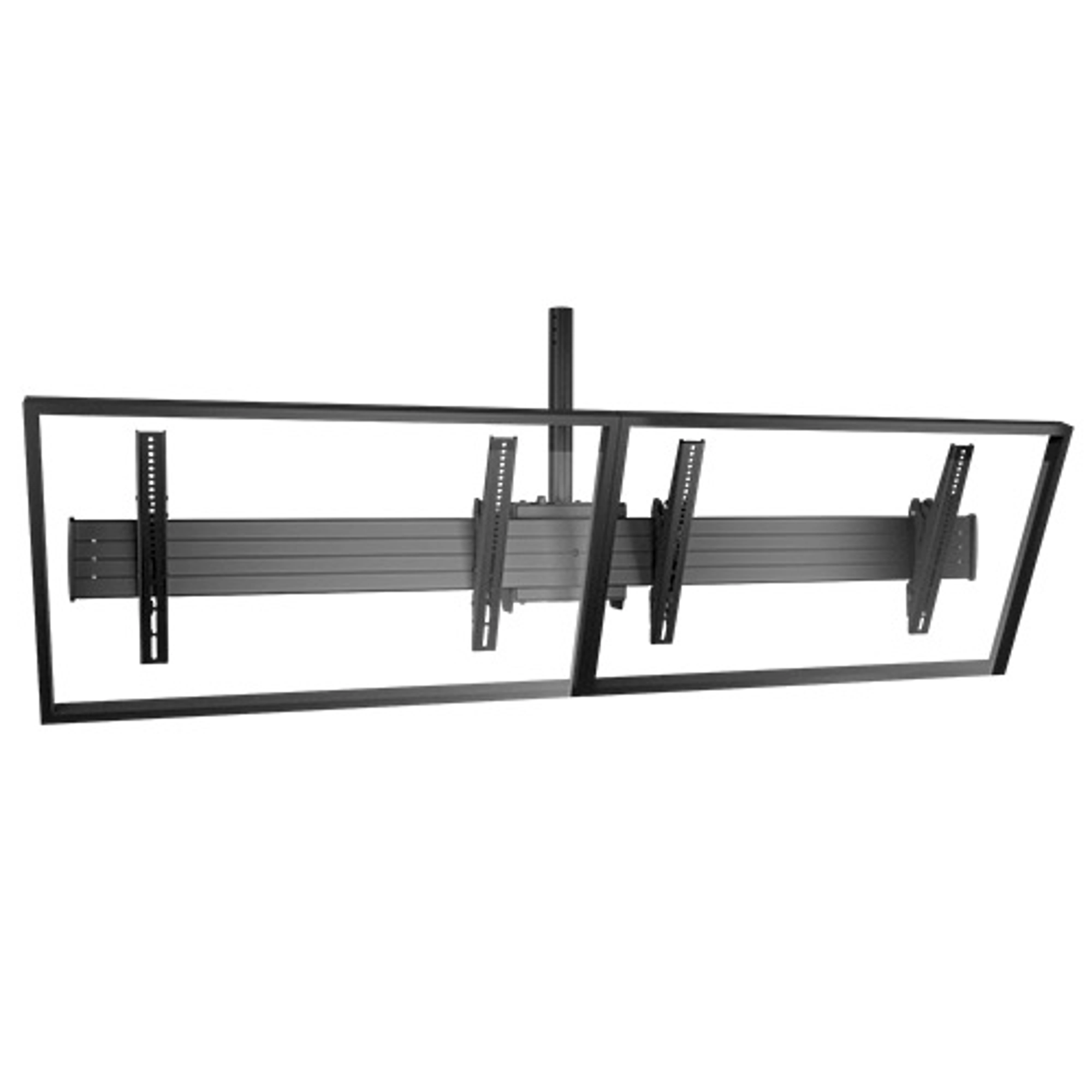

Chief LCM2X1U

ManufacturerChief Manufacturing Manufacturer Part NumberLCM2X1U Manufacturer Website Addresshttp://www.chiefmfg.com Brand NameChief Product LineFUSION Product ModelLCM2X1U Product NameFUSION Large Ceiling Mounted 2 x 1 Menu Board Product TypeCeiling Mount Device SupportedDigital Signage Appliance Maximum Load Capacity125.00 lb Minimum Screen Size Supported40″ Maximum Screen Size Supported55″ UNSPSC Code45111800

• Single drop for fast installation
• Micro adjustable roll for perfect leveling +/- 3 degrees
• 360 degree swivel for optimal viewing angles
• Single horizontal extrusion keeps screens aligned
• Tool-free screen engagement
• Secure displays with optional pad-l security
• Tech Info
• UL
• Can withstand a maximum weight of 125 lb
• Supports the screen size of 55″
• 360 degree swivel for optimal viewing angles
• Single horizontal extrusion keeps screens aligned
• Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
• Tool-free screen engagement
• Secure displays with optional pad-lock security
• Fits screens 40 – 55″ diagonals, add FCAX extension brackets for larger screens up to 65
• CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
• Compatible with traditional 1.5″ NPT and new CPA pinned ceiling plates and column systems
• See ceiling plates and extension columns (Adjustable and Fixed) for 1.5″ NPT compatibility
• See CPA ceiling plates and CPA columns for pin conection compatibility

Chief’s FUSION ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren’t available. Combine to easily create longer menu boards. Great for digital signage installations. Screen array configuration: screens wide x screens high. Confirm screen compatibility with MountFinder¢
