Chief LCM1UP

• Overall Dimensions 37″ x 24″ x 9″(939.8 x 609.6 x 228.6 mm)
• Shipping Weight 26 lbs (11.8 kg)
• Weight Capacity 125 lbs (56.7 kg)
• VESA Mounting Pattern 200 x 100 – 460 x 800 mm
• Certifications TAA, UL Listed

• Ceiling Plate and Extension Column are required and must be ordered separately
• Compatible with traditional 1.5″ NPT and new CPA pinned ceiling plates and column system
• See ceiling plates and extension columns (Adjustable and Fixed) for 1.5″ NPT compatibility
• See CPA ceiling plates and CPA columns for pin connection compatibility
• Stackable on a single pole when used with CPA columns
• REPEATABILITY
• Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
• ACCESSIBILITY
• Simple on/off connection for ease of installation and service.
• CENTRIS® FINGERTIP TILT
• Effortlessly adjust display using Centris fingertip tilt technology.
• SIMPLE & SECURE
• Tool free screen engagement with optional padlock security.
• FLEXIBILITY
• Mount swivels to any preferred viewing angle. Set screws lock in desired angle.
• Stackable on a single pole when used with CPA columns
• LCM1U-G is TAA-Compliant, to meet the needs of U.S. Government projects

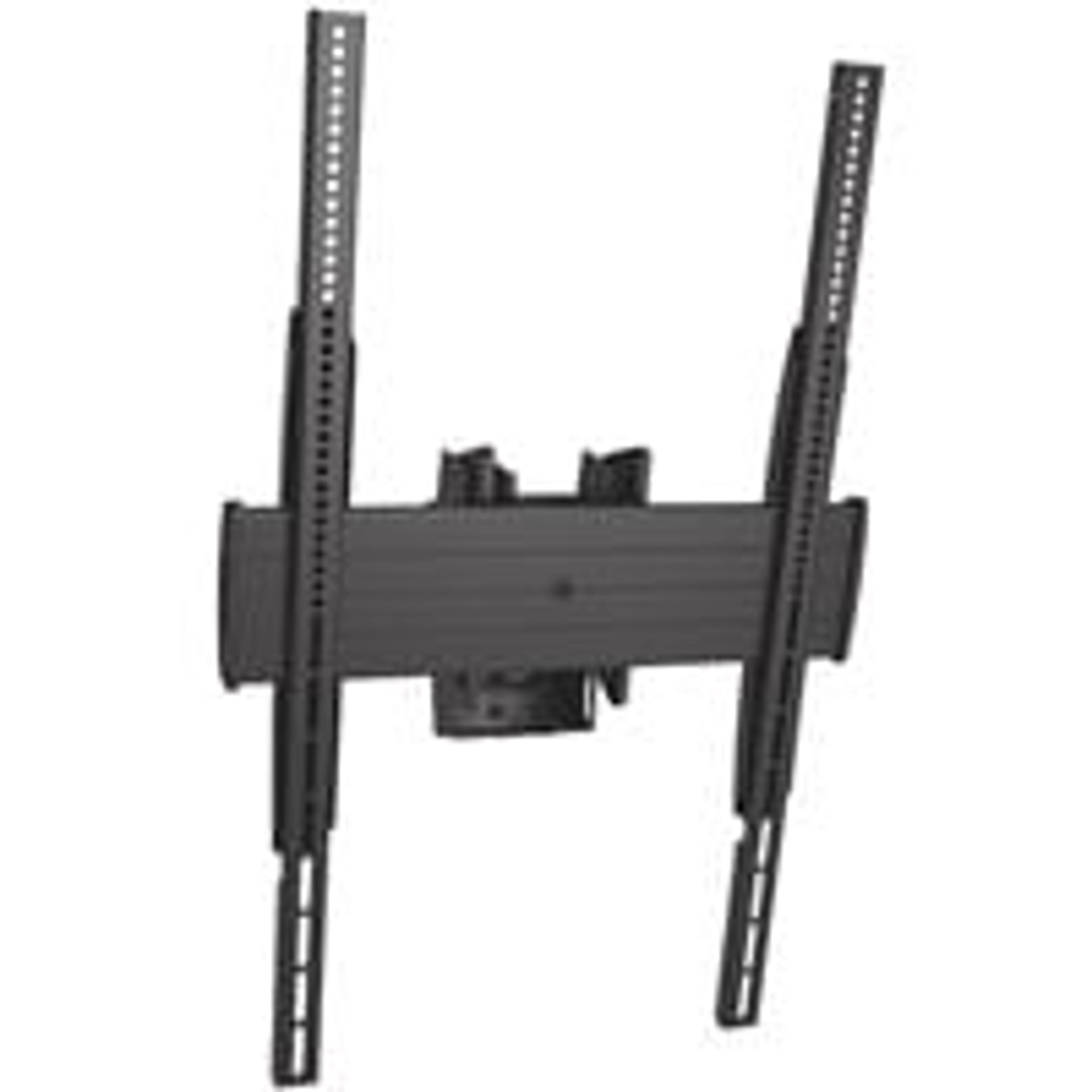

Fusion® Large Portrait Flat Panel Ceiling Mount

LCM1UP

Chief’s Fusion® Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.

• Cutsheet
• Dimensional Drawing
