Chief FHSVB

SKU: CHF-FHSVB

MPN: FHSVB

Description

Small Flat Panel Ceiling Mount. Black.

Add to Wishlist

Send to a friend!

ManufacturerChief Manufacturing Manufacturer Part NumberFHSVB Manufacturer Website Addresswww.chiefmfg.com Brand NameChief Product SeriesFHS Product ModelFHSVB Product NameFHSVB Flat Panel Straight Column Single Ceiling Mount Product TypeCeiling Mount Load Capacity40 lb Maximum ColorBlack Package ContentsFHSVB Flat Panel Straight Column Single Ceiling Mount Includes: 1 x Bracket, Interface, 100 x 200 4 x Button, Mounting 6 x Screw, Phillips Flat Head Machine, M4 x 12mm 6 x Screw, Phillips Flat Head Machine, M4 x 20mm 4 x Screw, Phillips Pan Head Machine, M4 x 12mm 6 x Screw, Phillips Flat Head Machine, M4 x 25mm 6 x Spacer, 3/4″ x 1/4″ 6 x Spacer, Nylon 3/4″ x 1/2″ 4 x Screw, Phillips Pan Head Mach., M4 x 20mm 4 x Screw, Phillips Pan Head Mach., M4 x 30mm Additional InformationTilt: +/-15° Roll: 90° Yaw: 360° Exclusive fusion technology gravity-centered tilt self-adjusts to securely hold different display weights UNSPSC Code45111800

Exclusive Centris Technology Fingertip Tilt Self-Adjusts to Securely Hold Different Display Weights
Screen Angle Stays Set in Place Until You Decide to Readjust
Post-Installation Leveling without Tools
Fast and Easy Screen Positioning with Lockdown Caability
Portrait and Landscape Rotation and Side-to-Side Pivot
Easily Route Cables Through 1.5″ NPT Extension Column
Tech Info
UL
Device Supported: Flat Panel Display
Maximum Load Capacity: 40 lb
Product Color: Black
Compatibility: Flat Panels, LCDs and Monitors
Country of Origin: China
Limited Warranty: 10 Year

Mount Type:
Ceiling
Drop Pipe Included:
No
Number of Displays:
1
Brand:
Chief

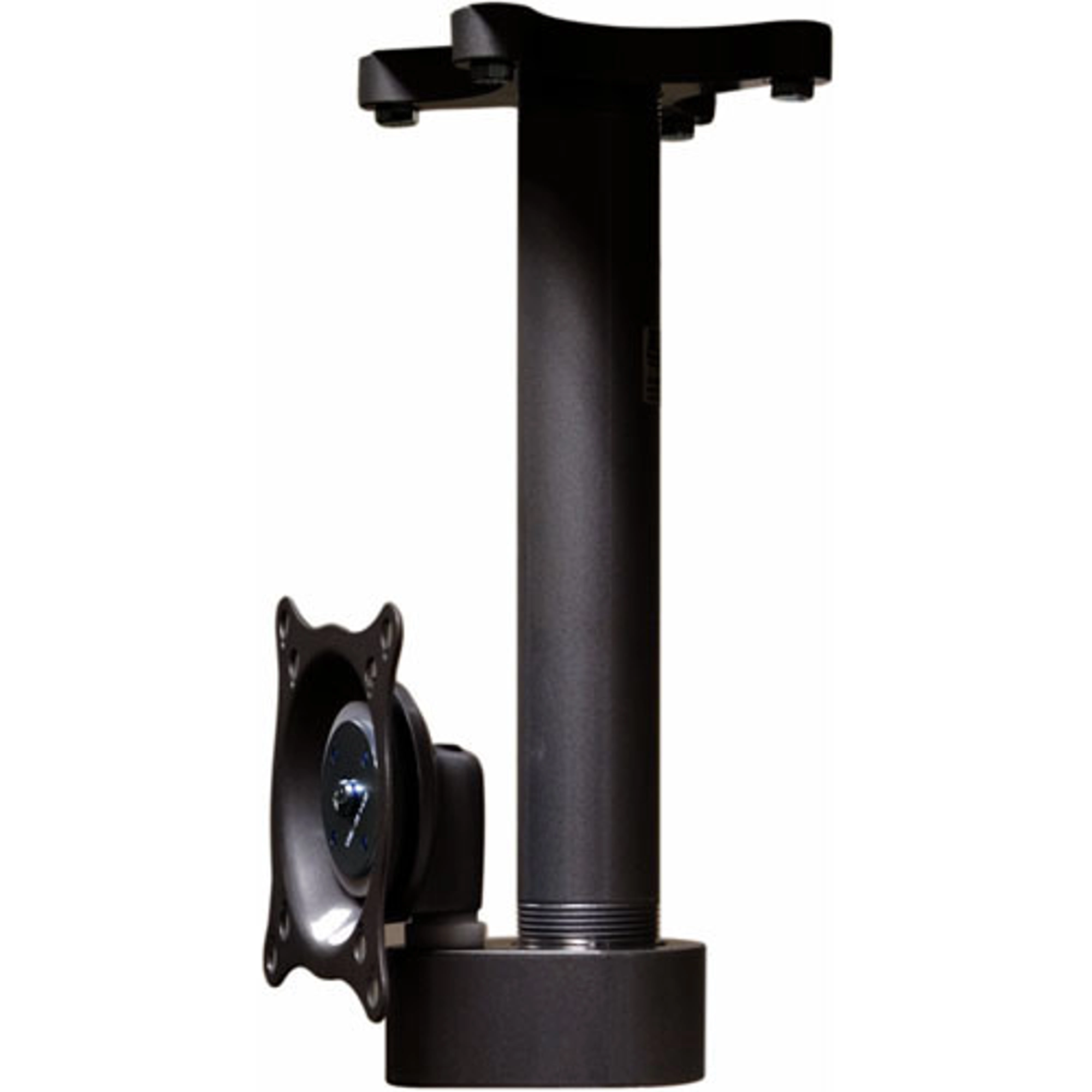

Chief’s FHSVB Flat Panel Straight Column Single Ceiling Mount for small flat panels, LCDs and monitors combines our exclusive centris tilt with a quick ceiling mount installation. It threads directly to 1.5″ NPT standard tubing and provides cable management through the pipe. Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements.
