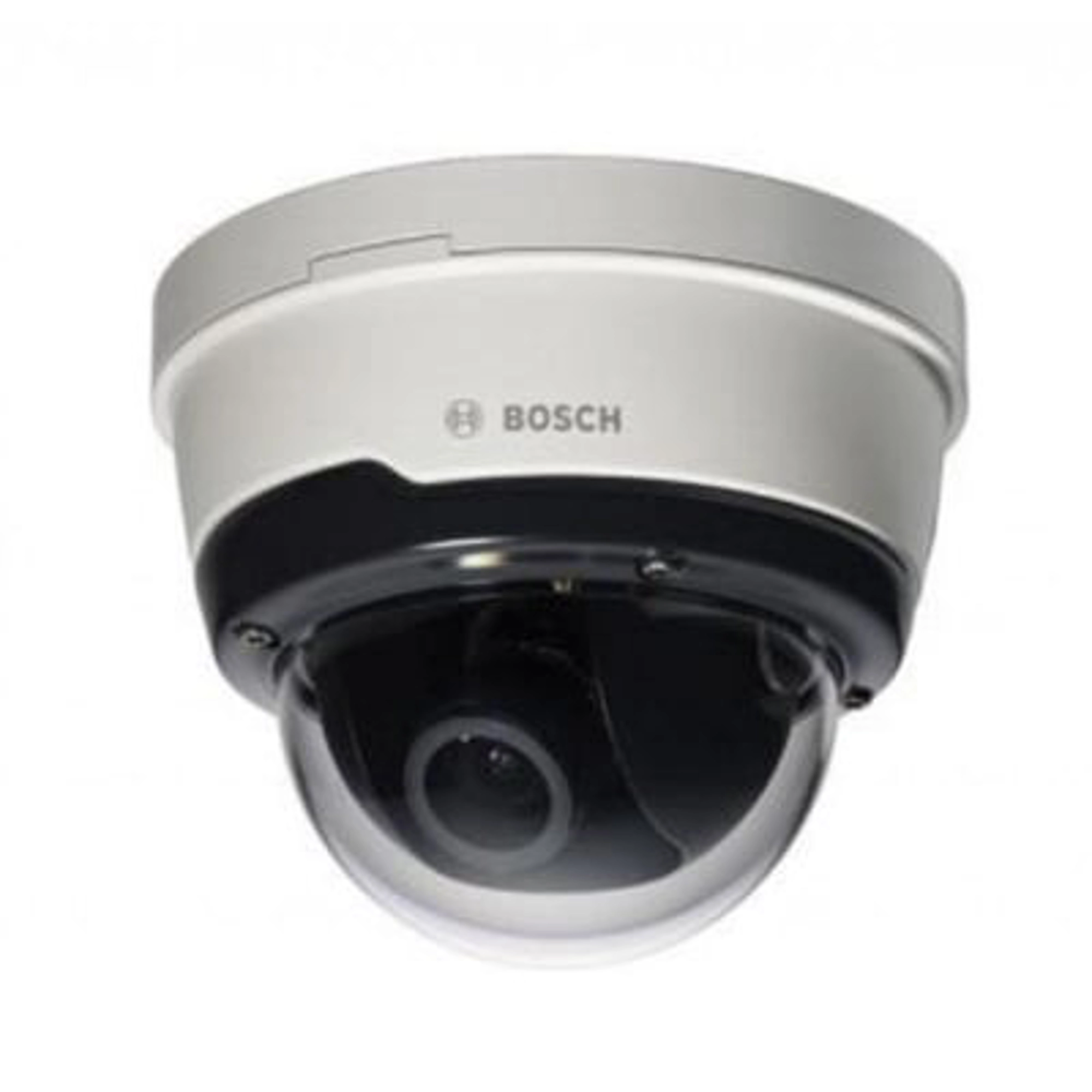

Bosch NDE-5503-A
SKU: BSH-NDE-5503-A
MPN: NDE-5503-A
Description
Fixed dome 5MP HDR 3-10mm IP66
Send to a friend!
SKU: BSH-NDE-5503-A
MPN: NDE-5503-A
Fixed dome 5MP HDR 3-10mm IP66
Send to a friend!
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 145 x 131 mm (5.71x 5.14 in) |
| Electronic Shutter | Automatic Electronic Shutter (AES); Fixed (1/25[30] to 1/15000) selectable; Default shutter |
| Image Device | 1/2.9-inch CMOS |
| Image Pixels-Effective | 3072 (H) x 1944 (V) |
| Operating Humidity | 5% to 93% RH non condensing, 5% to 100% RH condensing |
| Operating Temperature | -40 °C to +50 °C (-40 °F to +122 °F) |
| Power Consumption | DC: 7.15 W max., AC: 6.15 W max., PoE: 7 W max. |
| Privacy Zone | Eight independent areas, fully programmable |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP) |
| S/N Ratio | Audio: >50 dB, Video: >55 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Angle of View | Horizontal: 29° – 92°, Vertical: 18° – 50° |
| Back Light Compensation | On/off |
| Automatic White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
