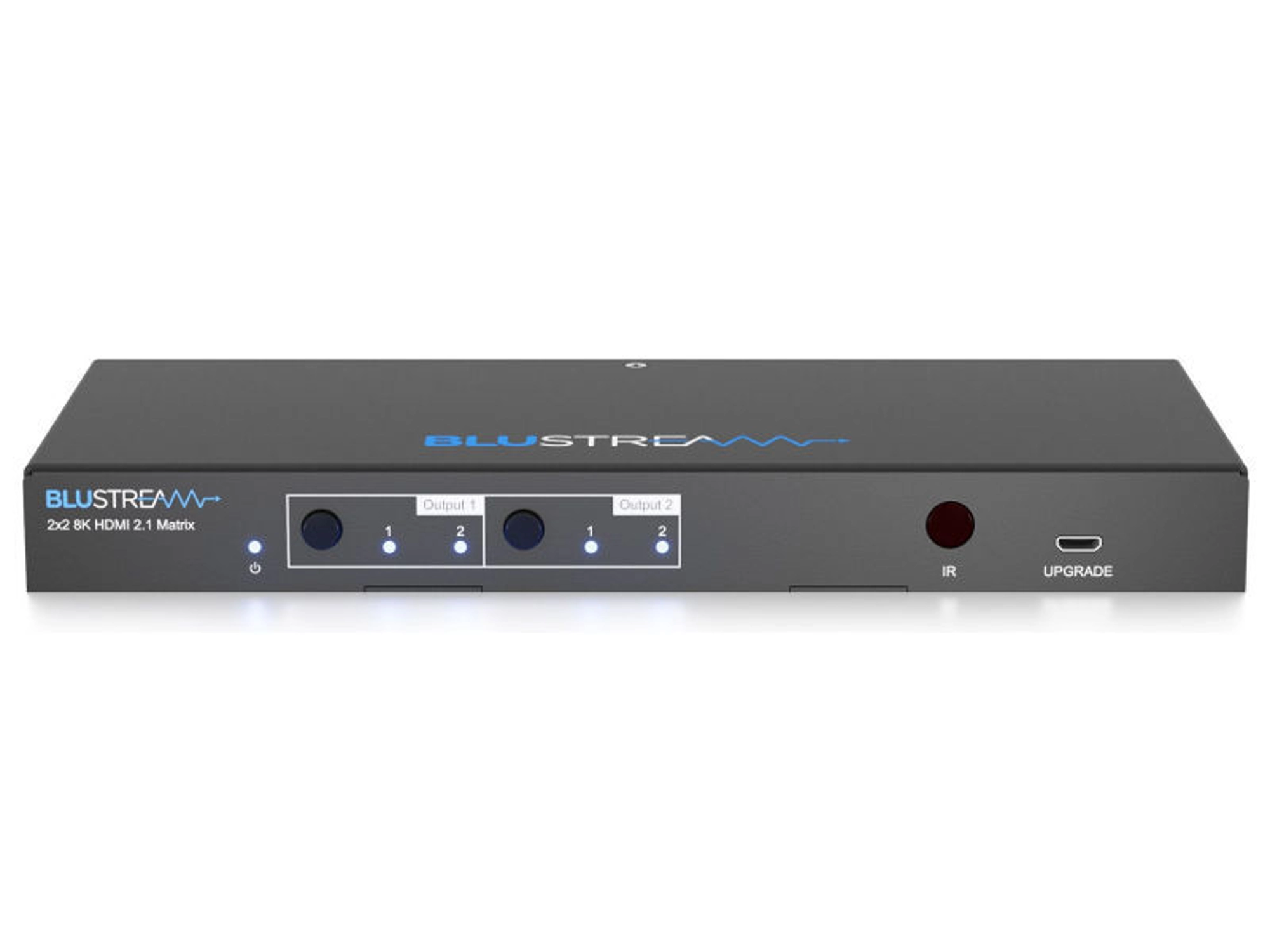

Blustream MX22AB-8K

Video Input Connectors: 2 x HDMI Type A, 19-pin, female
Video Output Connectors: 2 x HDMI Type A, 19-pin, female
Audio Output Connectors: 2 x Optical (S/PDIF) & 2 x Analogue audio L/R (3.5mm stereo jack)
IR Input Ports: 1 x 3.5mm stereo jack
RS-232 Serial Port: 1 x DB9, female
Dimensions (WxDxH): 218mm x 94mm x 23mm, including connections, without feet (removable)
Shipping Weight: 1.0kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 1 x 5V/2A DC

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company’s products are designed and engineered by a global team of AV specialists. Blustream’s research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream’s engineers have created the world’s most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company’s dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.

Features 2 x selectable HDMI2.1 inputs that can be independently routed to 2 x HDMI2.1 outputs
Supports HDMI2.1 specification including HDR (40Gbps maximum)
Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Auto HDMI source switching via 5V and / or TMDS signal sensing
Manual HDMI source switching via front panel, IR and RS-232
Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
5V / 12V IR Compatible
HDCP 2.3 compliant with advanced EDID management

If you’re in the market for a high-quality HDMI matrix, the Blustream MX22AB-8K 2×2 8K HDMI 2.1 Matrix is definitely a product to consider. With its advanced features and functionality, this matrix is perfect for integrating multiple source and display devices that utilize the HDMI 2.1 chipset.

One of the standout features of the MX22AB-8K is its ability to support 8K 60Hz and 4K 120Hz signals. This means you can enjoy stunning visuals with incredible clarity, making it perfect for gaming, streaming, and more. Additionally, the matrix supports ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate), ensuring a seamless and responsive viewing experience.

The MX22AB-8K also offers convenient and flexible routing options, with 2 selectable HDMI 2.1 inputs that can be independently routed to 2 HDMI 2.1 outputs. This allows you to switch between sources effortlessly, whether it’s through 5V hot plug detection or manual control via RS-232, IR, or the front panel.

Another great feature of this matrix is its support for all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission. And with its audio breakout to analogue L/R audio and optical digital outputs, you can easily integrate audio into your setup.

Last but not least, the MX22AB-8K is HDCP 2.3 compliant and has advanced EDID management for connected source devices. This ensures compatibility and seamless communication between devices, making it a reliable and efficient choice for your home entertainment needs.
