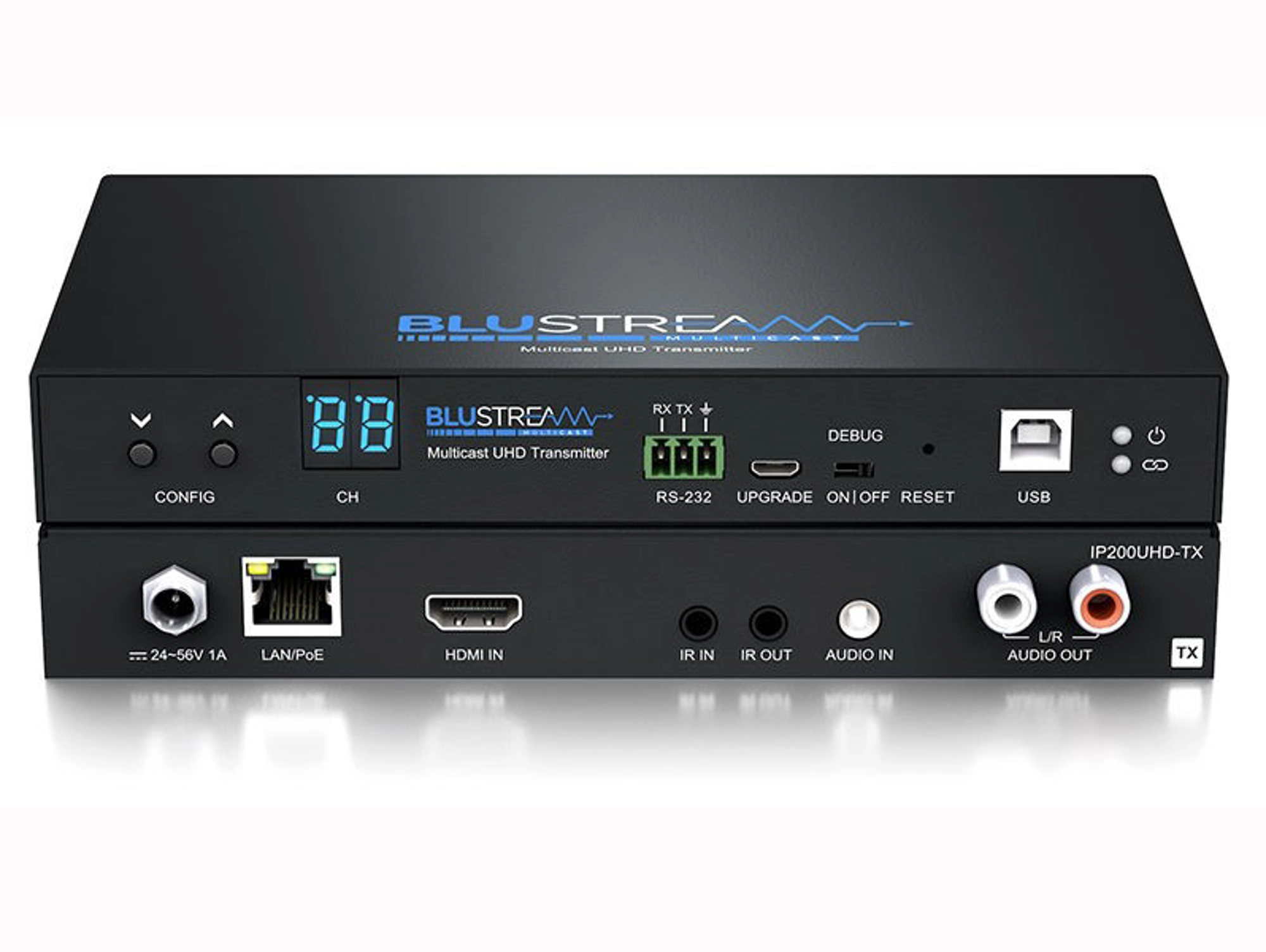

Blustream IP200UHD-TX
SKU: BLU-IP200UHD-TX
MPN: IP200UHD-TX
Description
Multicast VoIP UHD Transmitter Tx 4K 30 4:2:0 1Gb Network
Send to a friend!
SKU: BLU-IP200UHD-TX
MPN: IP200UHD-TX
Multicast VoIP UHD Transmitter Tx 4K 30 4:2:0 1Gb Network
Send to a friend!
Video Input: 1 x HDMI Type A, female
Video Output: 1 x LAN RJ45 connector
Latency: 1 Frame (16-33ms depending on frame rate)
Audio Input: 1 x 3.5mm L/R Analog audio
Audio Output Connectors: 2 x RCA L/R Analog audio
Ethernet Port: 1 x LAN RJ45 connector
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
USB / KVM Port: 1 x USB – Type B
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm mono jack
PoE draw: 6.0W (typical), 7.2W (max load)
Firmware Update: 1 x Micro-USB
Mounting Kit Included
Dimensions (W x D x H ): 190mm x 114mm x 25mm
Shipping Weight: 0.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Advanced UHD video over 1Gb Network
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
Advanced signal management for independent routing of IR, RS-232, USB/KVM*, audio and video
PoE (Power over Ethernet) to power Blustream products from PoE switch
HDCP 2.2 compliant with advanced EDID management
Analog L/R audio embedding
Analog L/R audio breakout
Local 24-56V power supply (should Ethernet switch not support PoE) – sold separately
Features 4 operational modes:
– Matrix distribution (requires 1Gb network switch)
– Video wall (requires 1Gb network switch)
– One-to-one HDMI extender (no network switch required)
– One-to-many HDMI extender (no network switch required)
*USB connectivity for IP200 series products only supports bulk mode cameras, and will not support isochronous USB data transfer for VC equipment / cameras.
*Compatible IP Controllers: ACM200, ACM210
Encoder / Transmitter
1Gbs
Blustream
HDMI
IP200UHD-TX
Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch.
The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture.
The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.
