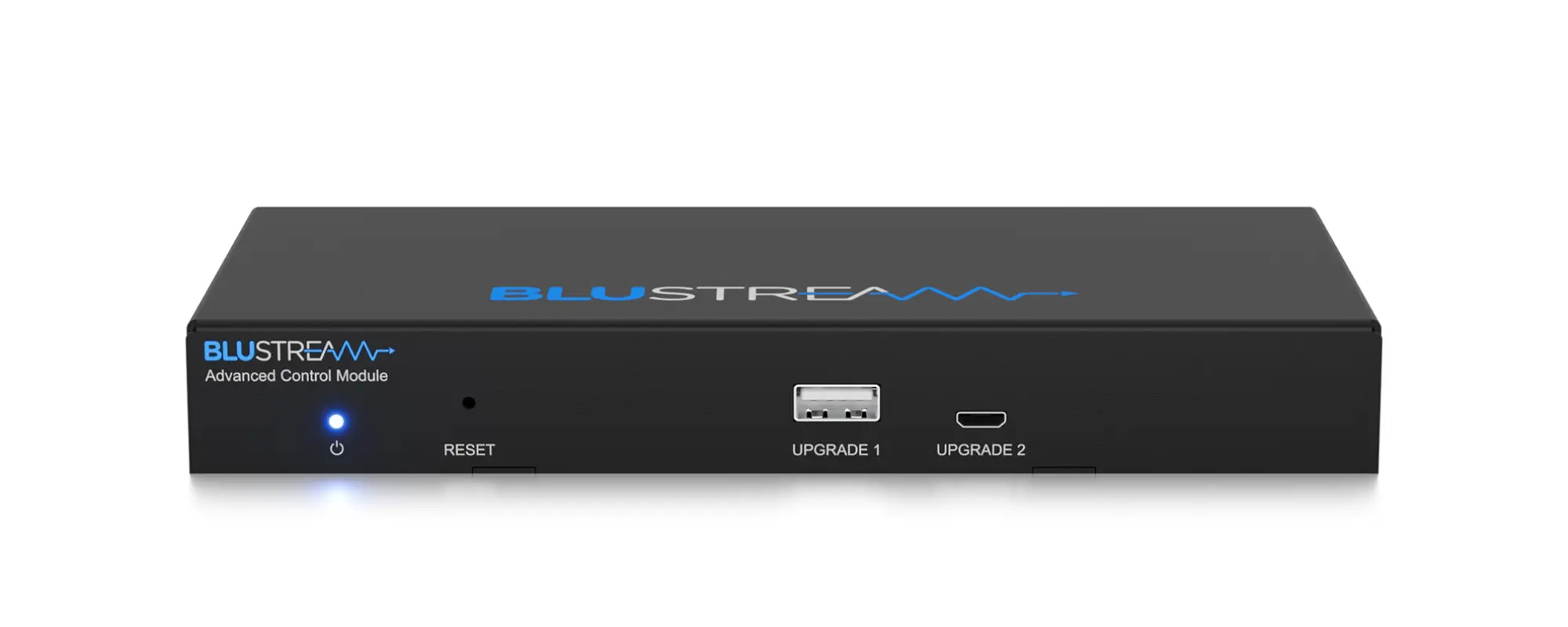

Blustream ACM1000

SKU: BLU-ACM1000

MPN: ACM1000

Description

Advanced Control Module Gen 3 AV over IP MoIP

Add to Wishlist

Send to a friend!

Dimensions (W x D x H ): 190mm x 93mm x 25mm
Product Weight: 0.5kg
Shipping Weight: 0.9kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Draw: 4W (max)
Ethernet port: 2x 1Gb LAN RJ45 connector (1x PoE support)
RS-232 serial port: 2x 3-Pin Phoenix connector
I/O port: 1x 6-Pin Phoenix connector
IR Input ports: 1x 3.5mm stereo jack
Product upgrade: 1x Micro USB, 1x USB Type-A, female
Power Supply: PoE or 12V/1A DC

The new ACM1000 introduces a complete rebuild of both the control module hardware and supporting management software. Powered by a quad-core processor, this next-generation platform unlocks a number of new intuitive features including 24/7 scheduling, enhanced source and display control, simultaneous switching, advanced presets, and pre-configured macro control. Together, these enhancements deliver greater automation, faster workflows, and a more intelligent control experience across the entire AV system.

The ACM1000 is currently compatible with the following Blustream products:

IP200UHD-RX & IP200UHD-TX
IP250UHD-RX & IP250UHD-TX
IP300UHD-RX & IP300UHD-TX
IP350UHD-RX & IP350UHD-TX
IP300UHD-WP-TX

Web interface module for configuration and control of Blustream AV over IP systems
Intuitive ‘Drag & Drop’ source selection with video preview feature for active monitoring of system status
Advanced signal management for independent routing of video, audio, IR, RS-232, USB/KVM, and CEC (AVoIP platform dependent)
Auto system configuration using in-built ‘Setup Wizard’
Dual RJ45 LAN connections to bridge business / home network to AV over IP video distribution network, resulting in:
– Better system performance as network traffic is separated (different networks, or VLAN’s)
– No advanced network setup required
– Independent IP address per LAN connection
– Allows for simplified TCP / IP control of AV over IP system
Dual RS-232 ports for control of the AV over IP system, and passthrough of control commands to remote third party devices
5V/12V IR integration for control of AV over IP system
Configurable GPIO ports for integration with 3rd party products
Direct control command processing allowing IP to IR, serial or CEC to any end point in the system
GUI based source and display remote for direct control using IR, serial and CEC
24/7 scheduling functionality
Macro functionality for recall of multiple commands from a schedule, GPIO, or API command
Grouping of receivers for instant recall of input switching to multiple displays
Preset functionality for recalling set I/O’s from a single GUI button press or API command
PoE (Power over Ethernet) to power Blustream product from PoE switch
Local 12V power supply (optional) should AV over IP network not support PoE
3rd Party drivers available for major control brands

Type:
Controllers
Bandwidth:
1Gbs
Brand:
Blustream

Advanced Control Module

ACM1000

Built on the foundation of our existing ACM platform, the ACM1000 continues to deliver the powerful core functionality our AV over IP customers rely on every day. These include one-touch configuration, intuitive drag-and-drop control via the web interface, and fully independent routing of video, audio, serial, IR, USB/KVM, and CEC signals.
