AVPro Edge MU-STIX-G
SKU: AVP-MU-STIX-G
MPN: MU-STIX-G
Description
STIX Test Signal Generator 8K HDMI Male 48Gbps 12-Bit Color 4:4:4 HDMI Pattern Generator In-Field Pass/Fail
Send to a friend!
SKU: AVP-MU-STIX-G
MPN: MU-STIX-G
STIX Test Signal Generator 8K HDMI Male 48Gbps 12-Bit Color 4:4:4 HDMI Pattern Generator In-Field Pass/Fail
Send to a friend!
Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays it is simply impossible.
Video test patterns at resolutions from 720p/ 60 Hz through 8K/ 60 Hz, including 4K/120 Hz High Frame Rate, may be generated by the
MU-STIX-G. When used in stand-alone applications, a mini OLED screen displays the pattern selected, resolution, bit rate, color space, and HDCP version.
STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.
For stand-alone use, the MU-STIX-G is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required.
Low-cost, flexible output source
Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant generator.
Analyze signals up to 8K
Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit color depths, in RGB, 4:2:2, and 4:4:4 color spaces.
Configurable HDCP
With options for versions 1.4, and 2.3 (1.4 is TDMS only) or Off.
Built-in test patterns
13 built-in test patterns and 6 preset timing options, including pseudo-random binary sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
Low power draw
Allows device to be powered over USB-A (from AVR or display) or via USB Type-C from mobile device.
OLED color screen
An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.
Ultra-compact form factor
The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.
AV Pro Edge
HDMI
MU-STIX-G

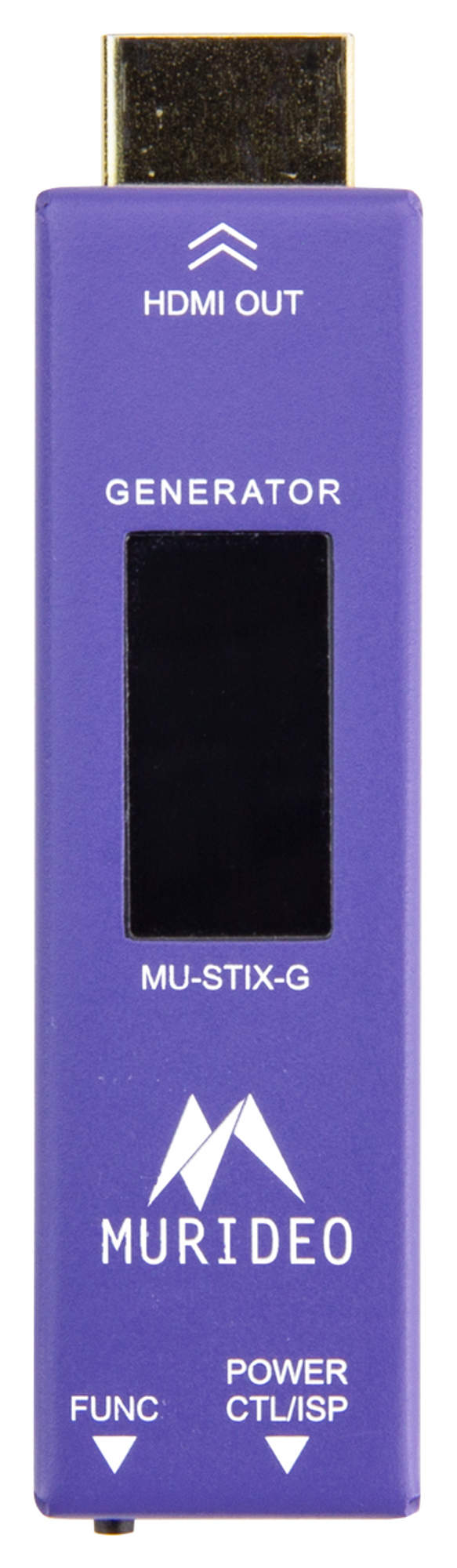

The MU-STIX-G is a thumb drive-sized HDMI pattern generator designed for Murideos STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.
