AVPro Edge MU-STIX-A
SKU: AVP-MU-STIX-A
MPN: MU-STIX-A
Description
STIX Test Signal Analyzer 8K HDMI Male 48Gbps 12-Bit Color 4:4:4 HDMI Pattern Analyzer In-Field Pass/Fail
Send to a friend!
SKU: AVP-MU-STIX-A
MPN: MU-STIX-A
STIX Test Signal Analyzer 8K HDMI Male 48Gbps 12-Bit Color 4:4:4 HDMI Pattern Analyzer In-Field Pass/Fail
Send to a friend!
Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays it is simply impossible.
The MU-STIX-A analyzes video test patterns at resolutions from 720p/ 60 Hz through 8K/ 60 Hz, including 4K/120 Hz High Frame Rate. When used in stand-alone applications, a mini OLED screen displays the source selected, resolution, bit rate, color space, and FRL version of TDMS.
STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters. The Murideo MU-STIX-A onboard display physically corroborates source information parameters when connected to the HDMI output of a receiving device.
For stand-alone use, the MU-STIX-A is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required. Equipped with one or more MU-STIX-As enables system signal throughput confirmation for display supporting electronics that are installed inside cable and device management in-wall storage enclosures, eliminating potential duplicate labor before the display is mounted.
Low-cost, flexible analyzer
Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant signal analyzer.
Analyze signals up to 8K
Resolution timings at 8-, 10-, and 12-bit color depths, in RGB 4:2:0, 4:2:2, and 4:4:4 color spaces.
Signal detection
Automatically detects and logs signal changes, sync losses and signal loss time.
OLED color screen
An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.
Detailed display information
Displays audio information, including audio type, sampling rate and number of channels.
Low power draw
Allows device to be powered over USB-A (from AVR or display) or via USB Type-C from mobile device.
Ultra-compact form factor
The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.
AV Pro Edge
HDMI
MU-STIX-A

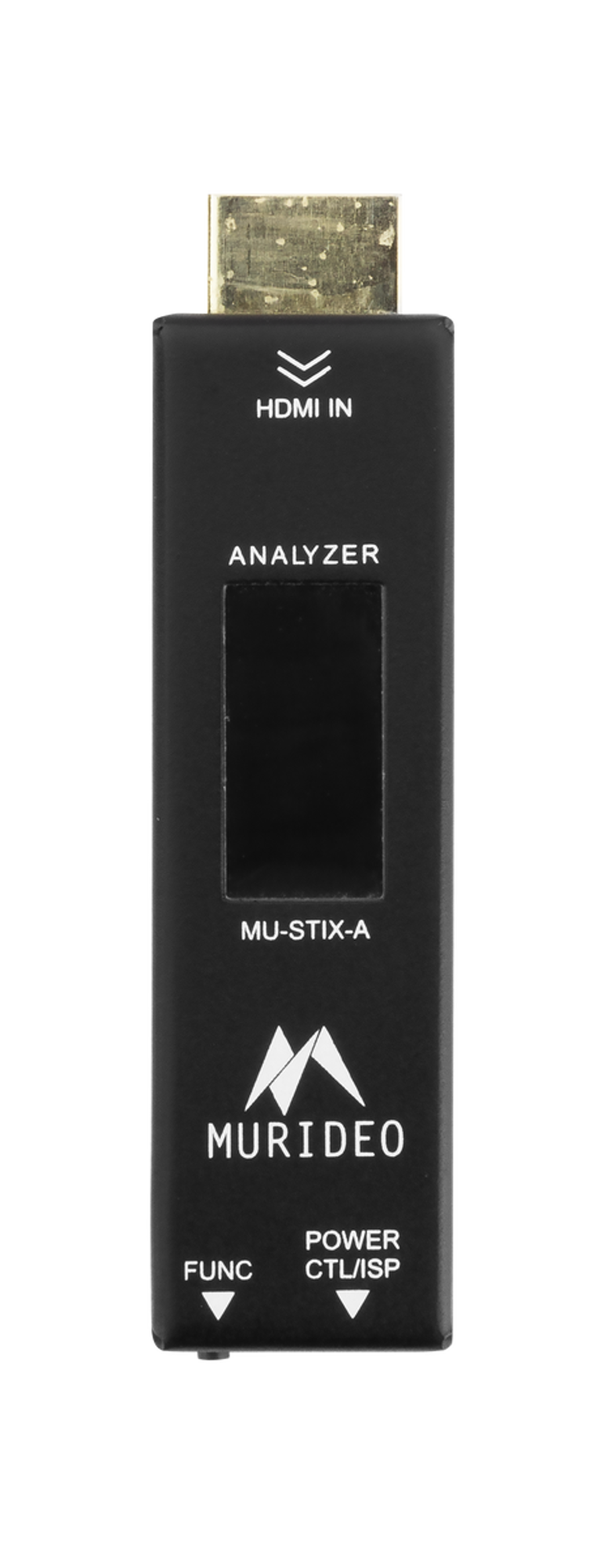

The MU-STIX-A is a thumb drive-sized HDMI pattern analyzer designed for Murideos STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.
