AVPro Edge MU-FXHD-KIT-8K

Generator

• HDMI 2.1a (1.4, 2.0b compatible)
• Hot Plug Detect and HDCP indication LEDs
• Selectable HDCP helps to determine if source, repeaters and display will successfully handshake
• EDID management functionality
• 40Gbps maximum video bandwidth
• 720/60p up to 8K/60 4:2:0, 10-bit
• VESA 640×480/60 up to 1680×1050/60
• 4K 10, 12, 16-bit support
• HDR injector with metadata management
• Audio confidence testing, 2-8 channels
• Optimized ergonomics with 2 LCD color display
• Portable / battery operable
• 7.4v Lithium-ion 2600mAh internal rechargeable battery

Analyzer

• HDMI 2.1a (1.4, 2.0b compatible)
• HDCP testing
• Analysis of any HDMI signal up to 40Gbps
• Cable test copper-based HDMI cables up to 40Gbps
• Visually confirm Active Optical Cables
• View content up to 40Gbps
• 40Gbps maximum bandwidth
• EDID analysis including read or write functions
• Analyze HDR content with metadata
• Audio confidence testing, 2-8 channels
• Optimized ergonomics with 2 LCD color display
• Portable / battery operable
• 7.4v Lithium-ion 2600mAh internal rechargeable battery

• Perfect for Field Testing
• Compliant with VESA & HDMI versions up to 2.1a
• Cable Test Confirmation up to 40Gbps (copper) with visual
• Verification for Active Optical Cables
• Full HDR, HDR10+, and HLG Support
• HDCP & EDID Testing

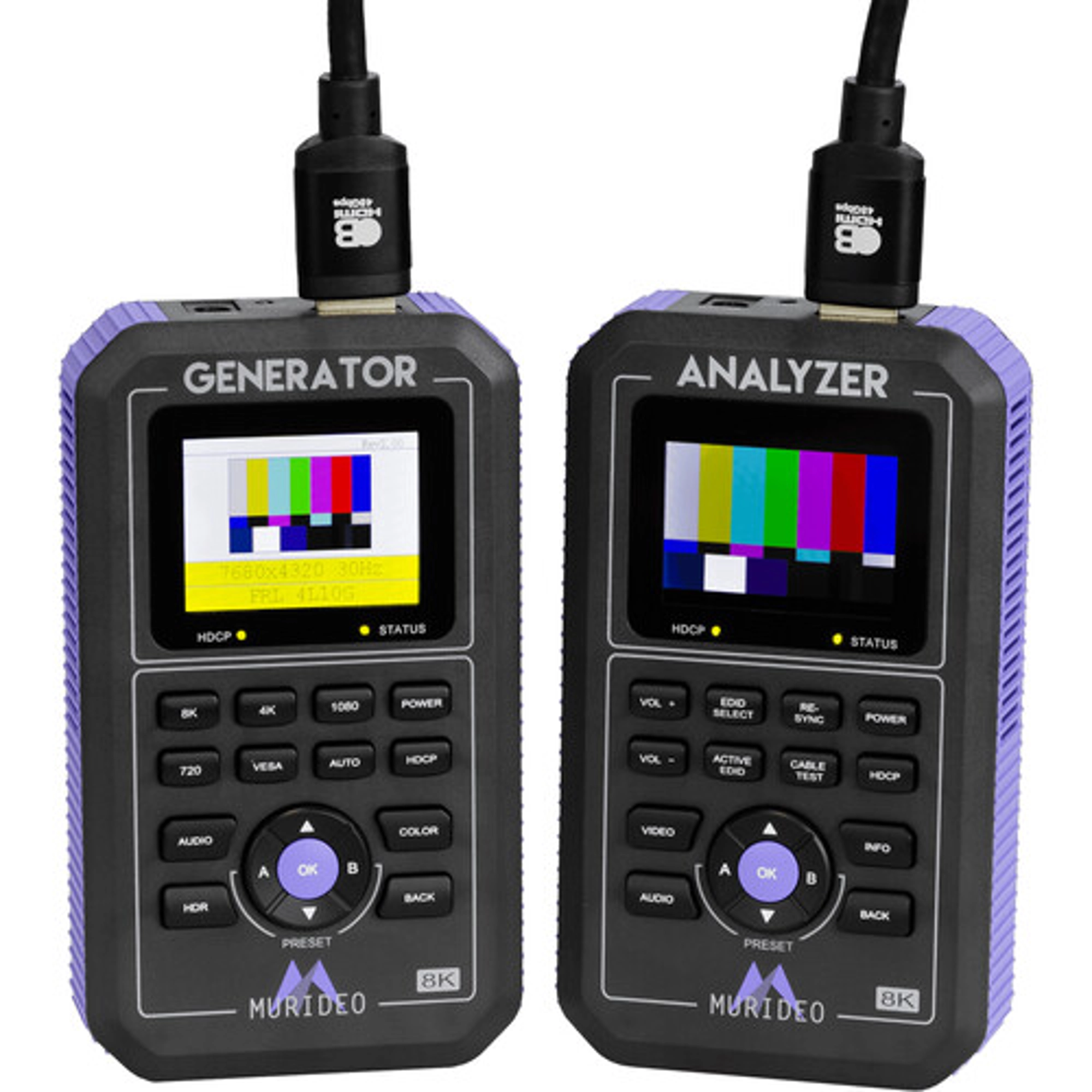

8K Fox & Hound Testing and Troubleshooting Kit

MU-FXHD-KIT-8K

Murideos 8K Fox & Hound was developed to be a definitive, all-inclusive, generator and analyzer kit for use by integrators worldwide to determine why audio-video signals fail to reach intended endpoints. NextGen-ready with 40Gbps bandwidth capabilities, each unit hosts a unique set of test tools for thorough system signal flow generation and analysis. It is not uncommon for technology categories to vary within an installation ecosystem, ranging from 1080p video walls, 4K projectors, up to 8K OLED displays where critical video evaluations are assessed. With performance that belies its compact size and look-twice affordability, the inimitable 8K Fox & Hound kit is an easy to use troubleshooting solution that will quickly offset its level of investment with labor hour savings.

Never again experience a feeling of hopelessness on-site when a relentless regimen of trial and error fails to resolve an inconsequentially simple setback.

The Murideo 8K Fox & Hound kit quickly tracks the origin of any conceivable in-field issue and short of device failure, leads you on the path to resolution. Simply put: If not in your tool kit, the 8K Fox & Hound should be on your wish list.

The 8K Fox & Hound On The Hunt:

Substitute the generator for a source device while also connecting the analyzer to the signal path leading into the display. The units will send and collect data that travels through system infrastructure. The Fox & Hound generator is capable of sending a pattern duplicating source resolution from 720p up to 8K. If the endpoint fails to display the sent signal, move the analyzer back through the device chain sequentially, until the chokepoint is discovered. With guesswork eliminated, time spent is specifically devoted to the solution, with verification in minutes.

Its an old adage but wholly applicable: You cant afford to be without an 8K Fox & Hound.
