Audix ADX40

• Polar Pattern Cardioid
• Sensitivity 5 mV / Pa @ 1k
• Maximum SPL =130 dB dB
• Length 11.81 in
• Transducer Type True Condenser dynamic / electret
• Frequency Response 40 Hz – 20 kHz
• Output Impedence 250 O
• Connector XLRM
• MaxDiameter 0.47 in

• Excellent for distance miking
• Small, lightweight, low profile
• Available in 2 polar patterns
• Available in black or white
• Overhead mic for choir, group vocal, orchestra, theatrical

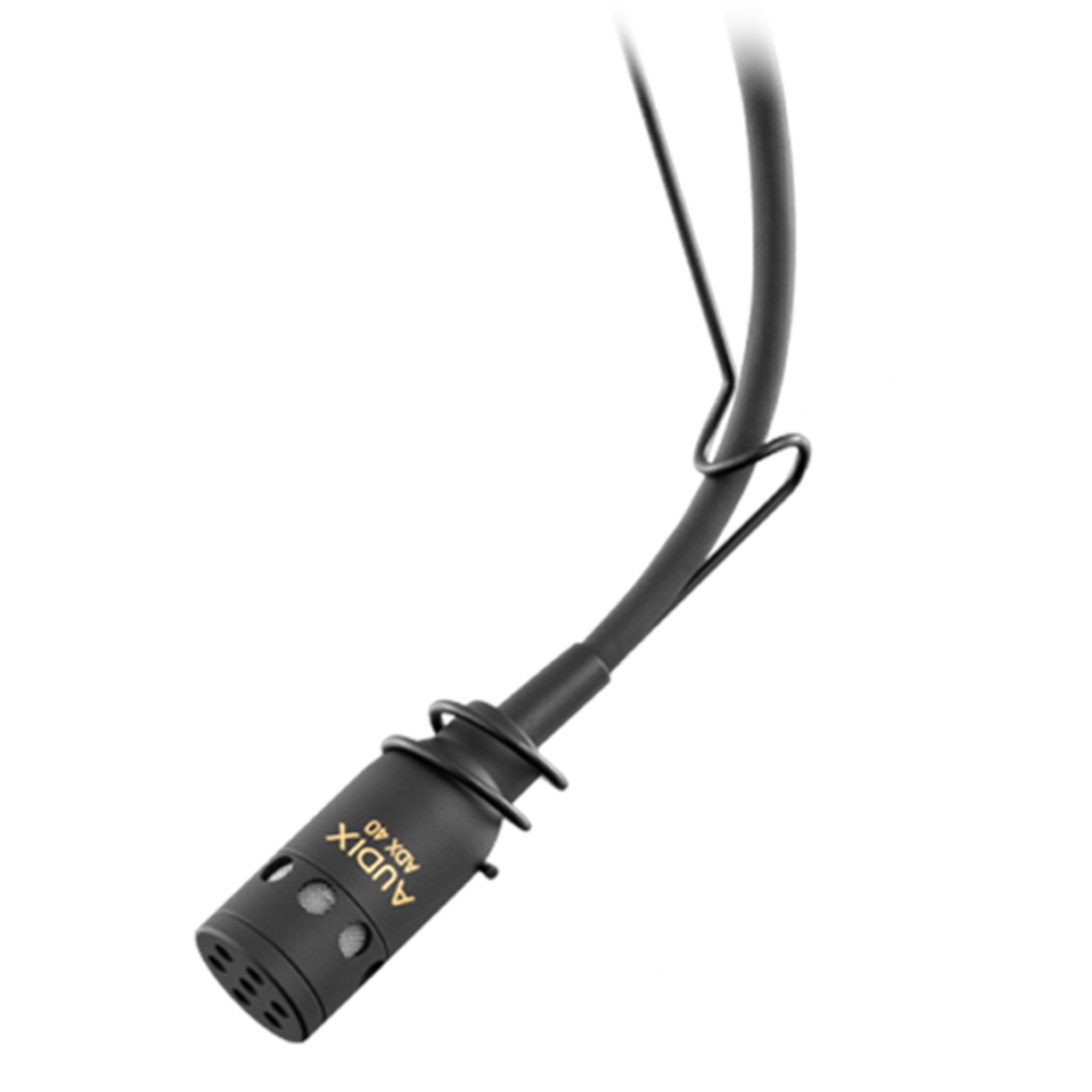

Miniature Hanging Microphone

ADX40

The ADX40 is a miniaturized condenser microphone designed to hang from an overhead position for applications such as group vocals, choir, theatrical production, and room ambiance.

Having a uniformly controlled cardioid polar pattern, the ADX40 helps isolate the area or section being miked from other vocals or instruments on stage. The ADX40 is also available in a hypercardioid polar pattern for tighter pick-up control. With a wide frequency range of 40 Hz 20 kHz, the ADX40 provides natural sound with an exceptional sound response.

The ADX40 miniature hanging condenser microphone is supplied with an attached 30 shielded cable, external windscreen, wire hanger for positioning, and phantom power adapter. 9 52 V phantom required.
