Atlas IED SM12SUB70-W

• Frequency Response 45Hz – 125Hz
• Sensitivity 89dB
• Power Taps 7.5, 15, 30, 60
• Speaker Type Sub
• Dispersion Omni
• Height 19″ (483mm)
• Width 14 1/2″ (368mm)
• Depth 14 1/16″ (357mm)
• Shipping Weight 26 lbs (11.79 kgs)
• Warranty Period 60 months from date of purchase

• Multiple “-20 Inserts, Provide Fly Points for a Variety of Mounting Configurations
• Includes Internal, High Efficiency, 60 Watt 70.7V/100V Transformer (May Be Bypassed for 😯 Operation)
• Barrier Strip Input for 70.7V/100V/8O or Parallel 4 Pole Speak-ON™ Input,
• (8O Only)
• 250W RMS Power Handling
• Unique Input Panel Allows Use of Standard 4″ Square Box Cover for Applications Where Flex Conduit is Required for Termination
• Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly
• Optional Bracket for Wall Mounting
• Omnimount™ Compatible

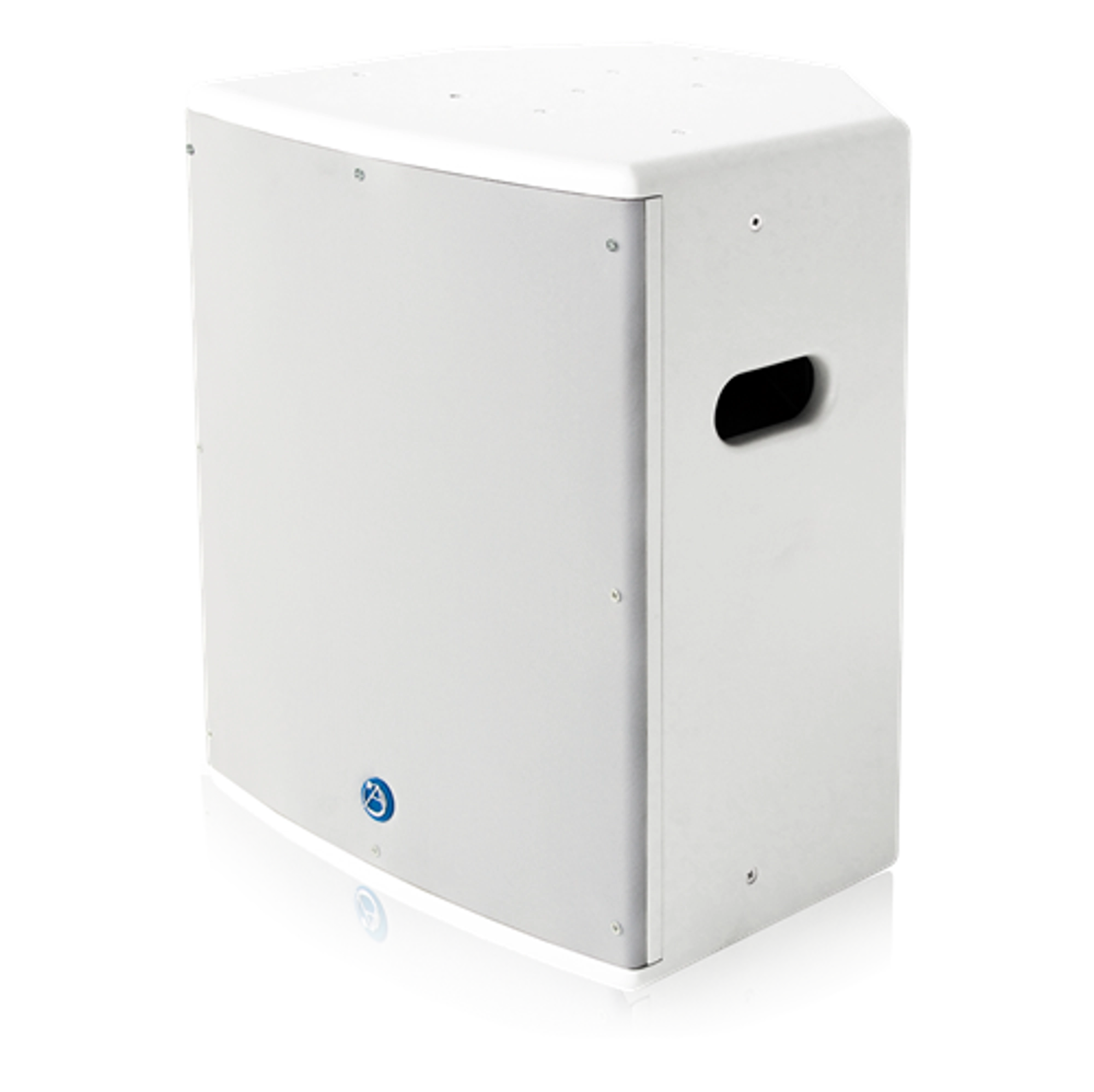

12″ Surface Mount Subwoofer with 60-Watt 70V/100V Transformer – White

SM12SUB70-W

The AtlasIED SM12SUB70 is designed for 😯 and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple “-20 inserts to allow easy suspension or wall mounting.

The SM12SUB70 includes a built in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12″ woofer housed in multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the speaker.

A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems.

(Unit is also 😯 compatible).
