Atlas IED EZHD72W

• Frequency Response 100Hz – 10kHz
• Sensitivity 97dB Peak, 94dB Average
• Power Taps .25, .5, 1, 2, & 4 Watts
• Speaker Type Treated Paper
• Dispersion 105°
• Depth 2 7/8″ (7.30 cm)
• Diameter 8″ (20.32 cm)
• Shipping Weight 5.17 lbs (2.35 kgs)
• Warranty Period 60 months from date of purchase

• Equipped with 25/70.7V Transformer
• Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
• 51-8 Style Grille with White Finish

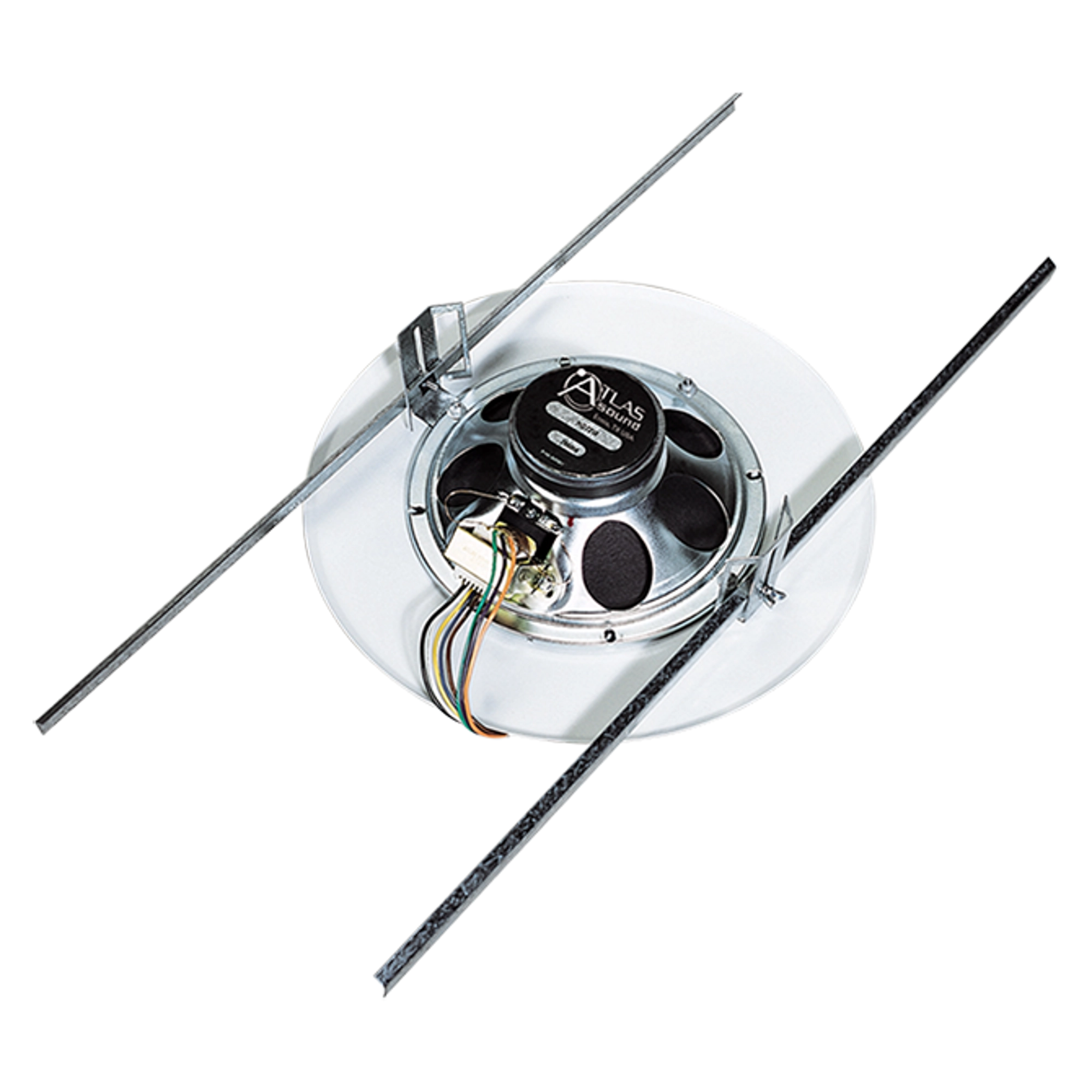

8″ In-Ceiling Speaker with 4W 25V/70V Transformer, 51-8 Baffle, and Drop Tile Support Rails

EZHD72W

The EZ Mount Support System transfers the composite weight of the speaker and baffle to the ceilings support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.

The support rails are heavy-gauge CRS and finished in a galvanized coating.
