Atlas IED E408-250

• Plate Size 2 gang
• Plate Type Stainless Steel
• Power Rating 250 W
• Total Attenuation 15dB
• Height 4.56″ (11.58 cm)
• Width 4.5″ (11.43 cm)
• Depth 2.51″ (6.38 cm)
• Weight 1.5 lb (0.68 kgs)
• Shipping Weight 1.79 lb (0.81 kgs)
• Safety Listed UL813, UL2043
• Warranty Period 60 months from date of purchase

• 1.5 dB Steps for Sound Masking and Other Precision Applications
• 250 Watt Power Handling
• Wall Plate Mount Only
• For Rack Mounting Use the E408-250-RM

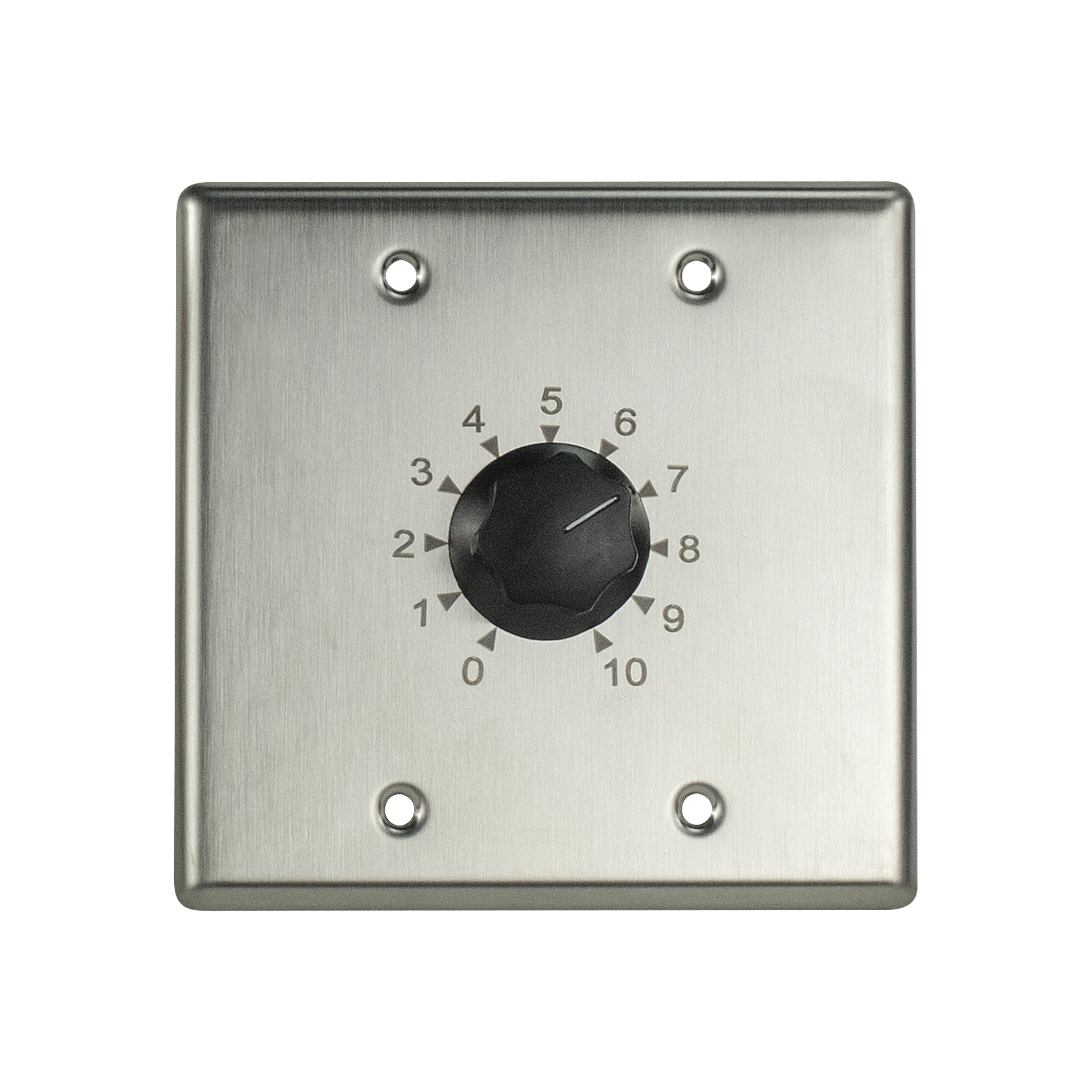

Precision, Plate Mounted 70.7V 250W Attenuator

E408-250

The E408-250 is specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. It employs a ten-position, non-shorting rotary switch without stop. The attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
