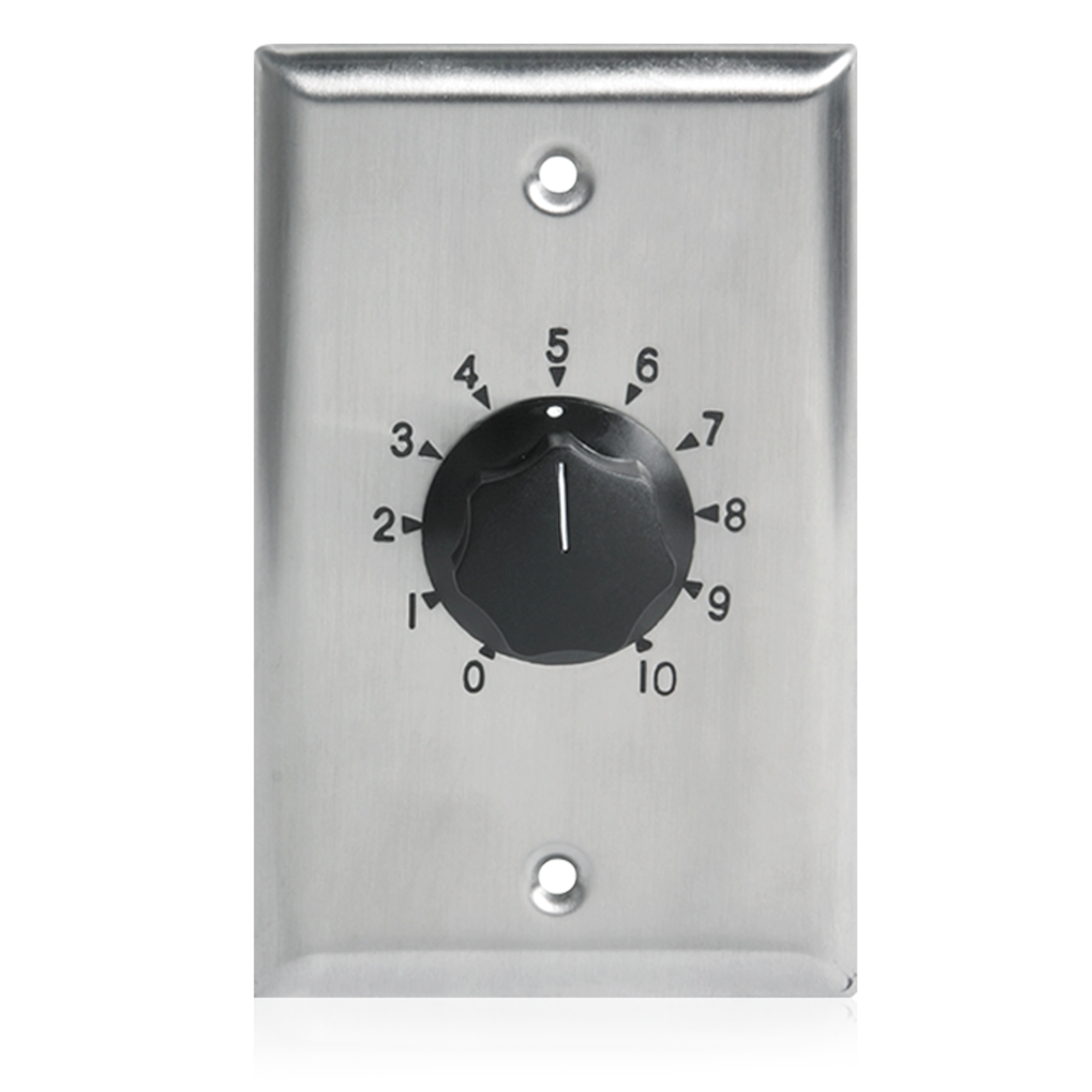

Atlas IED AT10PA
SKU: ATS-AT10PA
MPN: AT10PA
Description
10w 70v Volume Attenuator Deluxe Priority
Send to a friend!
SKU: ATS-AT10PA
MPN: AT10PA
10w 70v Volume Attenuator Deluxe Priority
Send to a friend!
Plate Size1 gang Plate TypeStainless Steel Power Rating10W Total Attenuation33 dB Height4 1/2″ (11.43 cm) Width2 3/4″ (6.985 cm) Depth2 1/8″ (5.3975 cm) Shipping Weight1.00 lb (0.45 kgs) Safety Listed813, 2043 Warranty Period60 months from date of purchase
Priority paging feature by-passes the attenuator dial setting to provide full program level to the speakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
Mount into Most 1-Gang E.O. Boxes Priority Feature Compatible with Atlas AA120M Amplifiers Priority Paging Feature By-Passes the Effect of the Attenuator The SPDT Relay is Operated with 24 VDC at 10mA Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
Atlas
Volume Attenuator
Priority paging feature by-passes the attenuator dial setting to provide full program level to the speakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
